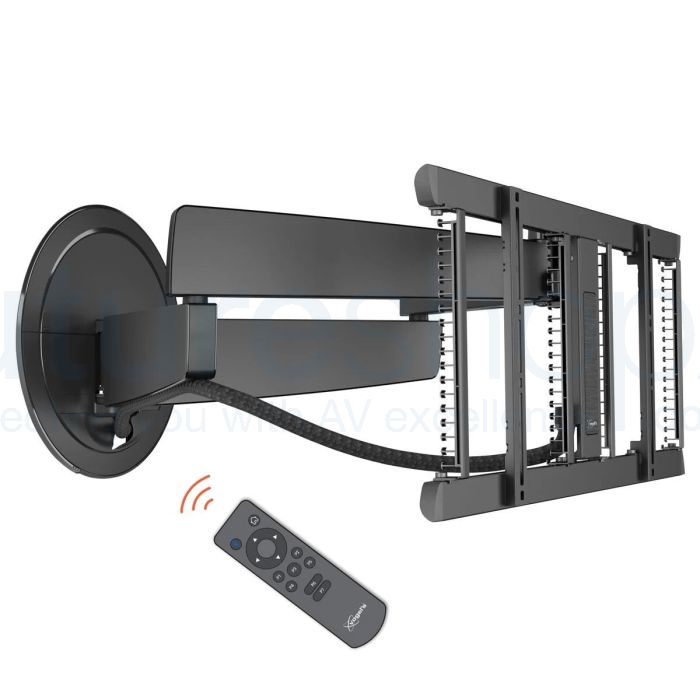

Vogels TVM7675 Motorised TV Wall Mount
Motorized TV mount with unmatched design
The SIGNATURE MotionMount TV wall mount is the absolute top model from Vogel's. The motorized TV wall mount automatically turns toward you when you turn on your TV. The refined design blends seamlessly with large, ultra-slim TVs, such as OLED and QLED TVs. You can operate the wall mount via voice, app or remote control. The wall mount is suitable for screens from 40 to 77 inches in size and with a maximum weight of 35 kg. You can turn your TV up to 120° for maximum viewing pleasure.
Most advanced TV wall mount
This Vogel's MotionMount TVM 7675 TV wall mount from the SIGNATURE series is the most advanced TV wall mount in the Vogel's range. In terms of design, technology and experience, this motorized TV wall mount is simply superior.
Ultimate ease of use
There's no need to get up from your comfortable seat. As soon as you turn on your TV, the TV wall mount automatically moves to the preset position. Would you like to turn the screen? Use your voice (Siri Voice Control, based on Siri short cuts) to move your screen to one of your personal preferred positions. Or operate the TV mount easily using the remote control or via the free downloadable MotionMount app on your phone or tablet (iOS or Android). In total, you can create and set 7 different preferred positions.
Ideal for mounting in a cabinet or alcove
The SIGNATURE MotionMount TV wall mount has a large forward movement range thanks to 4 long, strong support arms. Motorized movement allows you to move your TV forward up to 72 cm. This also makes the TV wall mount suitable for mounting in a cabinet or alcove.
Cables and connections neatly concealed
The Cable Inlay System (CIS®) in the support arms connects, protects and hides the cables between the wall and your TV. Furthermore, the TVM 7675 TV wall mount has integrated cable holders. These allow you to store almost 4 metres of cable behind your TV and keep it neatly out of sight behind a cover plate. You also have the option to conceal cables in the wall by passing them through a slot in the TV wall mount's wall plate. An HDMI cable (2 metres) is included to make the MotionMount work automatically when turning the TV on and off. In addition, we supply an infrared remote control with receiver in the package and you can download the free DrillRight™ AR App to mark out the first drill hole.
Straight as a die thanks to 3D-Leveling™
Mount your TV perfectly level after installation, vertically, horizontally and in depth. Very easy. Even when mounted on an uneven wall, alignment is no problem thanks to Vogel's 3D-Leveling™.
Extremely safe
The SIGNATURE MotionMount TV wall mount is an extremely secure mounting system. For example, the Electronic Screen Protection System (ESPS ®) prevents your TV from hitting the wall. The wall mount is TÜV certified and tested up to three times its maximum weight capacity. And we test all of our wall mounts for longevity and endurance.
Self installation
You can easily install the motorized TVM 7675 TV wall mount yourself. Just follow the steps in the enclosed Quick Install Guide. Or consult the detailed manual and installation video online. You can get started right away, everything you need to mount your system properly is in the package: a drilling template, screws and Fischer® DuoPower plugs. And with the free DrillRight™ AR App, you can easily mark out your first drill hole. After installation, simply level your TV.
Conceal cables in a matching column
You will also want to hide the cables along the wall stylishly, of course. You can do that using the aluminium cable column TVA 7000 in white or black. It connects seamlessly to the wall plate of the SIGNATURE MotionMount TV wall mount. So, it's the ideal solution.
Optional extras:
- Bluetooth remote control
- Thin 4.5-metre HDMI cable (when MotionMount is used in combination with One Connect Box)
Features
- Turns automatically and through Siri Voice/Shortcuts, app or remote control
- Our most innovative design to date - stylish in any interior
- Fully integrated Cable Inlay System (CIS®) - Connect, protect and hide your cables from wall to TV
- 7 programmable presets
- Make your mounting system complete with a matching aluminium cable column
Specification
- Series: SIGNATURE
- Certifications: CE
- TÜV certified: Yes
- Min. screen size (inch): 40
- Max. screen size (inch): 77
- Hole pattern (VESA)
- 200 mm x 100 mm
- 200 mm x 200 mm
- 200 mm x 300 mm
- 300 mm x 200 mm
- 300 mm x 300 mm
- 400 mm x 200 mm
- 400 mm x 300 mm
- 400 mm x 400 mm
- 600 mm x 200 mm
- 600 mm x 300 mm
- 600 mm x 400 mm
- Min. distance to the wall (mm): 77
- Min. distance to the wall (inch): 3.03
- Max. distance to the wall (mm): 715
- Max. weight load (kg): 35
- Max. weight load (lbs): 77.16
- Turn: Forward and turning motion (up to 120°)
- Number of pivot points: 4
- Colour: Black or white
- What's in the box
- Wall mount
- Interface
- Wall mounting kit with fischer® Duo Power plugs
- TV fasteners kit
- Quick Installation Guide
- DrillRight™ AR app
- Drilling template
- Allen key
- Cable sleeve
- Infrared remote control
- AC power adapter
- HDMI cable - 2M
- Cable management: Integrated cable management
- CIS® Cable Inlay System: Cable sleeve
- App Controlled: Yes
- Guarantee on Electrical Parts: 2 years
- Remote controlled: Yes
- Motorized: Yes
- Voltage: 100-240V, 50/60 Hz
- Product size: L
