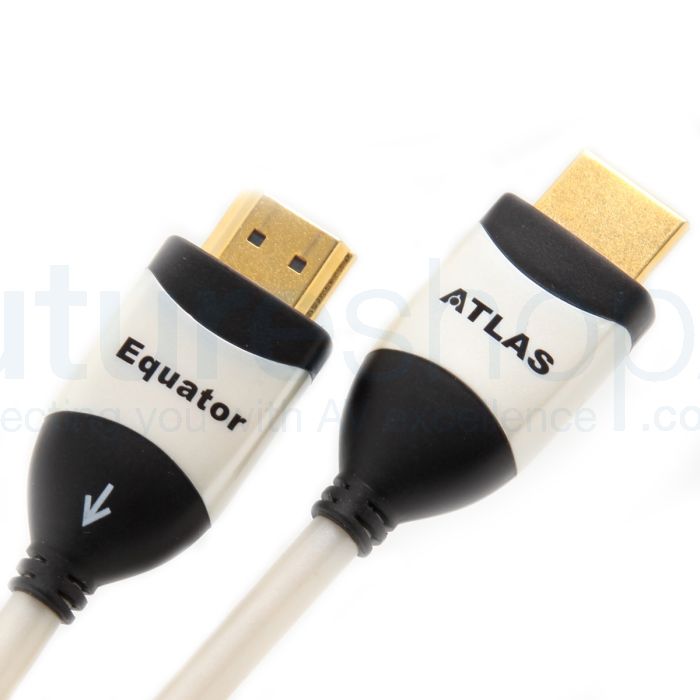

Atlas Equator High Speed HDMI with Audio Return and Ethernet
£0.00 As low as £0.00 £0.00
SKU
Atlas Equator HDMI
5 Years
New
24 hours
Out Of Stock
A high speed ‘active’ digital interconnect developed for optimal bandwidth over lengths of up to 7m.
Atlas Equator High Speed HDMI with Audio Return & Ethernet
A high speed ‘active’ digital interconnect developed for optimal bandwidth over lengths of up to 7m.
The Equator High Speed HDMI with Ethernet was specifically designed by Atlas’ own digital engineers to deliver optimal bandwidth with maximum fidelity In today’s advanced home cinema systems, they consider sound quality is just as important as video performance in creating an immersive user experience.
The Equator utilises silver-plated high purity Oxygen Free Copper (OFC) conductors insulated by a low loss foamed Polyethylene dielectric to deliver fast, accurate signals between source and destination components. A unique conductor topology and its precision length-matched construction enables the Element HDMI to achieve consistent data transmission and maintain constant impedance – making it fully compliant with the latest 4k specifications and avoiding the timing issues which potentially degrade performance.
The Equator ‘active’ High speed HDMI with Ethernet lets us extend the cable lengths up to 7 metres without the signal being adversely affected, because the ‘active’ components reduce the error correction processing required by any digital receiver. Lower correction rates ensure better sound and better video.
Features :
- Atlas HDMI Plugs
- Silver Plated OFC Conductors
- PEF Dielectric
- Multi-Core Construction

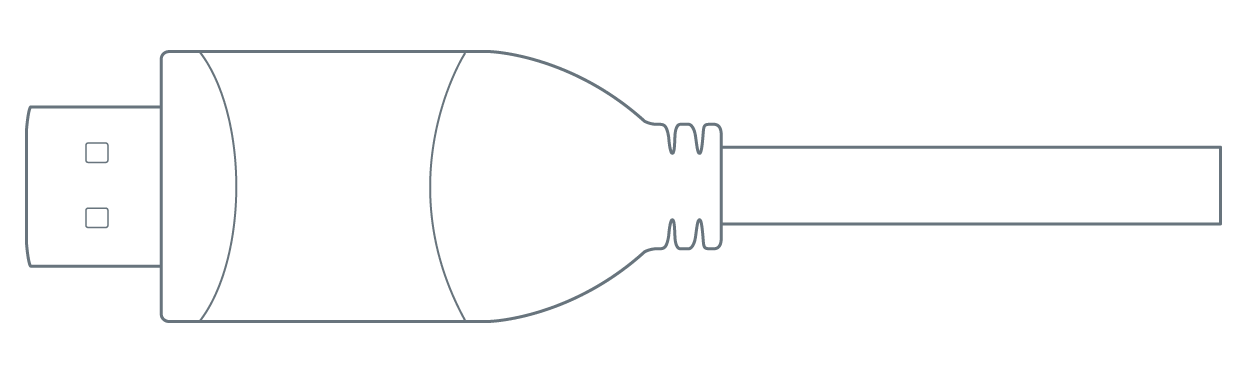

Atlas HDMI Plugs
Precision one piece die-cast metal headshell for improved cable retention, 360° screening for improved RF integrity.
Silver Plated Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
HDPE (High Density Polyethylene) has a more close-packed structure compared to its more flexible cousin LDPE (Low Density PE) and excels in its durability
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Multi-Core Construction
Optimised conductors enclosed within a non-conducting screen. The configuration minimises noise and interference.
Specification :
- HDMI 2.0 Compliance
- Supports 4k UltraHD, HDR, HDCP 2.2, Blu-ray UltraHD, 3D, 4.4.4 Colour, etc.
- Construction : 19 conductor multicore cable: Active
- Material : Silver Plated OFC (Data), OFC (Power)
- Dielectric : PEF (Data), HDPE (Power)
- Screen : OFC, 85%
- Shielding : Triple 100% Mylar™ (Data)
- Outside Diameter : 5.5mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- HDMI 2.0 Compliance
- Supports 4k UltraHD, HDR, HDCP 2.2, Blu-ray UltraHD, 3D, 4.4.4 Colour, etc.
- Construction : 19 conductor multicore cable: Active
- Material : Silver Plated OFC (Data), OFC (Power)
- Dielectric : PEF (Data), HDPE (Power)
- Screen : OFC, 85%
- Shielding : Triple 100% Mylar™ (Data)
- Outside Diameter : 5.5mm
