Atlas Hyper Bi-Wire Speaker Cable - 1.5m Pair - Spade to Spade Ex Demo
£136.60 Special Price £109.99 £91.66
SKU
Hyper Bi 1.5m SS ExDemo
Free UK Delivery
5 Years
New
48 Hours
Developed by Atlas in consultation with a number of leading audio manufacturers. A sophisticated cable engineered to offer a higher level of transparency than products typically supplied in ‘single-brand’ systems.
promotional_banner_3
promotional_banner_3
Atlas Hyper Bi-Wire Speaker Cable - 1.5m Pair - Spade to Spade Ex Demo
Please note: this speaker cable is terminated with 2 Atlas Spade Plugs to 4 Atlas Spade Plugs. The cable is in mint condition and was only used once for a demo.
Developed by Atlas in consultation with a number of leading audio manufacturers. A sophisticated cable engineered to offer a higher level of transparency than products typically supplied in ‘single-brand’ systems.
Atlas are regularly asked by users of ‘single-brand’ systems from companies such as Naim and Linn if Atlas cables could improve their system without sacrificing its essential character. It’s relatively easy to deliver an improvement in a specific area, but more difficult to create a cable that improves on overall detail, accuracy and open-ness without losing the signature speed and character of these systems.
All Atlas cables are designed to impose as little of any inherent character as possible, achieved through careful selection of materials and construction methods, but they feel this latest generation Hyper cable is exceptionally transparent, allowing the equipment characteristics to be conveyed intact. The cable employs conductors comprising 72 0.25mm² high-purity OFC (Oxygen Free Copper) strands encapsulated within a carefully selected high-efficiency PTFE (Teflon™) dielectric coating. The resultant conductor is embedded within an anti-vibration filler and finished in the Hyper gloss black sleeve.
Features :
- Very high purity (99.9999%) OFC (Oxygen Free Copper) copper-only conductors
- 3.5 sq.mm² conductors
- PTFE Dielectric
- Multi-Core Construction
- Professionally Terminated by Future Shop Engineers
Atlas Gold Plated Z Plugs
The Atlas Z plug has stood the test of time. Using beryllium copper for the contact area, It's designed to make a 100% contact within the 4mm female socket. The body is made from copper and it's available for home assembly with grub screws to make contact with the conductors. When factory fitted or fitted by an Atlas appointed custom cable centre, they're cold welded under pressure in order to amalgamate the conductors to the plug in an air tight seal. The outer sleeve is finished in black coloured ABS or in a turned brass with a fine oven applied powder coat finish. The Atlas Z plug is justifiably considered to be one of best 4mm plugs available.
- Low resistance
- High conductivity
- 80% copper with beryllium 4mm section giving 100% contact
- Corrosion resistant
- Accepts conductors up to 5mm diameter
- Solder free for a cold weld air tight interface between the plug and conductor or grub screw contact for DIY enthusiasts
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PTFE Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
PTFE (Teflon™) is usually applied at higher temperatures and in combination with OFC conductors. OCC materials don’t like high temperatures (soldering, applying the dielectric etc) so application of a low temperature PTFE (Teflon™) or FEP work best with OCC conductors. This is especially critical at smaller conductor sizes.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Multi-Core Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
Specification :
- Please note, you need to enter a quantity of 2 for a pair
- Construction Multi-core
- Material : Very high purity (99.9999%) OFC (Oxygen Free Copper) copper-only conductors
- 3.5 sq.mm² conductors
- Dielectric : PTFE (Teflon™)
- Capacitance : 53.52 pF/m
- Inductance : 0.592 µH/m
- Resistance : 0.0049 Ohms/m
- VOP : 0.72
- Outside Diameter : 8.5mm
Elite Reference Series Plugs: Next-Level Audio Connectivity
The Elite Reference AirTite plugs offer significant advantages over traditional screw-based speaker cable plugs. Unlike screw designs, which may loosen over time and potentially impact the connection and sound quality, the Elite Reference plugs use a cold-weld method to create a secure and reliable bond between the cable and the plug. This helps maintain consistent performance and minimises signal loss, supporting clear and high-quality audio. With a ferrule-free design for direct signal transfer, beryllium copper cores, and 24K gold plating, they are engineered for enhanced conductivity and long-lasting durability. The addition of protective metal barrels further reinforces their professional-grade construction, making them an excellent choice for those who value dependable audio connections.
The Elite Reference plugs are engineered with additional advantages that make them stand out:
- AirTite Ferrule-Free Design - Unlike traditional plugs that use ferrules, the Elite Reference plugs opt for direct conductor-to-plug contact, removing any potential barriers to signal transfer. Featuring four different inlet sizes, these plugs are perfectly tailored to fit various cable gauges with a cold-weld, air-tight design, that eliminates soldering, reduces resistance, prevents oxidation, and enhances durability.

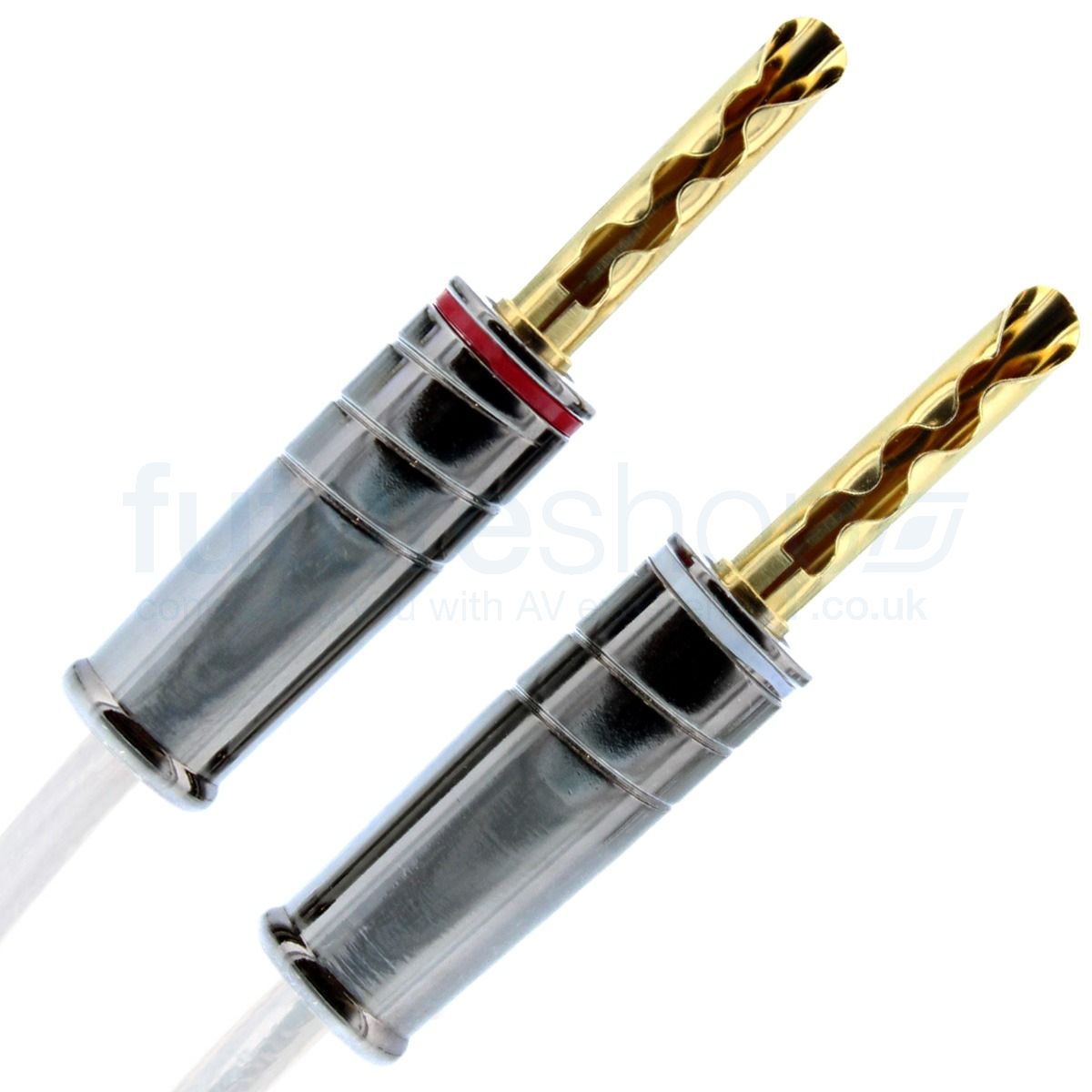

- Beryllium Copper Core with 24K Gold Plating - The banana plugs feature a beryllium copper core, known for its exceptional mechanical strength and conductivity. This material resists corrosion and retains its shape, maintaining a tight and reliable connection over time. The 24K gold plating ensures a smooth, high-quality signal path while adding durability for years of consistent performance.
- Dual Functionality - Designed as BFA and banana plug compatible the Elite Reference banana plugs provide greater versatility, making them suitable for a broader range of speaker terminals. This added functionality ensures compatibility with high-end Hi-Fi setups and equipment.

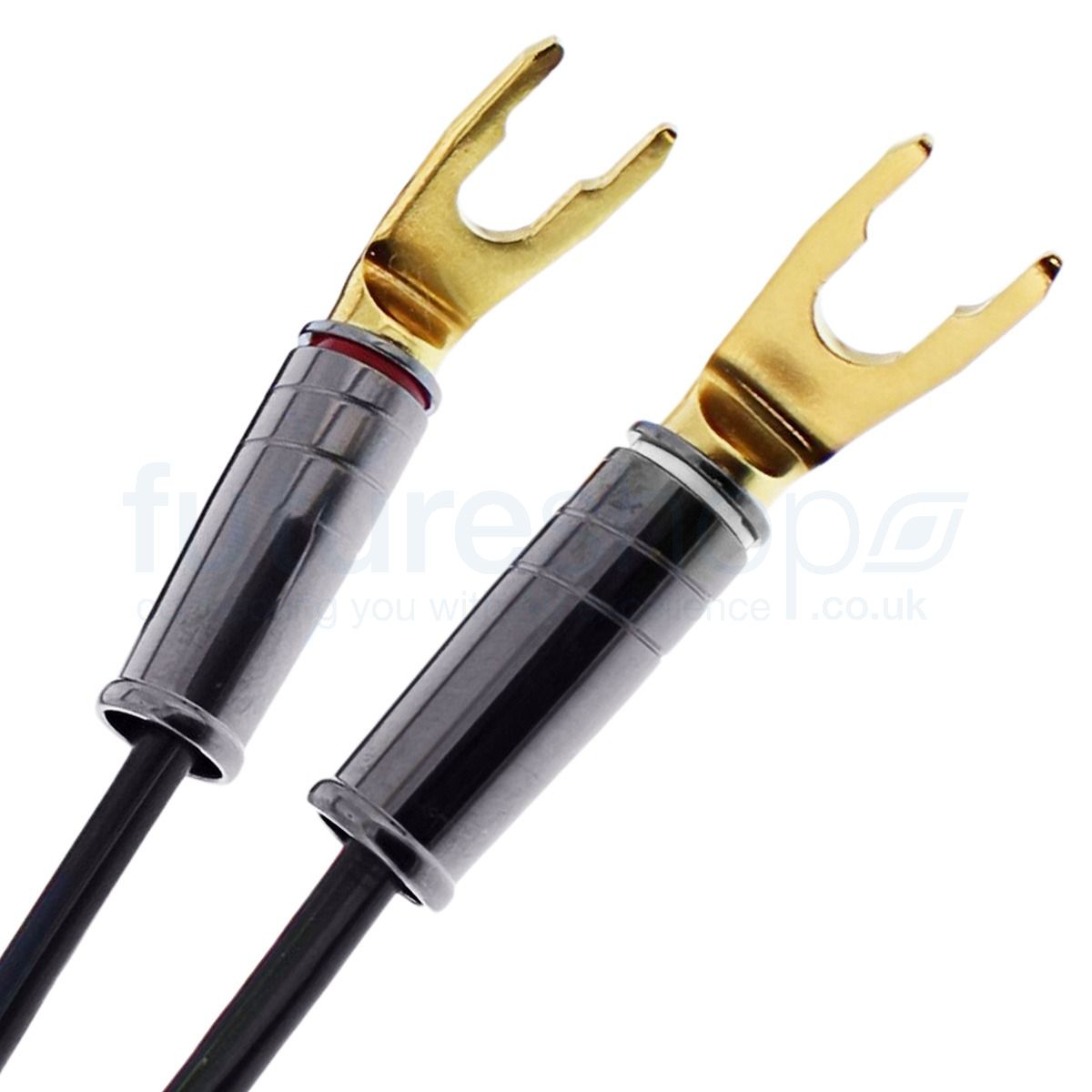

- Silver Core Spade Plugs with Metal Barrel Protection - The spade plugs in the Elite Reference Series incorporate a silver base plated with 24K gold, offering superior conductivity compared to many alternatives. Unlike other spade plugs, the Elite Reference spades also include a durable metal outer barrel, providing additional protection and a premium finish.
- The Elite Reference plugs are manufactured in Taiwan, a region renowned for its precision engineering and high-quality manufacturing standards. This ensures that every plug is built to exact specifications, offering exceptional consistency, reliability, and performance.
How to Order
From the dropdown menus' above, simply select the length of cable, the type of plugs required at the ‘Amplifier end’ and ‘Speaker end’ and click on the 'Add to Basket' button to add the item to your basket. Your cable will be dispatched as soon as it has been made by Future Shop's or the manufacturer’s engineers and has completed the specified burn-in process (if any), subject to Future Shop’s Terms & Conditions and stock availability.
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Please note, you need to enter a quantity of 2 for a pair
- Construction Multi-core
- Material : Very high purity (99.9999%) OFC (Oxygen Free Copper) copper-only conductors
- 3.5 sq.mm² conductors
- Dielectric : PTFE (Teflon™)
- Capacitance : 53.52 pF/m
- Inductance : 0.592 µH/m
- Resistance : 0.0049 Ohms/m
- VOP : 0.72
- Outside Diameter : 8.5mm
