Atlas Hyper DD 2 XLR to 2 XLR Audio Cable Pair
As low as £866.50 £722.08
SKU
Atlas Hyper DD Balanced Audio
5 Years
New
24 hours
The latest generation Hyper dd XLR interconnect offers a sophisticated, evenly balanced sound which draws you into the musical performance.

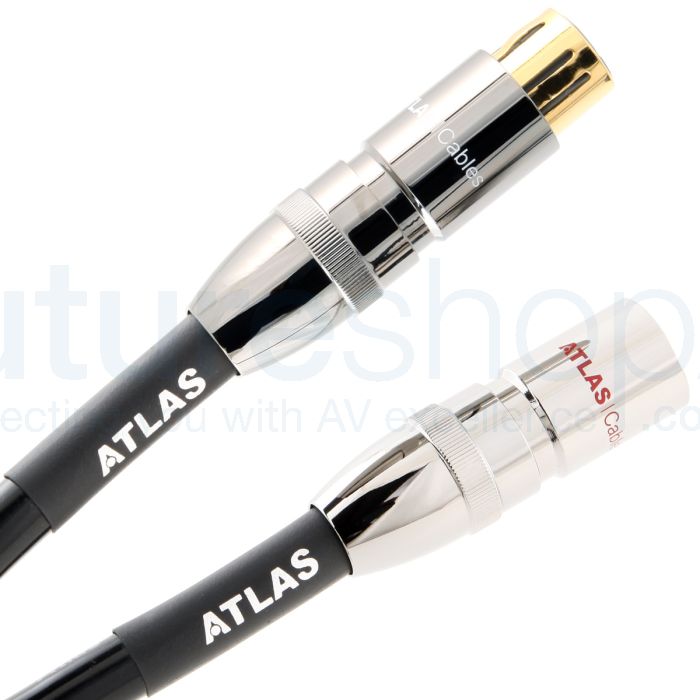

Atlas Hyper DD 2 XLR to 2 XLR Audio Cable
The latest generation Hyper dd XLR interconnect offers a sophisticated, evenly balanced sound which draws you into the musical performance.
The Atlas Hyper DD is constructed with four central multi-core conductors of high purity OCC (Ohno Continuous Casting) copper encapsulated within a low-loss foamed Polyethylene dielectric, with excellent immunity to interference and noise, making it ideally suited to longer cable runs.
The cable is terminated with Atlas' low-mass solder-free XLR plugs. Atlas use cold-weld terminations wherever possible, including their current generation ‘dark Chrome’ XLR connectors. By reducing the number of materials and break points in the signal path, Atlas' objective its to minimise discontinuity and loss in the signal path, resulting in more consistent construction and improved audio performance.
Atlas XLR plugs are wired as follows by default: Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold. If you require a different configuration, please contact us.
Features:
- Atlas XLR Plugs
- OCC Copper Conductors
- PEF Dielectric
- Twin Twisted pair Construction
- Dual Drain ('DD') technology

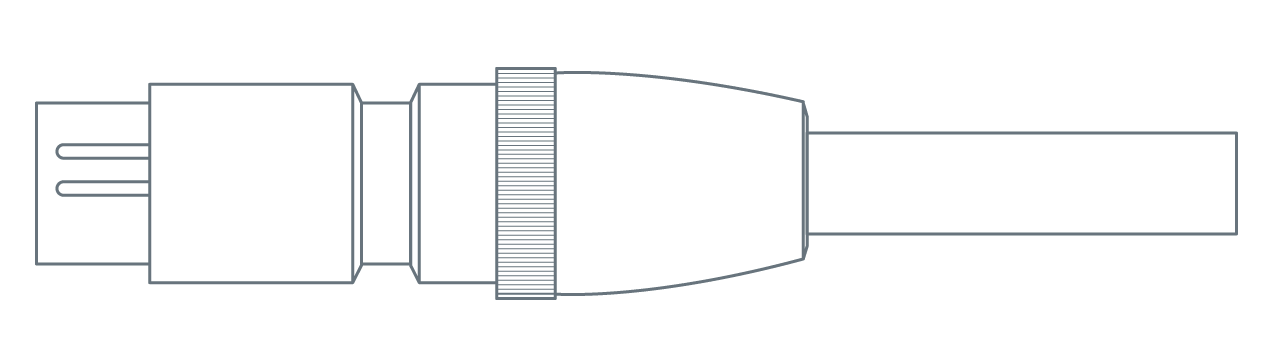

Atlas XLR Plug
The Atlas XLR combines a lightweight aluminium alloy body with precision-fit OFC/OCC connectors and solder-free construction.
Ohno Continuous Casting Copper (OCC Copper)
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long!
The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Twin Twisted Pair Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen. Combined with Atlas' DD (dual drain) system which avoids distortion of the screening braid during assembly – this can change the impedance and therefore the performance of the cable.
Atlas DD (Dual Drain) System
Normally screened cables suffer from screen distortion when they are prepared for production. (If you've ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination). This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.
Atlas' ‘DD’ configuration is based on a simplified version of the techniques they developed for their top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires (each attached to 180° segments of the plug) are inserted between a 100% copper/Mylar™ foil and screen. The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen. The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).
Specification:
- Construction : Twin twisted pair multicore, dual drain
- Material : 6n OCC Copper
- Dielectric : PEF
- Screen : OFC 94.2% – 252 strands
- Capacitance : 71.54 pF/m
- Inductance : 0.542 µH/m
- Resistance : 0.0239 Ohms/m
- VOP : 0.682
- Outside Diameter : 10.0mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification:
- Construction : Twin twisted pair multicore, dual drain
- Material : 6n OCC Copper
- Dielectric : PEF
- Screen : OFC 94.2% – 252 strands
- Capacitance : 71.54 pF/m
- Inductance : 0.542 µH/m
- Resistance : 0.0239 Ohms/m
- VOP : 0.682
- Outside Diameter : 10.0mm
