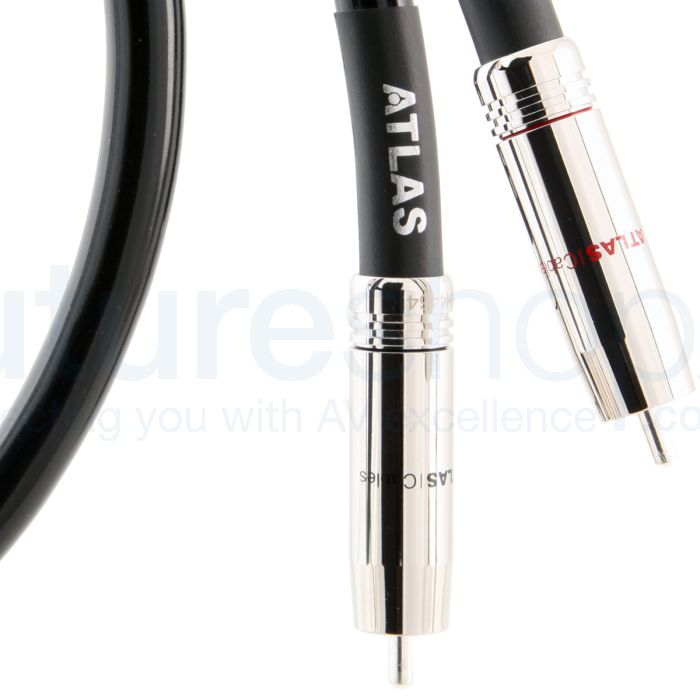

Atlas Hyper DD Ultra 2 RCA to 2 RCA Audio Cable
The latest generation Hyper DD Ultra interconnect offers a sophisticated, evenly balanced sound which draws you into the musical performance.
The conductor in the Hyper DD cable is a solid core OCC (Ohno Continuous Casting) copper core surrounded by multiple bunch-stranded ‘satellite’ conductors of high purity OCC copper, The ‘speed’ characteristic of analogue cables is determined primarily by the dielectric performance of the insulator applied around the conductor, Hyper’s conductors are encapsulated within a high-efficiency gas foamed Polyethylene dielectric, with excellent immunity to interference and noise. Termination is via Atlas' wide-band, low-mass solder-free Ultra connectors – the fewer discontinuities in the signal path, the lower the level of signal degradation and the better the performance.
Features :
- Ultra RCA Plugs
- OCC Copper Conductors
- PEF Dielectric
- Twin Twisted Pair Construction
- Dual Drain ('DD') Technology
Ultra RCA Plug
The Ultra is a wide-band, OCC copper, constant impedance, self-cleaning, solder-free construction RCA plug.
In Atlas' cables, the conductor to plug interfaces are solder free, and the gold-plated conjugate brackets act as the return signal path, helping to reject RFI. Both conjugate brackets (these grip the cable without the adverse effects of compressing it, which can alter impedance) have two asymmetrical leaves which spring open on insertion and wipe clean the signal path. To maintain a clean signal path, simply remove and re-insert them periodically.
The Ultra RCA connectors utilise low-mass non-magnetic connectors to minimise the negative effect of excessive metal in the plug itself.
Ohno Continuous Casting Copper (OCC Copper)
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long!
The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Atlas DD (Dual Drain) System
Normally screened cables suffer from screen distortion when they are prepared for production. (If you've ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination). This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.
Atlas' ‘dd’ configuration is based on a simplified version of the techniques they developed for their top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires (each attached to 180° segments of the plug) are inserted between a 100% copper/Mylar™ foil and screen. The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen. The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).
Contact Enhancer Option
To ensure the best possible connection between your system, Future Shop recommends the DeoxIT Gold G-Series contact enhancer.
DeoxIT Gold is carefully applied to the plug contacts of your cable and is a unique conditioning solution designed to improve conductivity and provide long-lasting protection on gold, base metals and other precious metal contacts and connections. DeoxIT Gold penetrates plated surfaces, molecularly bonding to the base metals to seal and protect both surfaces.
The benefits of applying DeoxIT gold are:
- Improved Conductivity
- Maintained optimum signal quality
- Reduced wear & abrasion
- Prevents fretting/dendrite corrosion
- Forms a protective anti-tarnishing coating
- Stabilises connections between similar and dissimilar metals
- Reduces arcing, RFI and intermittent connections
Please select this option from the above ‘Contact Enhancer’ drop-down menu and our engineers will apply the contact solution to your cable connectors prior to shipping.
|
|
|
“A basically transparent interconnect which presents instruments in a realistic fashion and never restricts the tempo of music. Add in excellent detail resolution and the Atlas should go to the top of anyone’s list at this price.” (Read More) Cable Review - Hi-Fi World - April 2017
|
Specification :
- Contruction : Twin twisted pair multicore, dual drain
- Material : 6n OCC Copper
- Dielectric : PEF
- Screen : OFC 94.2% – 252 strands
- Capacitance : 71.54 pF/m
- Inductance : 0.542 µH/m
- Resistance : 0.0239 Ohms/m
- VOP : 0.682 Outside
- Diameter : 10.0mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
About Atlas Cables
Scottish cable maker that designs and builds its own conductors, connectors and cables rather than assembling bought-in parts.
Atlas researches, designs and produces its cables in Scotland, with a handful of exceptions. Many cable brands assemble off-the-shelf components, but Atlas specifies the conductors, insulation and terminations itself and tests the result in its own listening room. It offers a five-year guarantee on its cables.
Read more about Atlas Show less
The plugs are Atlas designs too
Atlas designs its own RCA plugs. The Achromatic and Ultra RCAs are built for low mass and high bandwidth, and the newer Metik connectors were developed for personal audio. Designing the connectors in house means Atlas is not limited to what an outside supplier already sells.
Three performance levels, with named ranges in each
The catalogue is arranged in three performance levels. Upgrade covers Element and Equator, Aspire covers Hyper and Ailsa, and High End covers Mavros, Arran, Eos and Zeno. You can choose the level that suits the rest of your system, then move up later without changing brand.
Custom options and a repair service
Atlas lists luxe and speaker termination options, so you can specify a cable to suit the equipment at each end. It also repairs, customises and upgrades its cables through a dedicated service, which means you can bring an older cable up to date instead of replacing it.
Why we stock Atlas
Atlas run pure copper conductors through most of the range rather than silver or silver plating. That gives a warmer, more forgiving balance than the silver-plated cables we sell. If your system is already leaning bright, Atlas is usually where we point you first. Hand-built in Scotland, and we have sold them since 2008.
New cables (even high-quality ones) benefit from a period of signal conditioning before reaching their optimum performance. The dielectric (insulation) around the conductors needs time to stabilise under the electromagnetic field created by signal flow. Rather than leaving this to you, we run cables on our Nordost Vidar burn-in machine before dispatch, up to the equivalent of 200 hours of use, in a fraction of the time. Your cable arrives performance-ready from the first listen.
Specification :
- Contruction : Twin twisted pair multicore, dual drain
- Material : 6n OCC Copper
- Dielectric : PEF
- Screen : OFC 94.2% – 252 strands
- Capacitance : 71.54 pF/m
- Inductance : 0.542 µH/m
- Resistance : 0.0239 Ohms/m
- VOP : 0.682 Outside
- Diameter : 10.0mm
