Atlas Hyper Duo 2 XLR to 2 XLR Audio Cable
The Atlas Hyper Duo XLR is a balanced interconnect built for systems where noise rejection and signal transparency are a priority. Its Duo screening topology gives each conductor pair its own independently precision-woven OFC screen, with both screens then twisted together and drained directly to ground via a common connection. This goes a step further than a conventional shared screen arrangement, maintaining consistent low impedance across the full 360 degrees of shielding and significantly reducing the RFI contamination that raises noise levels and costs low-level detail. The approach also avoids the screen distortion that occurs when standard screened cables are prepared for termination, a physical deformation that measurably alters impedance and degrades performance. OCC copper conductors keep crystal boundaries to a minimum along the signal path, while PEF (Foamed Polyethylene) insulation offers low signal loss and wide bandwidth, making the cable well suited to longer runs without performance compromise.

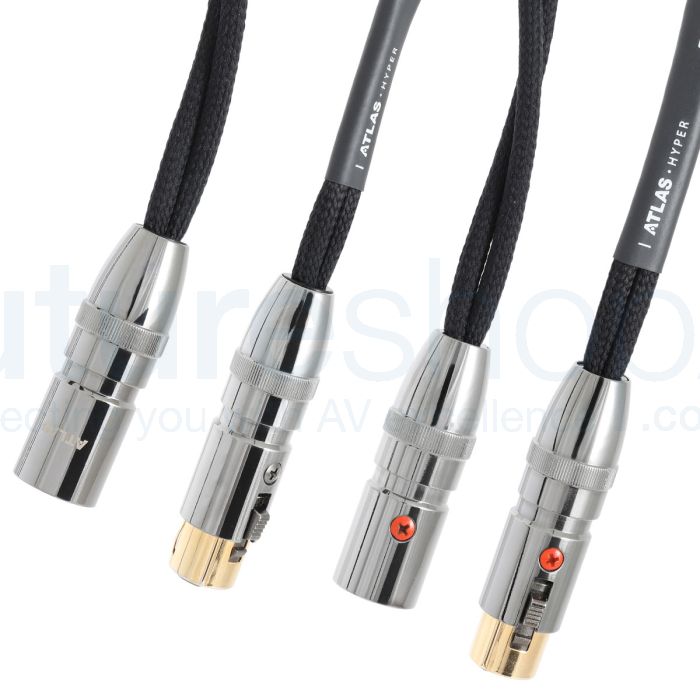

The cable is terminated with dark chrome XLR plugs using Atlas's cold-weld precision crimp process, which forms an airtight metal-to-metal contact between conductor and plug pin without introducing the material inconsistencies of solder or the mechanical stress of screw terminations. Researched, developed, and assembled in Atlas's Scottish facility, the Hyper Duo XLR delivers a balanced, transparent sound with a low noise floor and an open, natural presentation suited to capable systems making full use of balanced connectivity.
Here is what Atlas say about the Hyper Duo XLR
The Hyper XLR Duo is a wide-bandwidth interconnect designed for a high level of transparency allied to an exceptionally low noise-floor, ideally suited to achieving excellent results from highly-capable systems using XLR connectors.
Featuring stranded conductors of high purity OCC (Ohno Continuous Casting) copper within a low-loss foamed PEF (Foamed Polyethylene) dielectric, Hyper has excellent immunity to interference and noise, making it ideally suited to longer cable runs. ’
The Hyper XLR Duo utilises Atlas’ new 'Duo' independent dual-drain screen topology, a further refinement of our proven 'dd' dual-drain system. Duo employs completely separate, independently screened conductors for 'hot (+) and 'cold‘ (-) connections, increasing rejection of unwanted signal-degrading ‘noise’ and significantly improving the cable's measured and audible performance
The cable is terminated with our cold-weld solder-free ‘dark Chrome’ XLR plugs. This design and construction combines wide bandwidth with excellent resistance to the RFI (Radio Frequency Interference) which can raise noise levels, resulting in a loss of low level detail in poorly-shielded cables.
The latest generation Hyper XLR Duo interconnect combines a distinctive appearance with a sophisticated, evenly-balanced sound which draws the listener into the musical performance.
Features:
- Duo Dual Drain Independent Screen
- Cold weld Precision Crimped Termination
- OCC Conductors
- PEF Dielectric
Duo Dual Drain Independent Screen
Our unique Duo and ‘dd’ construction connect the screen without distorting, twisting or mechanically stressing the precision-laid screen, all of which can cause measurable performance anomalies.
We have invested in machinery to quickly and efficiently perform a number of the key stages in our manufacturing process. But working with our dual-drain system is one of those instances where there’s no substitute for the ‘hands-on’ experience of a skilled operator.
Normally screened cables suffer from screen distortion when they are prepared for production. (If you’ve ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination). This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.
Our ‘dd’ configuration is based on a simplified version of the techniques originally developed for our then top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires (each attached to 180° segments of the plug) are inserted between a 100% copper/Mylar™ foil and screen.
The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen. The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).
Our Duo symmetrical topology essentially takes our dual-drain approach one step further, with the paired hot and cold conductors surrounded by their own independent precision-woven OFC screen. Each of the screen pairs is then precisely twisted and configured with a common Grun connection, draining both screens directly to ground.
Cold weld Precision Crimped Termination
Our objective is a smooth, uninterrupted signal path which behaves as one continuous entity, with the minimum of ‘breaks & barriers’ in the signal path.
The Process
We have invested in machinery to quickly and efficiently perform a number of the key stages in our manufacturing process, including precision-crimping of connectors on all types of cable.
We also have a number of identically calibrated hand-tools — there are times when there’s no substitute for the experience of a skilled operator.
Cold-Weld Precision-Calibrated Crimp
We firmly believe there should be the minimum of ‘breaks & barriers’ in the signal path. To this end for example, the pins on our connector plugs will typically be of the same material as the cable conductor, ie. a cable using a OCC Copper conductor will have OCC Copper signal pins.
We consider a precision-calibrated cold-weld connection (where physically possible) to be superior to soldered joints or screw connections. Solder typically introduces an unwanted material barrier and a degree of inconsistency. Screw terminations typically distort/damage the conductor and/or dielectric, adversely affecting the measured characteristics of the cable.
In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as closely as possible to one continuous entity.
OCC Copper
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long! The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables. Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE). PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product. The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
Specification :
- Construction: Duo Stranded
- Conductor: OCC Copper
- Dielectric: PEF
- Screen: Foil/OFC braid
- Capacitance: 48.86 pF/m
- Inductance: 0.756 µH/m
- Resistance: 0.0859 Ohms/m
- Outside Diameter: 4.8 mm (per conductor)
- Colour/Finish: Black Fabric
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
About Atlas Cables
Scottish cable maker that designs and builds its own conductors, connectors and cables rather than assembling bought-in parts.
Atlas researches, designs and produces its cables in Scotland, with a handful of exceptions. Many cable brands assemble off-the-shelf components, but Atlas specifies the conductors, insulation and terminations itself and tests the result in its own listening room. It offers a five-year guarantee on its cables.
Read more about Atlas Show less
The plugs are Atlas designs too
Atlas designs its own RCA plugs. The Achromatic and Ultra RCAs are built for low mass and high bandwidth, and the newer Metik connectors were developed for personal audio. Designing the connectors in house means Atlas is not limited to what an outside supplier already sells.
Three performance levels, with named ranges in each
The catalogue is arranged in three performance levels. Upgrade covers Element and Equator, Aspire covers Hyper and Ailsa, and High End covers Mavros, Arran, Eos and Zeno. You can choose the level that suits the rest of your system, then move up later without changing brand.
Custom options and a repair service
Atlas lists luxe and speaker termination options, so you can specify a cable to suit the equipment at each end. It also repairs, customises and upgrades its cables through a dedicated service, which means you can bring an older cable up to date instead of replacing it.
Why we stock Atlas
Atlas run pure copper conductors through most of the range rather than silver or silver plating. That gives a warmer, more forgiving balance than the silver-plated cables we sell. If your system is already leaning bright, Atlas is usually where we point you first. Hand-built in Scotland, and we have sold them since 2008.
New cables (even high-quality ones) benefit from a period of signal conditioning before reaching their optimum performance. The dielectric (insulation) around the conductors needs time to stabilise under the electromagnetic field created by signal flow. Rather than leaving this to you, we run cables on our Nordost Vidar burn-in machine before dispatch, up to the equivalent of 200 hours of use, in a fraction of the time. Your cable arrives performance-ready from the first listen.
Specification :
- Construction: Duo Stranded
- Conductor: OCC Copper
- Dielectric: PEF
- Screen: Foil/OFC braid
- Capacitance: 48.86 pF/m
- Inductance: 0.756 µH/m
- Resistance: 0.0859 Ohms/m
- Outside Diameter: 4.8 mm (per conductor)
- Colour/Finish: Black Fabric
