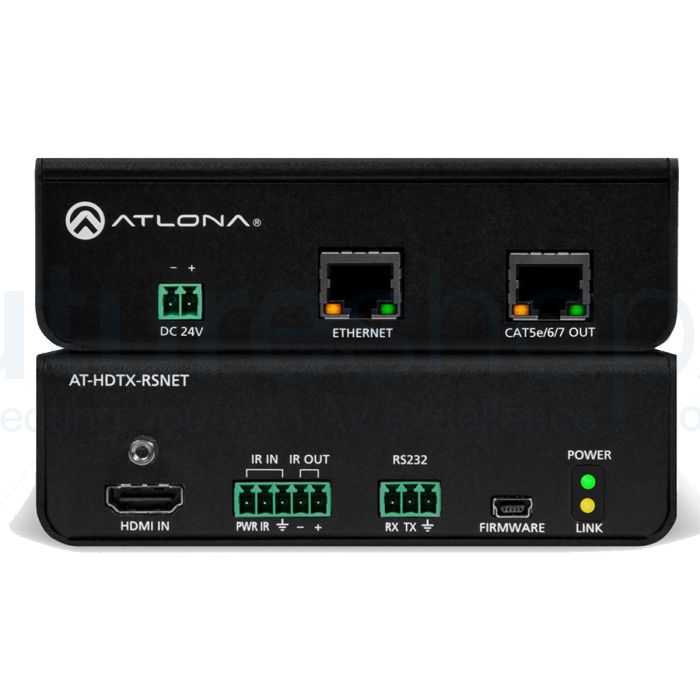

Atlona AT-HDTX-RSNET HDBaseT RSNET transmitter

£326.00 £271.67
SKU
AT-HDTX-RSNET-1
Free UK Delivery
10 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Please Note: This product is discontinued, once our stock has gone, it's gone!!

Atlona’s HDBaseT RSNET transmitter uses the advanced technology of HDBaseT combined with power over category cable (PoCc™) to extend signals to an unprecedented 328 feet (100 meters) over a single category cable.

Atlona AT-HDTX-RSNET HDBaseT RSNET transmitter



Please Note: This product is discontinued, once our stock has gone, it's gone!!

Atlona’s HDBaseT RSNET transmitter uses the advanced technology of HDBaseT combined with power over category cable (PoCc™) to extend signals to an unprecedented 328 feet (100 meters) over a single category cable. Atlona’s RSNET transmitter boxes are ideal for larger connected homes or sophisticated boardrooms and educational facilities that need complete control over long distances. Specially engineered for simpler installation and higher resolutions at longer distances.



Features

Extended distance HDMI extension

  • Transmits HDMI and control signals up to 328 ft (100m) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable
  • Supports HDCP 2.2
  • Uses easy-to-integrate category cable for low-cost, reliable system installation

V, Ethernet, power, and control over HDBaseT

  • Delivers 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
  • Eliminates multiple cable runs between source, control system, and display

Power over Category cable for remote-powered HDBaseT receiver

  • Provides remote power to Atlona HDRX Series and HDWP Series receivers over the same category cable used for AV and control signals
  • Eliminates local AC outlet required at receiver, cleans up the installation behind displays, plus saves time and integration costs

Field updatable firmware

  • Front panel USB port provides an easy means for kit upgrades
  • Ensures long term system return on investment

Front panel power and status LEDs

  • LED indicators provide Power and Link status information
  • Provides easy setup and troubleshooting

Multi-channel audio compliant

  • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, and DTS-HD Master Audio™
  • Allows any multi-channel audio stream to be used within a professional audio system

CEC pass-through

  • Allows Consumer Electronics Control commands – if implemented – to pass between devices
  • Simplified user control of entire system with one remote

Recommended accessories:

  • AT-HDRX-RSNET – RS-232, Ethernet, IR, PoCc, audio, and video
  • AT-HDWP-RSNET – US wall plate with RS-232, Ethernet, IR, PoCc, audio, and video
  • AT-HDWP-RSNET-UK – UK wall plate with RS-232, Ethernet, IR, PoCc, audio, and video
  • AT-LC-CS-IR-2M – LinkConnect Captive Screw-Ready 3.5mm IR Cable

1.5 in (38 mm) high and 5 in (127 mm) wide enclosure

  • Easy installation into system racks and confined spaces
  • Saves rack space and keeps devices out-of-sight when placed in public spaces

Mounting hardware included

External, international desktop power supply



Specification

Resolution
Video: 480i@60Hz, 480p@59.94/60Hz, 576i@50Hz, 576p@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*
VESA: 800×600@60/75Hz, 1024×768@60/75Hz, 1280×768@60/75Hz, 1280×800@60Hz, 1280×1024@60/75Hz, 1366×768@60Hz, 1440×900@60/75Hz, 1400×1050@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1200@60Hz, 3840×2160@24/25/30, 4096×2160@24

Colorspace: YCbCr, RGB
Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
Color depth: 8-bit, 10-bit, 12-bit

Audio

Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Distance
HDMI: up to 10 meters / up to 30 feet
CAT5e/6: up to 70 meters (@4K) / up to 230 feet
CAT6a/7: up to 100 meters (@4K) / up to 328 feet

Signal
Bandwidth: 10.2 Gbps
CEC: Yes
HDCP 2.2: Compliant


Temperature
Operating: 0°C to 40°C / 32°F to 104°F
Storage: -20°C to 60°C / -4°F to 140°F
Humidity: 20 to 90% non-condensing

Power
Consumption: 11.3W
Supply

Input: AC100~240V 50/60Hz
Output: DC 24V/2.7A


Dimension
H x W x D: 37.75 x 127.26 x 102.6 (mm) / 1.49 x 5.01 x 4.04 (inch)

Weight
Device: 0.20kg / 0.44lbs
Shipping: 0.86kg / 1.90lbs

Certification
Power Supply: CE, FCC, RoHS, cULus

Ports
HDMI
Features: 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio


RJ45 IN
HDBaseT: PoCc, Ethernet, IR, RS-232, 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio

RJ45 OUT
Ethernet: 100 Mbps

IR
Compatibility: Only Atlona emitters and receivers

Mini USB
Use: Firmware updating


Package Contents

1 x AT-HDTX-RSNET
1 x 24V DC power supply adaptor
3 x Captive screw connectors (2 pin: Power, 3 pin: RS-232, 5 pin: IR)
1 x Pair of wall/rack mount ears
1 x User manual

* 4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
