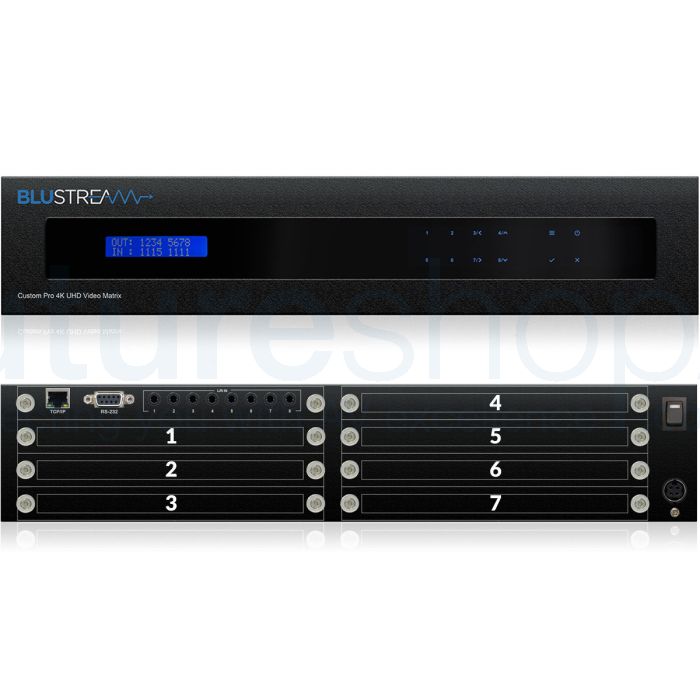

Blustream CUSTOMPRO-HUB Custom Pro Matrix Hub w/ 8x Modular Bays
£1,419.00 £1,182.50
SKU
CUSTOMPRO-HUB
Free UK Delivery
5 Years
New
48 Hours
Blustream is delighted to announce the arrival of the first HDBaseT™ matrix solutions that support 4K HDR resolutions. The Custom Pro range is expanding with a host of new 4K HDR supported boards. What does Blustream mean by that? They mean that by using their advanced Colour Space Conversion the Custom Pro supports 18Gbps 60 Hz 4:4:4 (4K HDR).
Related Products
Blustream CUSTOMPRO-HUB Custom Pro Matrix Hub w/ 8x Modular Bays
Blustream's Custom Pro Matrix Hub with 8x Modular Bays takes AV installation to the next level of performance and flexibility. Designed to operate in challenging AV environments, this matrix allows AV installers to specify their desired I/O structure and choose additional control features required for a specific AV project.
With robust housing and interlocking board configuration, installation and maintenance are seamless. The Custom Pro Matrix supports 18Gbps 60 Hz 4:4:4 (4K HDR) using advanced Colour Space Conversion technology, providing a host of new 4K HDR-supported boards. This means that by choosing a Custom Pro Matrix, you can choose the configuration that best suits your installation needs. Additionally, Blustream offers pre-configured alternatives that boast audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass-through, and a web browser interface module for enhanced control.
The Custom Pro Matrix is the perfect choice for installations that aspire to deliver the very latest 4K HDR resolutions. You can achieve up to 8x video inputs and 8x video outputs using Custom Pro boards. This matrix also includes 8x analogue L/R audio inputs that can be embedded onto corresponding HDMI/HDBaseT™ zone outputs.
The Custom Pro Matrix can be controlled via front panel, IR, RS-232, TCP/IP, and web GUI/App. It supports PoH (Power over HDBaseT™) when used with compatible HDBaseT™ input/output cards. The web interface module offers control and configuration of the matrix, and 3rd party drivers are available for all major home control brands.
Advanced EDID management and HDCP2.2 compliance are built-in features, and the matrix supports uncompressed video and audio with zero latency using advanced HDBaseT™ technology. It also supports 4K UHD video up to 40m at 4K over HDBaseT™.
Experience the future of AV installation with Blustream's Custom Pro Matrix Hub with 8x Modular Bays and enjoy a seamless and flexible installation experience.
Features
- Custom Pro Matrix Hub with 8x modular bays for population of control & input/output boards
- Up to 8x video inputs and 8x video outputs can be achieved using Custom Pro boards
- 8x analogue L/R audio inputs which can be embedded onto corresponding HDMI/HDBaseT™ zone outputs
- Control of Matrix via front panel, IR, RS-232, TCP/IP and web GUI / App
- Supports PoH (Power over HDBaseT™) when used with compatible HDBaseT™ input/output cards
- Web interface module for control and configuration of Matrix
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
- HDCP2.2 compliant
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Supports 4K UHD video up to 40m at 4K over HDBaseT™
PRO-IN2HAB
The PRO-IN2H2V input board offers 2x HDMI and 2x VGA sources that can be independently routed to any HDMI/HDBaseT™ output board and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-IN4HAB
The PRO-IN4HAB board features 4x HDMI 2.0 inputs supporting 4K 60Hz 4:4:4 that can be independently routed to any HDMI/HDBaseT™ output board. Each HDMI input includes an independent fixed level 2ch analogue audio breakout and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-IN2H2V
The PRO-IN2H2V input board offers 2x HDMI and 2x VGA sources that can be independently routed to any HDMI/HDBaseT output board and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT4HTCS
The PRO-OUT4HTCS output board offers 4x dual HDBaseT™ outputs for connection to a HDBaseT™ receiver and HDMI display per zone. The PRO-OUT4HTCS utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m). The PRO-OUT4HTCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT4TCS
The PRO-OUT4TCS output board offers 4x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m). The PRO-OUT4TCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT2TCS
The PRO-OUT2TCS output board offers 2x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m). The PRO-OUT2TCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT4TL-V2
The PRO-OUT4TL-V2 output board offers 4x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (4K to 40m). The PRO-OUT4TL-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT2TL-V2
The PRO-OUT2TL-V2 output board offers 2x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (4K to 40m). The PRO-OUT2TL-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT4TLS-V2
The PRO-OUT4TLS-V2 output board offers 4x dual HDBaseT™ outputs for connection to a HDBaseT™ receiver and HDMI display per zone. The PRO-OUT4TLS-V2 utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (4K to 40m). The PRO-OUT4TLS-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT4H-V2
The PRO-OUT4H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to four independent displays. The PRO-OUT4H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-OUT2H-V2
The PRO-OUT2H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to two independent displays. The PRO-OUT2H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-8IR
The PRO-8IR IR routing board offers 8x IR outputs for routed control of local source hardware and 8x IR inputs for distribution of IR to compatible HDBaseT™ receivers. The PRO-8IR also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-8RS323
The PRO-8RS232 RS-232 routing board offers 8x bi-directional RS-232 ports for serial communication from all input and output locations when used with compatible Blustream HDBaseT™ transmitters & receivers. The PRO-8RS232 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
PRO-8ABV
The PRO-8ABV audio breakout board offers 8x simultaneous coaxial digital and variable line-level analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Specification
- Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
- RS-232 serial ports: 1x 9-pin RS-232 connector
- TCP/IP Control: 1x RJ45, female
- Rack-Mountable: 2U rack height, rack ears included
- Casing Dimensions (W x H x D): 440mm x 87mm x 282mm without feet
- Casing Dimensions (W x H x D): 440mm x 94mm x 288mm with feet / connections
- Shipping Weight: 5.0kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 12V/6A DC
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
Specification
- Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
- RS-232 serial ports: 1x 9-pin RS-232 connector
- TCP/IP Control: 1x RJ45, female
- Rack-Mountable: 2U rack height, rack ears included
- Casing Dimensions (W x H x D): 440mm x 87mm x 282mm without feet
- Casing Dimensions (W x H x D): 440mm x 94mm x 288mm with feet / connections
- Shipping Weight: 5.0kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 12V/6A DC
