Blustream HMXL42ARC-KIT 4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m)

Item code: HMXL42ARC-KIT

The HMXL42ARC-KIT by Blustream is capable of sending 4K60Hz 4:4:4 HDCP2.2 HDMI 2.0 and PoC (power over cable) up to 70m over a single CAT cable, and comes with two HDBaseT receivers, making it a product with strong performance and good value for cust…
£1,262.00
£1,051.67
✓ Save %

Lowest price in the last 30 days:

New 5 Years warranty 30-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£1,051.67 ex. VAT
Available — built to order, dispatches in 24 hours
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 30-day returns · Free burn-in · Built in our UK workshop · 5 Years warranty · Expert support on every order
promotional_banner_4

Blustream HMXL42ARC-KIT 4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR, Poc), Simultaneous HDMI / HDBaseT™ on output 1, video Smart Scaling on HDBaseT outputs, Auto Source Selection, Audio Breakout, RS-232 & TCP / IP Control, HDCP2.2 compliant, Web-GUI, includes 2x HDBaseT™ Receivers



Experience the ultimate in performance and flexibility with the Blustream HMXL42ARC-KIT 4x2 HDBaseT™ CSC Matrix Kit. This powerful matrix kit is designed for the custom installation market, offering unparalleled value and exceptional features to meet your video and audio distribution needs.

With the HMXL42ARC-KIT, you can effortlessly transmit 4K60Hz 4:4:4 HDCP2.2 HDMI 2.0 signals and PoC (power over cable) up to 70m using a single CAT cable. This ensures seamless connectivity and eliminates the need for additional power sources. To enhance your installation experience, the kit includes two HDBaseT receivers, providing even more value for your investment.

Blustream's HMXL42ARC-KIT utilizes advanced HDBaseT™ technology and CSC (Colour Space Conversion) to deliver exceptional video and audio performance. With support for the HDMI 2.0 18Gbps specification, including HDR, you can enjoy stunning visuals with vibrant colours and lifelike detail. The matrix features four HDMI inputs that can be independently routed to two HDBaseT™ outputs, providing flexibility in your setup.

Output 1 of the matrix offers simultaneous HDMI and HDBaseT™ output, allowing you to connect multiple displays without compromising on signal quality. The video Smart Scaling feature on the HDBaseT™ outputs enables compatibility with displays that support lower video resolutions while still delivering the maximum 4K UHD resolution on other video outputs.

Enjoy a seamless audio experience with the HMXL42ARC-KIT. It supports all known digital HDMI audio formats, including Dolby TrueHD, Atmos, DTS-HD Master Audio, and DTS:X transmissions. The matrix features an 8x2 audio matrix that can be independently controlled from the video, offering flexibility in audio routing. With audio breakout options, including HDMI source, zone outputs, and ARC (Audio Return Channel), you can customize your audio setup to suit your preferences.

Take advantage of the intuitive web interface module in the matrix for easy control and configuration. You can effortlessly manage your matrix settings and tailor the system to your specific requirements. The HMXL42ARC-KIT also supports bi-directional IR, enabling seamless control of connected devices.

With advanced EDID management and HDCP 2.2 compliance, the HMXL42ARC-KIT ensures compatibility and reliable performance. The kit comes with two RX70CS HDBaseT™ receivers, providing a comprehensive solution for your installation needs.

Experience the power and versatility of the Blustream HMXL42ARC-KIT 4x2 HDBaseT™ CSC Matrix Kit, and enjoy unparalleled performance and control over your audiovisual distribution system.





Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • 8 x 2 audio matrix that is independently controllable from video.
  • Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs
  • Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
  • Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT™ outputs
  • Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
  • 3rd Party drivers available for all major control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Supplied with 2 x RX70CS HDBaseT™ receivers



Specification

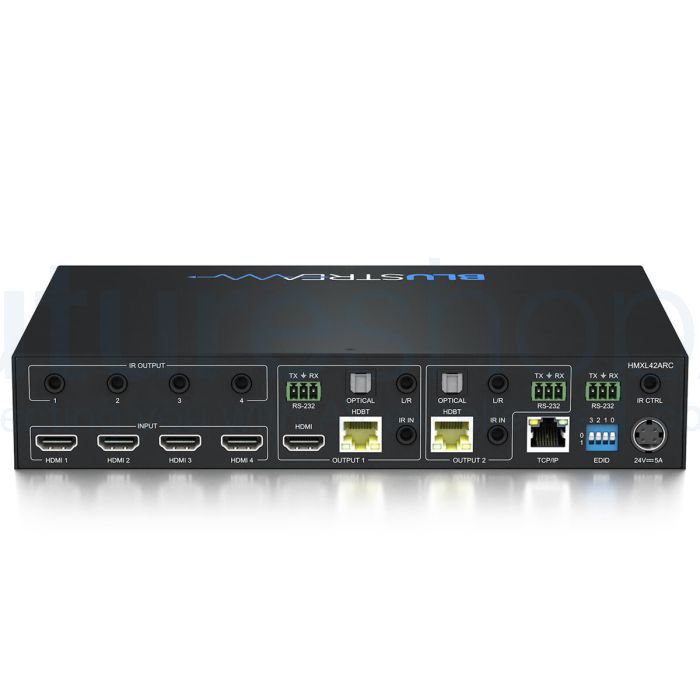

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 2x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 2x Analogue audio L/R (3.5mm stereo Jack), 2x Optical (SPDIF)
  • RS-232 Serial Ports: 1x 3-pin Pheonix connector
  • TCP/IP Control: 1x RJ45, female
  • IR Input Ports: 3x 3.5mm stereo jack
  • IR Output Ports: 4x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Casing Dimensions (WxDxH): 220mm x 235mm x 44mm (without feet)
  • Shipping Weight: 4.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1x 24V/5A DC

Box Contents

  • 1 x HMXL42ARC
  • 2 x RX70CS
  • 1 x 19" Rack mounting kit for HMXL42ARC
  • 1 x Surface mount kit for HMXL42ARC
  • 2 x Mounting kit for RX70CS
  • 1 x Remote control
  • 4 x IRE1 emitters
  • 3 x IRR receivers
  • 1 x Serial Cable - DB9 to 3-pin Phoenix connector
  • 1 x IR Control Cable - 3.5mm-3.5mm Cable
  • 1 x 24V/5A power supply
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



About Blustream

Australian-founded maker of HDMI matrices, HDBaseT extenders and AV distribution products for home and commercial installs.

Blustream started in Melbourne, Australia, and now has offices in the UK and the United States as well. It specialises in HDBaseT matrices and extenders, and its range also covers HDMI switching, audio converters, Dante audio, amplifiers and video over IP. You can use it to route sources to screens across a building.

Read more about BlustreamShow less

HDMI matrices and switches route your sources

Blustream's HDMI matrices and switches let you send several sources to several displays. The range includes 4x4 matrices such as the MX44AB-V2 and smaller switches such as the SW21AB-V2 and SW41AB-V2. A presentation switch, the MFP112, suits meeting rooms. Check the specification for the inputs and outputs.

HDBaseT extenders carry signals over distance

HDBaseT sends video, audio and control over a single network cable, which lets you place a display well away from its source. Blustream lists receivers such as the RX70AMP, which includes an amplifier, and extender sets such as the HEX100HDVGA-KIT.

Converters and cables fill the gaps

Audio extractors and converters, including the CAT100AU, DAC12AU, HD11AU, ADC11AU and DIG11AU, let you pull audio out of an HDMI signal or convert its format. Micro HDMI cables are also available, which helps when a source has only a micro connector.

Shop all Blustream →



  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 2x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 2x Analogue audio L/R (3.5mm stereo Jack), 2x Optical (SPDIF)
  • RS-232 Serial Ports: 1x 3-pin Pheonix connector
  • TCP/IP Control: 1x RJ45, female
  • IR Input Ports: 3x 3.5mm stereo jack
  • IR Output Ports: 4x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Casing Dimensions (WxDxH): 220mm x 235mm x 44mm (without feet)
  • Shipping Weight: 4.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1x 24V/5A DC

Box Contents

  • 1 x HMXL42ARC
  • 2 x RX70CS
  • 1 x 19" Rack mounting kit for HMXL42ARC
  • 1 x Surface mount kit for HMXL42ARC
  • 2 x Mounting kit for RX70CS
  • 1 x Remote control
  • 4 x IRE1 emitters
  • 3 x IRR receivers
  • 1 x Serial Cable - DB9 to 3-pin Phoenix connector
  • 1 x IR Control Cable - 3.5mm-3.5mm Cable
  • 1 x 24V/5A power supply
  • 1 x Quick Reference Guide
