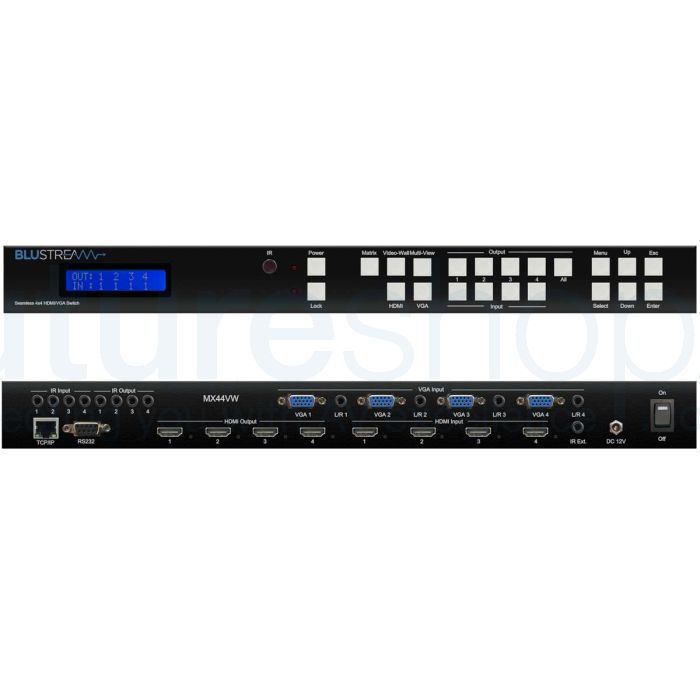

Blustream MX44VW 4x4 4K Seamless Switching HDMI/VGA Matrix, with Video Wall and Multi-Viewer feature

£1,810.00 £1,508.33
SKU
MX44VW
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's MX44VW 4K HDMI/VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.

Blustream 4x4 4K Seamless Switching HDMI/VGA Matrix, with Video Wall and Multi-Viewer feature



The Blustream MX44VW is a powerful, versatile 4x4 matrix switch that supports HDMI and VGA video inputs with associated analogue audio. It offers a range of advanced features, including seamless video switching, video wall mode, and multi-viewer mode with preset layouts.

In 4x4 matrix mode, you can select any of the four inputs to be routed to any of the four outputs. With the video wall mode, you can configure the outputs into a 2x2, 4x1, or 1x4 configuration to create a stunning video wall display. The multi-viewer mode allows you to display up to four sources on a single screen with preset layout options.

The switch supports all industry standard video resolutions, including VGA-WUXGA and 480i-4K, and it can output video resolutions up to 1080P at 60Hz. HDMI 2CH PCM audio is supported, making it ideal for audio applications. The switch is HDCP compliant and offers advanced EDID management to ensure that your video sources are properly recognized and displayed.

The Blustream MX44VW also offers a range of control options, including front panel control, IR routing, RS-232, and TCP/IP control. The switch is supplied with Blustream IR receivers and emitters, and 3rd party drivers are available for all major home control brands.

Overall, the Blustream MX44VW is a powerful and flexible solution for managing multiple HDMI and VGA sources, and it offers advanced features like video wall mode and multi-viewer mode to enhance your video display options. With a 2-year warranty, you can rely on this switch for your video switching needs.





Features:

  • Product Code - MX44VW
  • Features 3 operational modes:◦4x4 Matrix (selected HDMI or VGA inputs) - Video wall (2x2, 4x1 or 1x4 configuration) & Multi-viewer mode with preset layouts
  • Features 4x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio
  • Seamless video switching
  • Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • HDMI output resolution fixed to 1080P 60Hz
  • Supports HDMI 2CH PCM audio only
  • IR routing
  • Supplied with BlustreamIR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP compliant
  • 2 Year Warranty

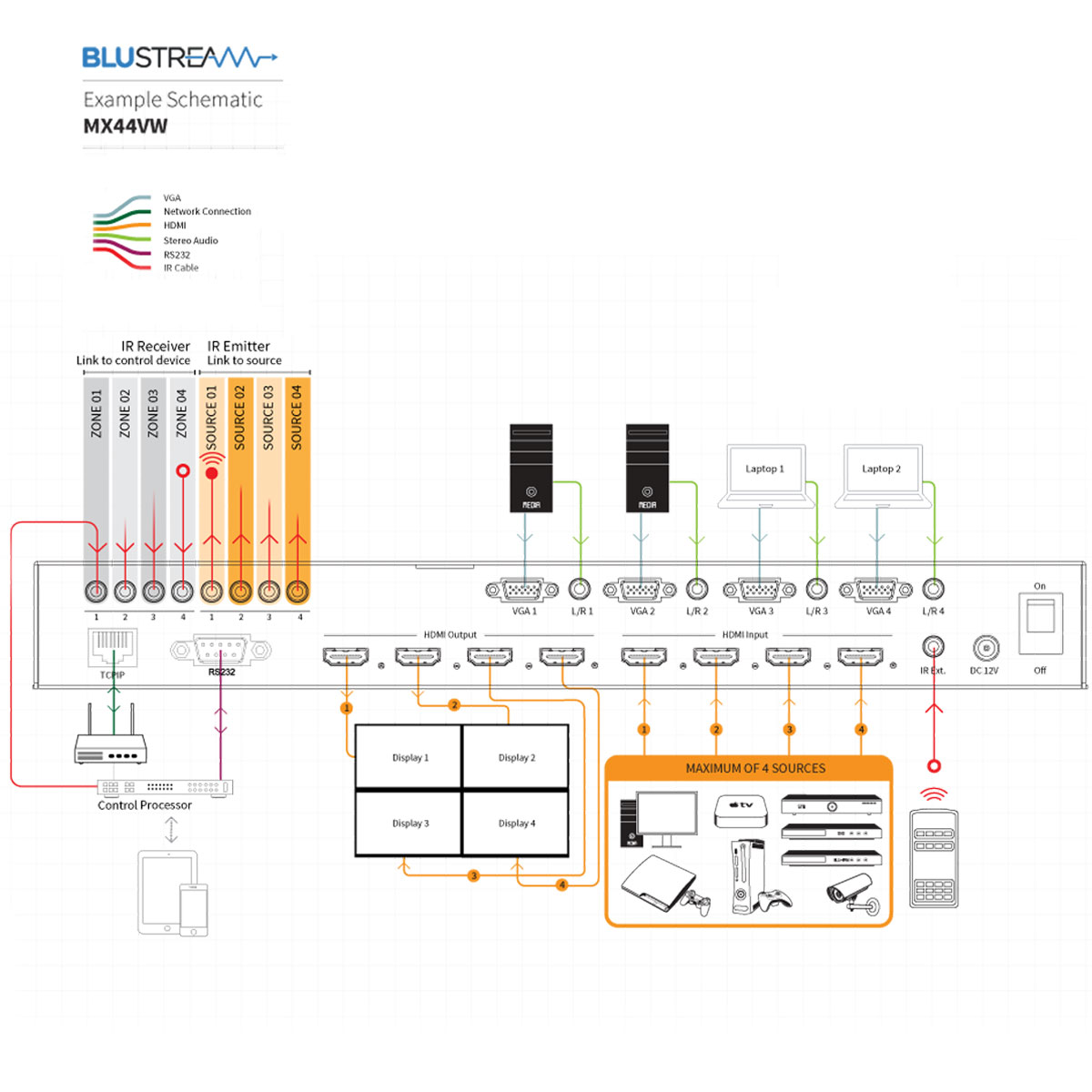

Blustream MX44VW HDMI Scwitcher Schematic

Specifications:

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking & 4x VGA
  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Audio Input Connectors: 4x Analogue audio 3.5mm stereo Jack
  • RS-232 serial port: DB-9, female
  • TCP/IP Control: RJ45, female
  • IR Input ports: 5x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (WxHxD): 440mm x 45mm x 180mm
  • Dimensions including connections (WxHxD): 440mm x 44mm x 187mm
  • Shipping Weight: 4.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/3A DC



Box Contents:

  • MX44VW
  • 12V/2A DC power supply
  • Remote control
  • 4x IR emitter
  • 5x IR receiver
  • Mounting kit
  • User manual



Blustream MX44VW Specification



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking & 4x VGA
  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Audio Input Connectors: 4x Analogue audio 3.5mm stereo Jack
  • RS-232 serial port: DB-9, female
  • TCP/IP Control: RJ45, female
  • IR Input ports: 5x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (WxHxD): 440mm x 45mm x 180mm
  • Dimensions including connections (WxHxD): 440mm x 44mm x 187mm
  • Shipping Weight: 4.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/3A DC
