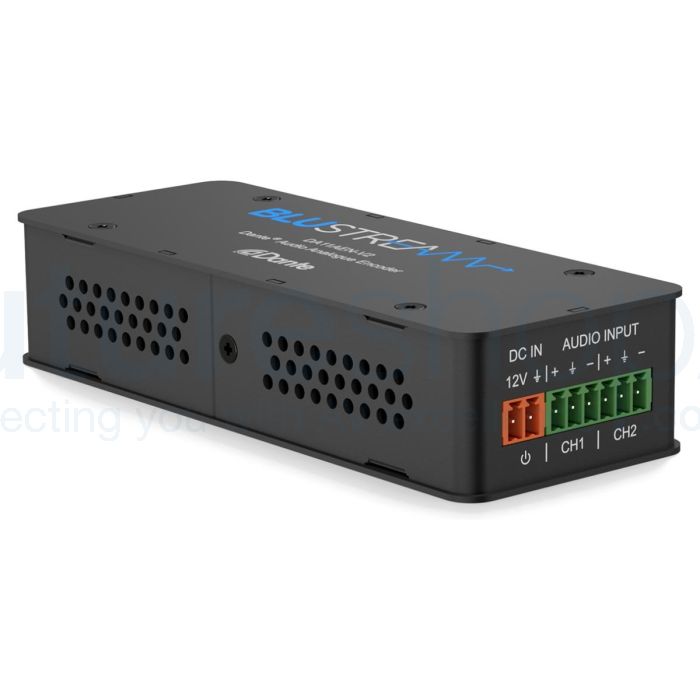

Blustream DA11AEN-V2 Dante® Audio Analogue Encoder

Item code: DA11AEN-V2

The Blustream DA11AEN-V2 is a Dante® audio analogue encoder that converts balanced or unbalanced two-channel analogue audio into a Dante network stream. It supports sample rates up to 96kHz at up to 32-bit, AES67 RTP transport and adjustable 2 to 10m…
£209.20
£174.33
✓ Save %

Lowest price in the last 30 days:

New 12 Months warranty 30-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£174.33 ex. VAT
Available — built to order, dispatches in 3 - 5 Days
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 30-day returns · Free burn-in · Built in our UK workshop · 12 Months warranty · Expert support on every order

Blustream DA11AEN-V2 Dante® Audio Analogue Encoder



The Blustream DA11AEN-V2 is a Dante® audio analogue encoder that converts a balanced or unbalanced two-channel analogue signal into a Dante digital audio stream, so a source with no network audio of its own can join a Dante system. Mixing consoles, amplifiers, computers and the analogue outputs of Blustream matrix and distribution products can all be brought onto the network this way, then routed to Dante decoders and other Dante devices on the same network. The DA11AEN-V2 is the natural partner to Blustream's DA11ADE-V2 decoder, and Blustream's own example system pairs the two through a network switch to carry stereo analogue audio from one location to another over standard CAT cabling.

The DA11AEN-V2 supports sample rates of 44.1, 48, 88.2 and 96kHz at 16, 24 or 32-bit, and its device latency can be set anywhere from 2 to 10ms in Audinate's Dante Controller software, so timing can be matched to the needs of the installation and the network it runs on. Support for AES67 RTP audio transport allows the encoder to work with AES67-compatible audio systems as well as Dante devices. A built-in web interface handles control and configuration of the unit, including the input sensitivity of each channel and the network settings, while Dante Controller discovers the DA11AEN-V2 automatically on the network and handles audio routing between encoders and decoders.

Connection is simple. A 6-pin Phoenix connector accepts both audio channels, each wired as a balanced or unbalanced input, and a single RJ45 socket connects the encoder to a 100Mbps Dante network. The DA11AEN-V2 is a plug and play device that takes its power from any Class 0 IEEE 802.3af PoE network switch, so one network cable carries both the audio and the power. Where the switch does not provide PoE, a 12V 1A DC supply can be connected to a 2-pin Phoenix input instead, using Blustream's PS121PH power supply, which is sold separately. The compact casing measures 120mm long, 47mm wide and 26mm high.



What Blustream say about the DA11AEN-V2

Our DA11AEN-V2 has been designed to encode unbalanced or balanced 2ch analogue audio to Dante® digital signals.

The DA11AEN-V2 allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix products or distribution products to be connected as a source within a Dante® network.

The DA11AEN-V2 is a plug & play device that is powered using either PoE (Power Over Ethernet) from any PoE network switch or via a local 12V power supply input.

The DA11AEN-V2 also supports AES67 RTP audio transport. The inbuilt web interface module can be used for configuration and control of the device.

Key Features

  • Encodes unbalanced or balanced 2ch analogue audio to Dante® digital signals
  • Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16/24/32 Bit
  • Configurable Dante® device latency (supports 2-10ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Web interface module for control and configuration of the device
  • Features Class 0 802.3af PoE for powering of product from any PoE switch
  • Local 12V power supply input for when network switch does not support PoE*

* PS121PH power supply sold separately

Specifications

General
  • Brand: Blustream
  • Model: DA11AEN-V2
  • Product Type: Dante® Audio Analogue Encoder
  • Dante Platform: DEP
Audio
  • Audio Input: 2-channel balanced or unbalanced analogue
  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz and 96kHz
  • Bit Depth: 16, 24 and 32-bit
  • Audio Transport: Dante® and AES67 RTP
  • Device Latency: 2 to 10ms, configurable in Dante® Controller
Network and Control
  • Network: 100Mbps Dante® network
  • Configuration and Control: built-in web interface
  • Web Interface Settings: per-channel input sensitivity and network settings
  • Routing and Device Configuration: Audinate Dante® Controller
  • IP Addressing: DHCP by default, link-local address when no DHCP server is present
Connectivity
  • Audio Input: 1 x 6-pin Phoenix connector (2ch balanced / unbalanced analogue audio)
  • Dante® Output: 1 x RJ45, female (100Mbps Dante® network, PoE)
  • Power Input: 1 x 2-pin Phoenix connector (12V DC)
Power
  • PoE: Class 0 IEEE 802.3af PoE PD
  • Local Power: 12V/1A DC via 2-pin Phoenix connector
  • Optional Power Supply: Blustream PS121PH (sold separately)
Environmental
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Weight and Dimensions
  • Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
  • Shipping Weight: 0.3 kg
In the Box
  • 1 x DA11AEN-V2
  • 1 x Quick Reference Guide

About Blustream

Australian-founded maker of HDMI matrices, HDBaseT extenders and AV distribution products for home and commercial installs.

Blustream started in Melbourne, Australia, and now has offices in the UK and the United States as well. It specialises in HDBaseT matrices and extenders, and its range also covers HDMI switching, audio converters, Dante audio, amplifiers and video over IP. You can use it to route sources to screens across a building.

Read more about BlustreamShow less

HDMI matrices and switches route your sources

Blustream's HDMI matrices and switches let you send several sources to several displays. The range includes 4x4 matrices such as the MX44AB-V2 and smaller switches such as the SW21AB-V2 and SW41AB-V2. A presentation switch, the MFP112, suits meeting rooms. Check the specification for the inputs and outputs.

HDBaseT extenders carry signals over distance

HDBaseT sends video, audio and control over a single network cable, which lets you place a display well away from its source. Blustream lists receivers such as the RX70AMP, which includes an amplifier, and extender sets such as the HEX100HDVGA-KIT.

Converters and cables fill the gaps

Audio extractors and converters, including the CAT100AU, DAC12AU, HD11AU, ADC11AU and DIG11AU, let you pull audio out of an HDMI signal or convert its format. Micro HDMI cables are also available, which helps when a source has only a micro connector.

Shop all Blustream →

Specifications

General
  • Brand: Blustream
  • Model: DA11AEN-V2
  • Product Type: Dante® Audio Analogue Encoder
  • Dante Platform: DEP
Audio
  • Audio Input: 2-channel balanced or unbalanced analogue
  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz and 96kHz
  • Bit Depth: 16, 24 and 32-bit
  • Audio Transport: Dante® and AES67 RTP
  • Device Latency: 2 to 10ms, configurable in Dante® Controller
Network and Control
  • Network: 100Mbps Dante® network
  • Configuration and Control: built-in web interface
  • Web Interface Settings: per-channel input sensitivity and network settings
  • Routing and Device Configuration: Audinate Dante® Controller
  • IP Addressing: DHCP by default, link-local address when no DHCP server is present
Connectivity
  • Audio Input: 1 x 6-pin Phoenix connector (2ch balanced / unbalanced analogue audio)
  • Dante® Output: 1 x RJ45, female (100Mbps Dante® network, PoE)
  • Power Input: 1 x 2-pin Phoenix connector (12V DC)
Power
  • PoE: Class 0 IEEE 802.3af PoE PD
  • Local Power: 12V/1A DC via 2-pin Phoenix connector
  • Optional Power Supply: Blustream PS121PH (sold separately)
Environmental
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Weight and Dimensions
  • Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
  • Shipping Weight: 0.3 kg
In the Box
  • 1 x DA11AEN-V2
  • 1 x Quick Reference Guide
