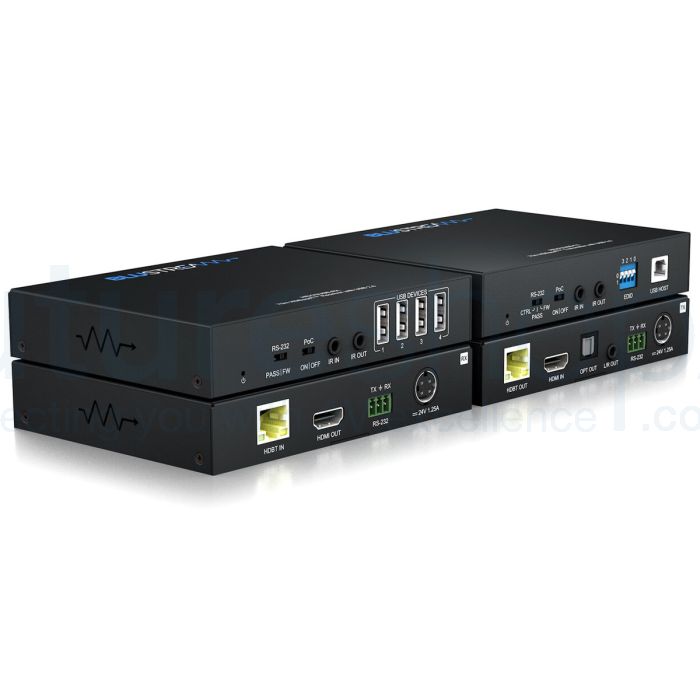

Blustream HEX70USB-KIT HDBaseT™ USB Extender Set

£533.00 £444.17
SKU
HEX70USB-KIT
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The HEX70USB-KIT is Blustream's new HDBaseT extender set that integrates USB 2.0 compatibility, allowing you to connect and control USB Type-B connected devices such as keyboards, webcams or microphones. This kit is capable of sending HDMI signal at 4K UHD up to 40m, or 1080p up to 70m and features PoC (power over cable) meaning that only the transmitter or receiver needs to be connected to a power source.

Blustream HEX70USB-KIT HDBaseT™ USB Extender Set - 70m (4K 60Hz 4:2:0 up to 40m), USB 2.0 Extension, Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoC, and HDCP 2.2



Introducing the Blustream HEX70USB-KIT HDBaseT™ USB Extender Set, a cutting-edge solution that combines HDMI extension and USB 2.0 connectivity in one powerful package. With this advanced extender set, you can effortlessly extend HDMI signals up to 70m for 1080p content or up to 40m for pristine 4K UHD resolution (60Hz 4:2:0). Experience seamless integration of USB Type-B devices such as keyboards, webcams, or microphones, all while enjoying the convenience of bi-directional IR and RS-232 control.

Blustream has designed the HEX70USB-KIT to deliver uncompromising performance and flexibility. This extender set is powered by advanced HDBaseT™ technology, ensuring uncompressed video and audio transmission with zero latency. You can extend HDMI 1080p signals up to an impressive 70m over a single CAT cable, while the support for 4K UHD video at 40m opens up new possibilities for stunning visual experiences.

One of the standout features of the HEX70USB-KIT is its USB 2.0 extension capabilities. With 4 USB Type-A device connections (RX - peripherals) and 1 USB Type-B connection (TX - host), you can effortlessly connect and control your USB devices with a combined data transmission bandwidth of up to 280Mbps. Each USB Type-A connection supports an output of 5V 500mA per port, providing reliable power for your connected peripherals.

In addition to its impressive video and USB capabilities, the HEX70USB-KIT supports all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions. Immerse yourself in high-quality audio to complement your visual experience.

The extender set also features bi-directional IR and RS-232 pass-through, enabling seamless control of your AV equipment from both ends of the extension. This convenient functionality and the supplied Blustream IR receiver and emitter ensure a hassle-free setup and operation.

Powering the extender set is made easy with bi-directional PoC (Power over Cable) support. Only the transmitter or receiver must be connected to a power source, reducing cable clutter and simplifying installation.

Rest assured that the HEX70USB-KIT is HDCP 2.2 compliant, providing a secure connection for protected content, and it includes advanced EDID management for optimal compatibility and performance. The extender set also offers HDMI audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently, allowing for flexible audio connectivity options.

Experience the power and versatility of the Blustream HEX70USB-KIT HDBaseT™ USB Extender Set and unlock new levels of connectivity and control. Whether you need to extend HDMI signals, integrate USB devices, or easily manage your AV equipment, this feature-packed extender set delivers unparalleled performance and convenience. Elevate your audiovisual experience with Blustream.





Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps
  • USB Type-A connections support 5V 500mA output per port
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions
  • Bi-directional IR pass-through
  • Bi-directional RS-232 pass-through
  • Supplied with Blustream IR receiver and emitter
  • Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end
  • HDCP 2.2 compliant with advanced EDID management
  • HDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently



Specification

HEX70USB-TX

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB Type-B (Host)
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack

HEX70USB-RX

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 4 x USB Type-A (Peripherals)
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack



  • Casing Dimensions (W x D x H ): 135mm x 105mm x 25mm (TX/RX)
  • Shipping Weight (Kit): 0.8kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/1.25A DC, 4-pin DIN connector

Box Contents

  • 1 x HEX70USB-TX
  • 1 x HEX70USB-RX
  • 1 x 24V/1.25A DC power supply
  • 1 x USB-A to USB-B cable
  • 1 x IRE1 emitter
  • 1 x IRR receiver
  • 1 x Serial Cable - DB9 to 3-pin Phoenix connector
  • 1 x 3-pin Phoenix connector
  • 2 x Mounting kit



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.





HEX70USB-TX

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB Type-B (Host)
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack

HEX70USB-RX

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 4 x USB Type-A (Peripherals)
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack



  • Casing Dimensions (W x D x H ): 135mm x 105mm x 25mm (TX/RX)
  • Shipping Weight (Kit): 0.8kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/1.25A DC, 4-pin DIN connector

Box Contents

  • 1 x HEX70USB-TX
  • 1 x HEX70USB-RX
  • 1 x 24V/1.25A DC power supply
  • 1 x USB-A to USB-B cable
  • 1 x IRE1 emitter
  • 1 x IRR receiver
  • 1 x Serial Cable - DB9 to 3-pin Phoenix connector
  • 1 x 3-pin Phoenix connector
  • 2 x Mounting kit
