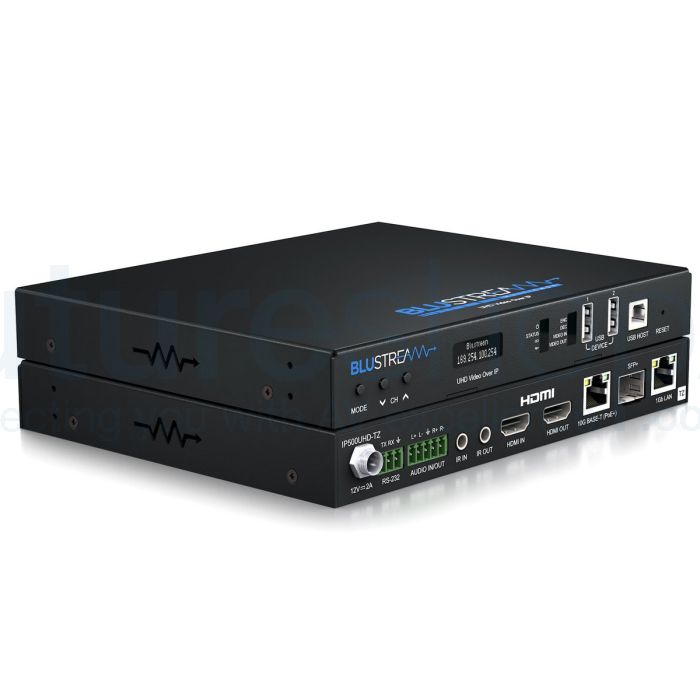

Blustream IP500UHD-TZ IP Multicast UHD Video Transceiver
£1,068.00 £890.00
SKU
IP500UHD-TZ
Free UK Delivery
5 Years
New
48 Hours
The Blustream IP500UHD Transceiver is a SDVoE AV over IP solution that provides the highest-quality, un-compromised 18Gbps 4K with zero latency Audio/Video extension over copper or optical fibre 10Gb Managed Networks.
The IP500UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content, and multi-channel HD audio signals.
Blustream IP500UHD-TZ IP Multicast UHD Video Transceiver over 10Gb Managed Network, HDMI 2.0 4K 60Hz 4:4:4, Bi-directional IR, RS-232 & USB/KVM, PoE+, Ethernet pass-through, Analogue Audio Embedding, Analogue Audio Breakout, and HDCP 2.2
The Blustream IP500UHD-TZ IP Multicast UHD Video Transceiver revolutionizes AV over IP solutions with its exceptional performance and extensive feature set. Designed for mission-critical 18Gbps HDMI installations, this transceiver delivers unparalleled quality and versatility over 10Gb Managed Networks.
With the IP500UHD-TZ, you can extend 18Gbps 4K HDMI signals with zero latency over copper or optical fibre networks. This ensures that your audio and video content remains pristine and un-compromised, even over long distances. The transceiver supports HDMI 2.0 with pass-through for up to 4K resolution at 60Hz with 4:4:4 colour sampling. It also provides compatibility with HDR sources, including Dolby Vision, and supports 10/12-bit colour content.
This feature-packed transceiver enables the transmission of multiple control and data signals alongside audio and video. It supports bi-directional IR, RS-232, USB (KVM), and 1Gb Ethernet, giving you comprehensive control and flexibility. Whether you need to control your devices remotely, integrate with existing systems, or transmit data, the IP500UHD-TZ has you covered.
One of the standout features of the IP500UHD-TZ is its ability to function in various operational modes. It can be configured as a point of transmission or a receiver, adapting to your specific setup requirements. Additionally, it supports video scaling and single-frame switching, allowing you to optimize and customize your viewing experience.
Audio quality is not compromised either. The IP500UHD-TZ supports all known digital HDMI audio formats, including Dolby TrueHD, Atmos, DTS-HD Master Audio, and DTS:X transmissions. It also offers analogue L/R audio embedding and breakout options, providing flexibility for audio integration in your setup.
The transceiver's versatility extends to its compatibility with different network configurations. It supports bi-directional 10/100/1000BaseT Ethernet pass-through, enabling seamless integration into your existing network infrastructure. The inclusion of Power over Ethernet (PoE+) allows you to power the Blustream Multicast products directly from a PoE+ switch, simplifying installation and reducing clutter.
The IP500UHD-TZ is HDCP 2.2 compliant and offers advanced EDID management for hassle-free compatibility with a wide range of source devices. It also features four operational modes: matrix distribution, video wall, multiview mode, and one-to-one HDMI extender. These modes cater to different application scenarios and ensure flexibility in meeting your specific needs.
Experience the pinnacle of AV over IP technology with the Blustream IP500UHD-TZ IP Multicast UHD Video Transceiver. Its exceptional performance, advanced features, and compatibility make it ideal for demanding installations requiring the highest-quality video transmission, versatile control options, and seamless integration into existing setups. Elevate your AV experience with the IP500UHD-TZ and unlock a world of possibilities.
Features
- Advanced 18Gbps UHD Video over 10Gb Managed Network with visually lossless compression and zero latency
- Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4, and with 10/12-bit HDR sources, including Dolby Vision
- Transceiver can be configured as a point of transmission or a receiver as required
- Supports video scaling and single-frame switching
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio and DTS:X transmissions
- Support fixed signal routing function for IR, RS-232, CEC and USB
- USB end-to-end / point-to-point pass-through
- Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
- Bi-directional 10/100/1000BaseT Ethernet pass-through
- Supports bi-directional 5V or 12V IR pass-through
- PoE+ (Power over Ethernet) to power Blustream Multicast products from PoE+ switch
- HDCP 2.2 compliant with advanced EDID management
- Local 12V 2.5A power input (should Ethernet switch not support PoE+, PSU sold separately)
- Features 4 operational modes:
- Matrix distribution (requires 10Gb network switch)
- Video wall (requires 10Gb network switch)
- Multiview mode (requires 10Gb network switch)
- One-to-one HDMI extender (no network switch required)
Specification
- Video input: 1 x HDMI Type A, female
- Video output: 1 x HDMI Type A, female
- Audio input/Output: 1 x 5-pin Phoenix connector
- Ethernet port: 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through
- RS-232 serial port: 1 x 3-pin Phoenix connector
- USB/KVM Port: 1 x USB-Type B (host) , 2x USB-Type A (device)
- IR input: 1 x 3.5mm stereo jack
- IR output: 1 x 3.5mm mono jack
- PoE+ draw: 12.8W (typical), 13.5W (max load)
- Dimensions (WxDxH): 191mm x 153mm x 25mm
- Dimensions Including Connections (WxDxH): 191mm x 158mm x 25mm
- Shipping Weight: 1kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Box Contents
- 1 x IP500UHD-TZ
- 1 x IR Receiver
- 1 x IR Emitter
- 4 x Rubber Feet
- 1 x Mounting Kit
- 1 x Quick Reference Guide
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
