Blustream UEX100E-KIT USB 2.0 HDBaseT™ Extender Set

£368.40 £307.00
SKU
Blustream UEX100E-KIT
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

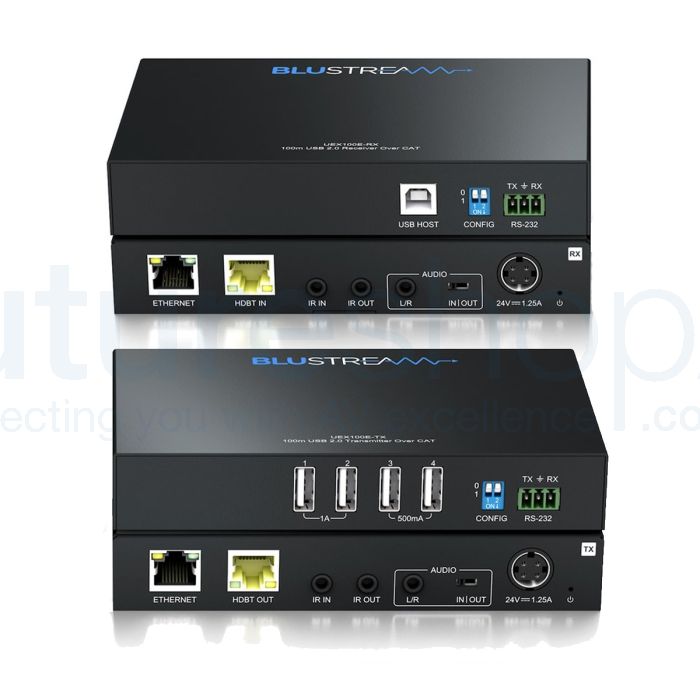

The UEX100E-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m over a single CAT cable.

Blustream UEX100E-KIT USB 2.0 HDBaseT™ Extender Set - 100m, 4x USB-A devices to 1x USB-B host, bi-directional PoC, IR & RS-232, Ethernet, and 2ch analogue audio pass through



The UEX100E-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m over a single CAT cable.

The UEX100E-KIT allows up to 4x USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.

The UEX100E-KIT also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analogue audio, and 100Mbps Ethernet/LAN pass through.



Features

  • Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*
  • Supports USB 2.0 signal extension
  • Backwards compatible with USB 1.1 devices
  • Transmitted data bandwidth up to 480Mbps (combined)
  • 1 x USB-B port on the receiver for connection to host device
  • 4 x USB-A ports on transmitter for connection to devices
  • USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
  • Bi-directional Ethernet pass-through (100Mbps)
  • Bi-directional IR & RS-232 pass through
  • Supports 2ch PCM Analogue Audio pass through (direction selectable)
  • Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
  • Simple plug and play, no driver installation or setup required

    *Signal distribution length subject to length of device / host USB cables and CAT cable type



Specification

UEX100E-RX

  • CAT Connector: 1 x RJ45 connector, female
  • USB Port: 1 x USB-Type B
  • Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo jack)
  • Ethernet Port: 1 x RJ45 connector, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Config Switch: 2-pin DIP switch

UEX100E-TX

  • CAT Connectors: 1 x RJ45 connector, female
  • USB Ports: 4 x USB-Type A
  • Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo Jack)
  • Ethernet Port: 1 x RJ45 connector, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Config Switch: 2-pin DIP switch



  • Power Supply: 24V/1.25A DC
  • Product Dimensions (W x D x H ): 150mm x 100mm x 25mm (TX/RX)
  • Shipping Weight: 1.6kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
