The EL-8100V 5 by 2 multi-format scaling switcher provides HDMI, USB-C, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic colour subsampling of 4K50/60 (4:4:4) sources to 4K50/60 (4:2:0). The VGA inputs support  resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 100 meters over a single run of Cat.6A cable as well as providing PoH power to compatible HDBaseT transmitters and receivers.

The IP-A750TX (& RX) takes advantage of Audio over IP's flexibility for all installation environments, ideal for audio-only zones within a larger AV over IP system. These products feature Analogue (Line in and Mic in) and Digital In (S/PDIF and TOSLINK®) for added flexibility and, with the use of CYP's intuitive IP-CS7 controller, allow the user to easily extend the connection between an audio source and an audio playback device via a 1Gb Local Area Network.

The IP-A750RX (& TX) takes advantage of Audio over IP's flexibility for all installation environments, ideal for audio-only zones within a larger AV over IP system. These products feature Analogue (Line out) and Digital output (S/PDIF and TOSLINK®) for added flexibility and, with the use of CYP's intuitive IP-CS7 controller, allow the user to easily extend the connection between an audio source and an audio playback device via a 1Gb Local Area Network.

The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are almost endless. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.

The OR-32USBC-4K22 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection.

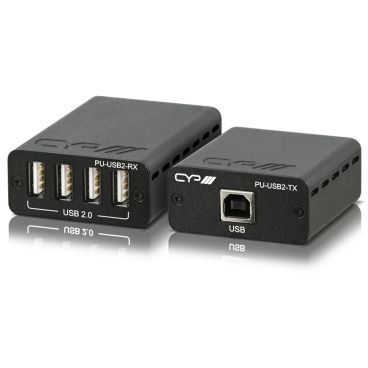

The PU-USB2-KIT is a low-cost transmitter and receiver pair for USB data extension. This USB 2.0 extender kit provides a simple way to extend USB 2.0 signals over a single category cable with high quality, uncompressed, multi-application data streams of USB. This features 1 host to 4 devices, all housed in a compact housing.

​​The PUV-1660TTX is a brand new AV concept for the Commercial & Corporate channel. Presentation equipment in corporate meeting rooms can often be difficult to operate and can provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the PUV-1660TTX provides the perfect balance between ease of use and portability.

​The PUV-2200PL-TX HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 meters. This transmitter also features analogue audio input/output and mic input for flexible audio options.

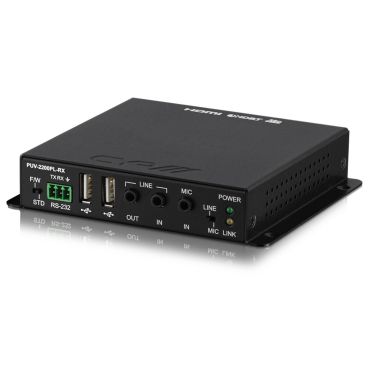

​​The PUV-2200PL-RX HDMI over single CAT5e/6/7 Receiver can receive uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 meters. This receiver also features analogue audio input/output and mic input for flexible audio options. Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.

The PUV-3050TX-UA is part of the new generation of HDBaseT 3.0 technology. This transmitter is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio, as well as control signals, via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0.

The PUV-3050RX-UA is part of the new generation of HDBaseT 3.0 technology. This receiver is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio, as well as control signals, via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0.

​The PUV-3090RX-UEA Receiver is part of a new generation of HDBaseT 3.0 technology and supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT. It is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet (LAN serving) and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet.
