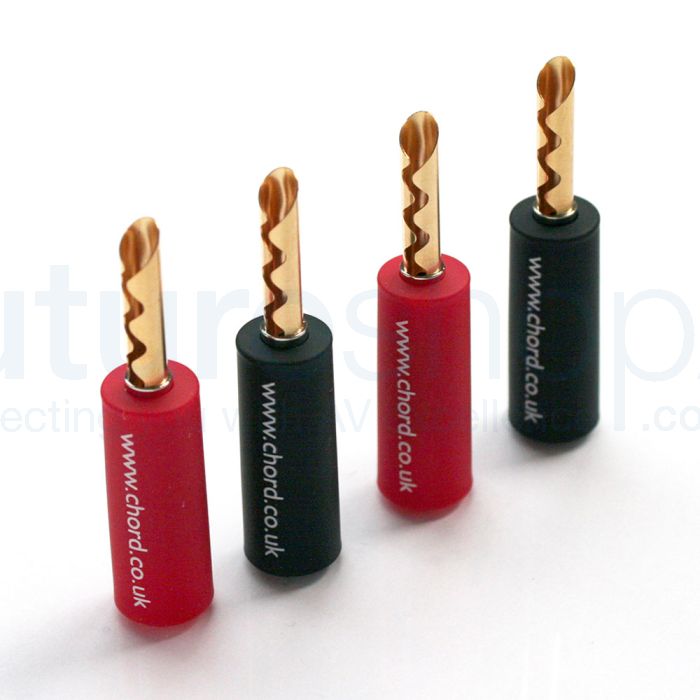

Chord 4mm Banana Plugs - 4 Pack Kit

An icon of a fingerRoll over image to zoom in Clicking this link will open a modal box containing a larger version of the image. View large image

User Guides

  • User guide
  • User guide

Connection Guides

Chord 4mm Banana Plugs - 4 Pack Kit

Excl. VAT £20.00 Incl. VAT £24.00
Chord Company Cables
Item Code: Chord Banana Plugs - Pack of 4
  • Warranty: 10 Years
  • Condition: New
  • Usually ships within: 24 hours

Available

Our experienced team are here to help

4mm Plugs, 24Kt hard gold-plated, made from insulated solid brass.

User Guides

  • User guide
  • User guide

Connection Guides

4mm Plugs, 24Kt hard gold-plated, made from insulated solid brass.

  • Description

    Chord 4mm Banana Plugs - 4 Pack Kit



    The ideal after-market solution for the termination of any speaker cable. Adaptable Chord z-plug design that will connect to all types of speaker and amplifier. Easy to use. Cable can be secured to the plug using screw or solder. Each kit contains: 4 x 4mm speaker plugs 2 x red covers & 2 x black covers.



    Specification:

    • Chord 4mm Banana Plugs - 4 Pack
    • Sold in 2 pairs, 2 black & 2 red
    • Direct gold-plated Copper beryllium contact
    • Can be used with both standard 4 mm and BFA type sockets
    • Twin fastening screws provide positive connection and strain relief
    • Easy-fit plastic cover
    • Compatible with all speaker cables
    • Colour coded and insulated barrels ensure correct phasing and prevent amplifier damage
    • 10 Years Warranty
    • Please Note: We are unable to ship this item for International orders if a local Chord cable distributor is available



    Fitting instructions for Chord speaker plug kit:

    1. Most Chord Company speaker cables have an outer jacket that surrounds the insulated conductors. Approximately 150mm (6 inches) of this outer jacket should be removed from the end of the cable prior to fitting Chord screw-type speaker plugs.
    2. Strip the end of each conductor so that approximately 8mm (3/8th inch) of bare conductor is exposed.
    3. Unscrew both screws on the cable connector and push the bare cable into the socket at the rear of the plug. The screw nearest the gold-plated speaker connector should be screwed down on to the bare conductor and the second screw should be screwed down on to the insulation surrounding the conductor to provide a degree of strain relief.
    4. The speaker plug is provided with a colour coded cap. hese are simply screwed into place to provide easy identification of positive and negative speaker cables.



    Fitting instructions for bi-wire cables 2 to 4 configuration:

    1. Proceed through step 1 and step 2.
    2. At the amplifier, twist the positive conductors together and the two negative conductors together.
    3. Proceed with step 3.
  • Specifications

    Specification:

    • Chord 4mm Banana Plugs - 4 Pack
    • Sold in 2 pairs, 2 black & 2 red
    • Direct gold-plated Copper beryllium contact
    • Can be used with both standard 4 mm and BFA type sockets
    • Twin fastening screws provide positive connection and strain relief
    • Easy-fit plastic cover
    • Compatible with all speaker cables
    • Colour coded and insulated barrels ensure correct phasing and prevent amplifier damage
    • 10 Years Warranty
    • Please Note: We are unable to ship this item for International orders if a local Chord cable distributor is available
