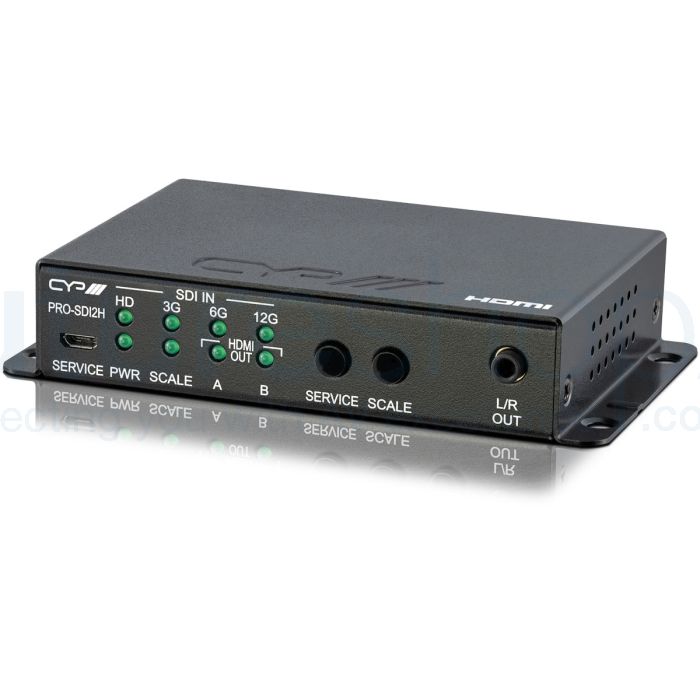

CYP PRO-SDI2H – Full 4K 12G SDI to HDMI converter

£800.03 £666.69
SKU
PRO-SDI2H
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The CYP PRO-SDI2H is a high-quality 12G SDI to HDMI converter that supports various SDI signals (SD, HD, 3G, 12G) and offers up to 4K UHD resolution with a 12Gbps data transfer rate. It features three mirrored outputs (two HDMI, one 12G-SDI), SDI signal extension up to 260 meters depending on the signal type, and the ability to downscale 4K to 1080p for flexible monitoring options.

CYP PRO-SDI2H – Full 4K 12G SDI to HDMI converter



If you're in the market for a high-quality SDI to HDMI converter, look no further than the CYP PRO-SDI2H. This top-of-the-line converter offers a wide range of features that make it a must-have for any professional looking to distribute and extend SDI signals while also displaying their work on HDMI displays.

One of the most impressive features of the PRO-SDI2H is its compatibility with various SDI signals, including SD, HD, 3G, and 12G. This means that no matter what type of SDI signal you are working with, you can easily display it on an HDMI display without any hassle or loss of quality.

In addition, the PRO-SDI2H is compliant with HDMI 2.0 and DVI 1.0 standards, ensuring that you can connect it to a wide range of devices without any compatibility issues. It also offers 3 mirrored outputs, including 2 HDMI outputs and 1 12G-SDI output, allowing you to simultaneously display your content on multiple devices.

One of the standout features of this converter is its support for up to 4K UHD resolution, with a 12Gbps data transfer rate, ensuring that you get the best quality video output possible. And with its ability to pass through LPCM audio, you can rest assured that your audio will also be of top-notch quality.

The PRO-SDI2H also offers a loop-through 12G-SDI design, allowing you to show content on both SDI and HDMI displays simultaneously. This is especially useful for professional environments where multiple displays are needed. And with its ability to extend SDI signals up to 80 meters (12G-SDI), 100 meters (6G-SDI), 200 meters (3G-SDI), or 260 meters (HDSDI), you can easily set up your displays in a variety of locations.

Lastly, the PRO-SDI2H offers the option to downscale 4K sources to 1080p for lower cost local monitoring options. This flexibility makes it a perfect choice for those looking for a high-quality converter that can adapt to different monitoring needs.



Features

  • HDMI 2.0 and DVI 1.0 compliant
  • 1 SDI video input
  • 3 mirrored outputs (2×HDMI, 1×12G-SDI) & 1 analogue stereo audio output
  • Supports up to 4K UHD (12Gbps, 4K@50/60Hz 4:2:2, 8-bit) digital video input
  • SDI input supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10
  • Looped SDI output is re-clocked
  • SDI signal extension distance varies based on signal type: 80 meters (12G-SDI), 100 meters (6G-SDI) 200 meters (3G-SDI), or 260 meters (HDSDI)
  • 4K sources can be optionally downscaled to 1080p when output over the HDMI outputs to support lower cost local monitoring options
  • Supports pass-through of LPCM audio (up to 8 channels)
  • Controllable via front panel controls

PRO-SDI2H

Specification

  • Inputs: 1x BNC [1x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI]

Outputs:

  • 1x BNC [1x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI]
  • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
  • PSU: 5V/2.6A
  • Dimensions: 130mm [W] x 35mm [D] x 20mm [H]
  • Net Weight: 34g
  • Gross Weight: 740g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

  • Inputs: 1x BNC [1x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI]

Outputs:

  • 1x BNC [1x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI]
  • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
  • PSU: 5V/2.6A
  • Dimensions: 130mm [W] x 35mm [D] x 20mm [H]
  • Net Weight: 34g
  • Gross Weight: 740g
