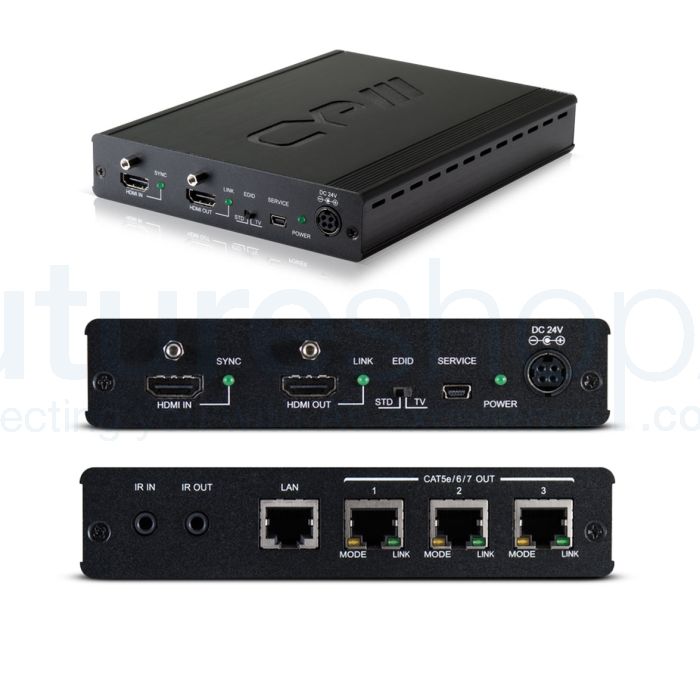

CYP PU-1H3HBTE 1x3 HDMI HDBaseT Splitter (100m) including additional HDMI output

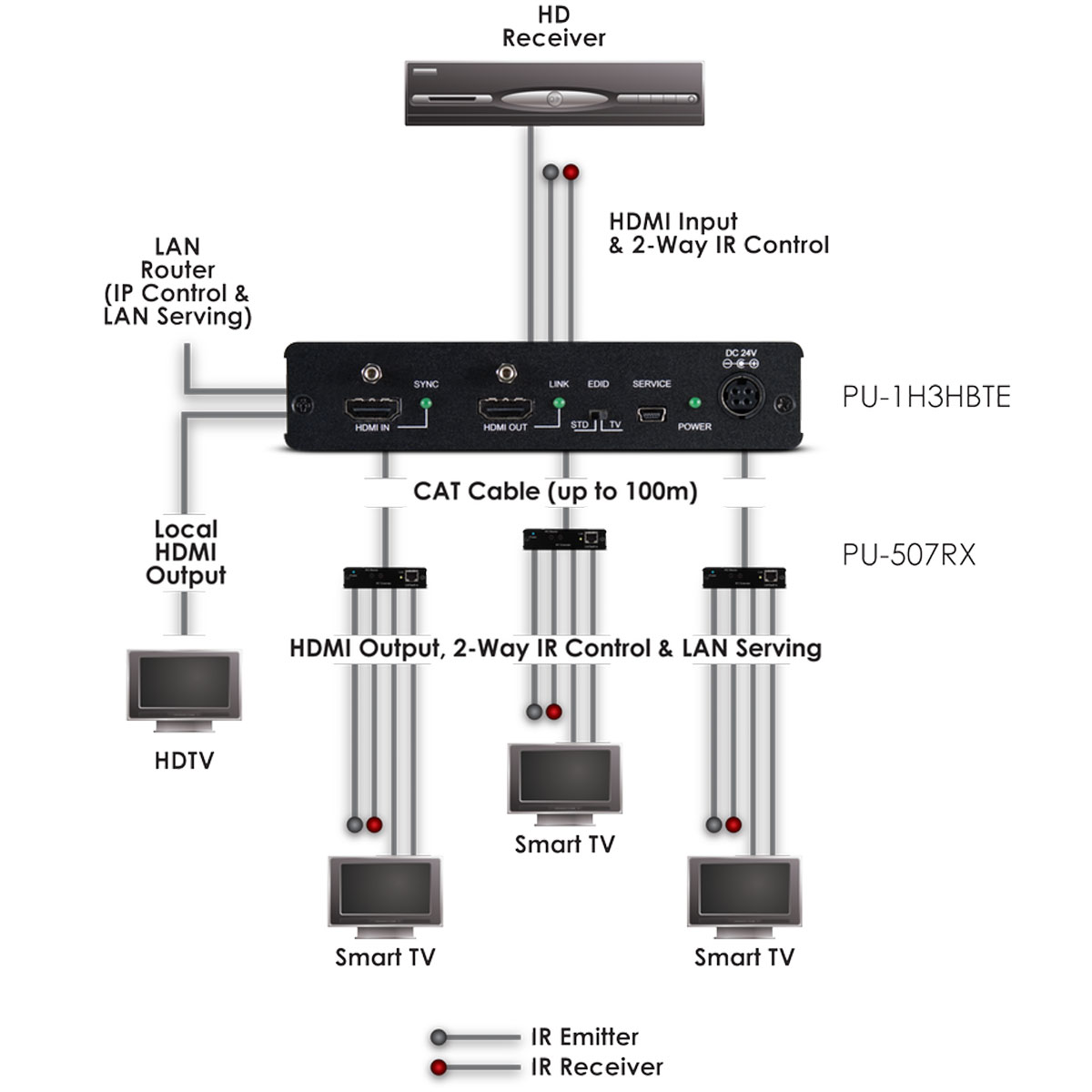

The PU-1H3HBTE enables a single HDMI source input to be distributed to 3 HDBaseT™ outputs. The HDBaseT™ outputs allow uncompressed distribution of HDMI, LAN, PoE, and IR over a Single CAT5e/6/7 cable up to lengths of 100m.
Perfect for both residential and commercial AV installations, the PU-1H3HBTE can distribute HDMI signals to 3 displays.
The product also includes an additional HDMI output for increased flexibility and can also be cascaded up to 5 times to allow distribution to potentially 50 screens or more. Compatible Receivers with this unit: PU-506RX, PU-507RX, PU-507WPRX, PU-507RX-2H, PU507RX-SCD, PU-1109RX, PU-HBTE-ZE & AU-A300-HBT.
Features:
- Product Code - PU-1H3HBTE
- Supports all v1.4 HDMI resolutions including 4k
- HDMI, HDCP, & DVI compliant
- Supports HDMI / LAN / PoE (Power over Ethernet) / IR
- Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K2K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA
- Supports uncompressed video/audio up to 10.2Gbps
- Supports HDCP repeating and CEC functions
- Additional HDMI bypass output provided to improve flexibility
- Uncompressed data transfer over single CAT cable (100m - CAT6/7; 80m - CAT5e)
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
- Supports 3D signals
- 2 Years Warranty
Specifications:
- Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x RJ45 [1x LAN Serving]
- Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 3x RJ45 [3x HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- PSU: 24V/4.16A
- Dimensions (WxDxH): 145mm x 200mm x 30mm
- Gross Weight: 720g
 |
 |
 |
 |
 |
 |
 |
 |
 |
Box Contains:
- CYP 1x3 HDMI HDBaseT™ Splitter (100m) including additional HDMI output
- UK Power Supply
- User's Manual
