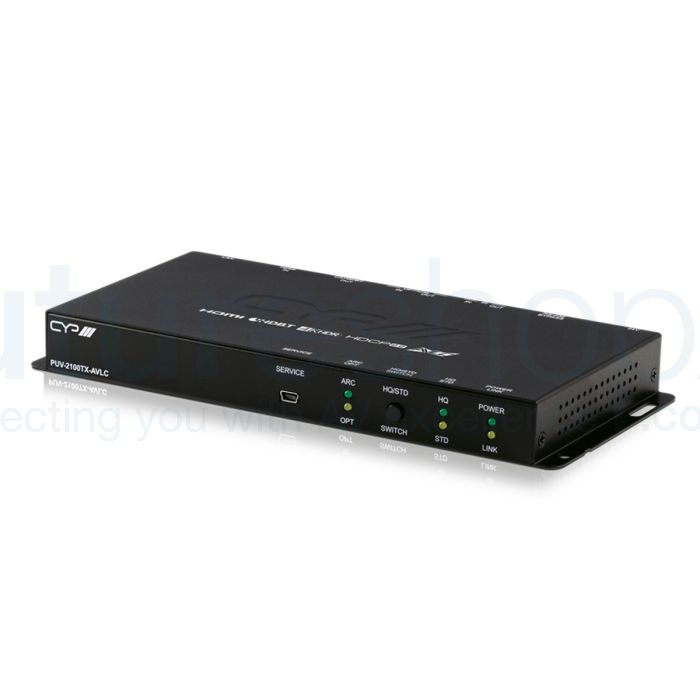

CYP PUV-2100TX-AVLC 4KUHD HDR HDMI over HDBaseT Transmitter

Item code: CYP PUV-2100TX-AVLC

The PUV-2100TX-AVLC Transmitter by CYP is able to transmit 4K UHD HDMI, RS-232, IR, Ethernet and multiple audio streams along a single Cat6a/7 cable up to 100m, with the additional benefit of Toslink Optical compatibility that allows bi-directional o…
£554.99
£462.49
✓ Save %

Lowest price in the last 30 days:

5 Years warranty 30-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£462.49 ex. VAT
Available
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 30-day returns · Free burn-in · Built in our UK workshop · 5 Years warranty · Expert support on every order

CYP PUV-2100TX-AVLC 4KUHD HDR HDMI over HDBaseT Transmitter with IR, RS232, PoH, Lan & ARC



The PUV-2100TX-AVLC Transmitter by CYP is able to transmit 4K UHD HDMI, RS-232, IR, Ethernet and multiple audio streams along a single Cat6a/7 cable up to 100m, with the additional benefit of Toslink Optical compatibility that allows bi-directional optical audio. This product is designed for use in conjunction with a compatible receiver, which can be powered directly by the Transmitter.



What CYP say



The PUV-2100TX-AVLC is an HDBaseT 2.0 Transmitter delivering 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100m (328 feet). This Transmitter is compliant with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Receiver or the INX-2100-AVLC Matrix Board. This transmitter can also pass RS-232, IR, Ethernet, and multiple audio streams across the same cable that carries the video signal.

The bi-directional optical audio feature allows optical audio to be exchanged bi-directionally between the Transmitter and Receiver. For added system stability, automatic HDBaseT clock stretching and TMDS re-clocking support is included on the PUV2100 series. The 48V PoH (Power over HDBaseT) feature allows a compatible connected Receiver to be powered directly by the Transmitter, eliminating the need for a separate power supply for the Receiver.



Features



  • HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
  • Supports Deep Color input and output up to 12-bit
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
  • Supports CEC bypass
  • HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7
  • HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH (PSE), bi-directional optical audio and Control
  • (bi-directional IR/RS-232 pass-through)
  • Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a compatible Receiver with no loss of visual quality
  • The AVLC feature allows manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources)
  • Bi-directional optical audio extension support
  • Supports HDMI DDC bus clock stretching for improved source compatibility
  • Performs TMDS re-clocking and signal re-generation for improved signal integrity
  • Supports standard 48V PoH from Transmitter to Receiver (compatible Receivers only)



Specification



  • Inputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x 9pin Dsub [1x Bypass RS-232 Data]
    • 1x RJ45 [1x LAN Serving]
    • 1x USB 3 Type B [1x Service Port Power & Data]
  • Outputs-
    • 1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]
    • 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • PSU- 24V/2.7A
  • Dimensions- 231mm [W] x 108mm [D] x 25mm [H]
  • Net Weight- 660g
  • Gross Weight- 1000g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus have made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.





  • Inputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x 9pin Dsub [1x Bypass RS-232 Data]
    • 1x RJ45 [1x LAN Serving]
    • 1x USB 3 Type B [1x Service Port Power & Data]
  • Outputs-
    • 1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]
    • 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • PSU- 24V/2.7A
  • Dimensions- 231mm [W] x 108mm [D] x 25mm [H]
  • Net Weight- 660g
  • Gross Weight- 1000g
