CYP RE-EDID-4K22 4K UHD EDID Manager

£253.70 £211.42
SKU
CYP RE-EDID-4K22
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The RE-EDID-4K22 is designed to manage and manipulate the HDMI/DVI EDID information provided to a HDMI source device by a connected display

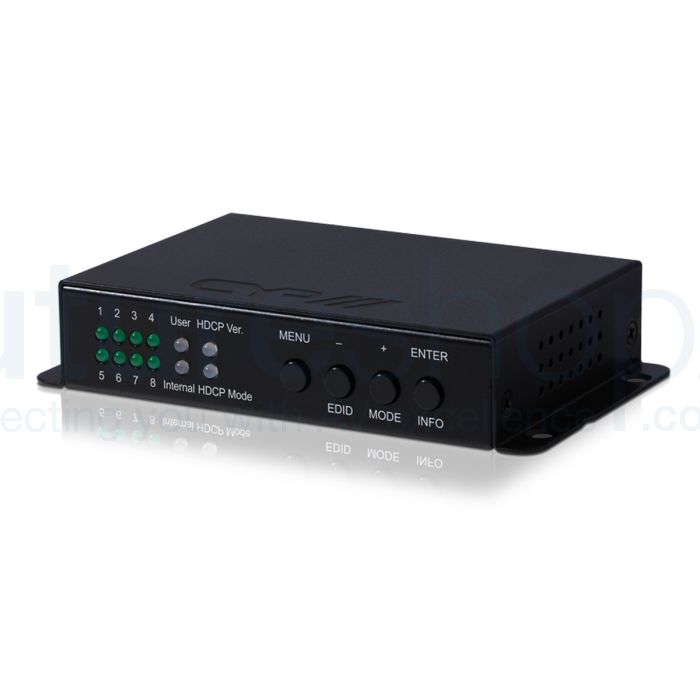

CYP RE-EDID-4K22 4K UHD EDID Manager (4K, HDCP2.2, HDMI2.0, 18Mbps (6G))



What CYP say



The RE-EDID-4K22 is designed to manage and manipulate the HDMI/DVI EDID information provided to a HDMI source device by a connected display. EDID contains critical information about the capabilities of the connected display, including audio and video format support, HDMI feature support, etc. This product aims to simplify the technical complications that often arise when performing video system integration, home cinema installation, integrating commercial displays or audio/video equipment testing. It also supports EDID Emulation and Bypass modes. This device is perfect to overcome source and screen compatibility issues, particularly when integrating PC's into an AV system.



Features



  • HDMI input and output with 18Gbps (6G) 4K UHD support
  • HDCP 1.4 and 2.2 compliant
  • Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
  • Supports 48-bit Deep Color up to 1080p@60Hz
  • Supports Four different EDID modes : Read / Write / Emulate / Bypass modes
  • Read Mode : Reads the TV/display’s EDID information
  • Write Mode : Overwrites the TV/display’s EDID information (TV/display needs to be able to support overwrite function)
  • 8 unique sets of EDID settings may be stored via the learning procedure.
  • Emulator Mode : Allows the source device to read the selected EDID information from the unit’s default or learnt EDID memory
  • Bypass Mode : Allows the source device to read the EDID information from the TV/display directly
  • Supports DVI sources when used with a DVI to HDMI adaptor (not supplied)
  • Supports CEC functionality



Specification



  • Inputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB 3 Type B [1x Service and PC port Power & Data]
  • Outputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • PSU- 5V/2.6A
  • Dimensions- 83mm [W] x 128mm [D] x 25mm [H]
  • Net Weight- 260g
  • Gross Weight- 715g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.





  • Inputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB 3 Type B [1x Service and PC port Power & Data]
  • Outputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • PSU- 5V/2.6A
  • Dimensions- 83mm [W] x 128mm [D] x 25mm [H]
  • Net Weight- 260g
  • Gross Weight- 715g
