CYP SY-4KS-4K22 HDMI 4K Scaler with Dual outputs & HDCP Converter (4K, HDCP2.2, HDMI2.0)

£420.60 £350.50
SKU
CYP SY-4KS-4K22
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

​​The SY-4KS4K22 HDMI Scaler is designed to upscale 1080p resolutions to 4K Ultra High Definition (UHD) resolutions, or downscale a UHD 4K signal to 1080p for integration into any AV system.

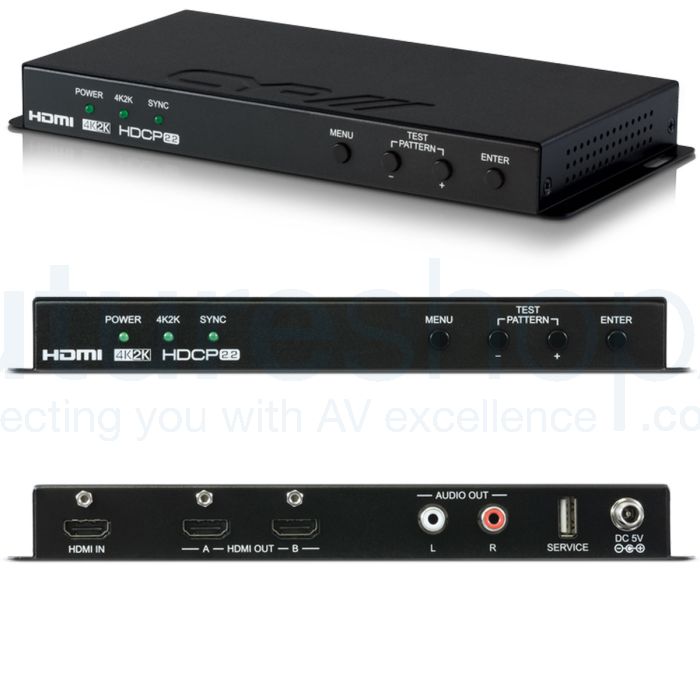

CYP SY-4KS-4K22 HDMI 4K Scaler with Dual outputs & HDCP Converter (4K, HDCP2.2, HDMI2.0)



​​The SY-4KS4K22 HDMI Scaler is designed to upscale 1080p resolutions to 4K Ultra High Definition (UHD) resolutions, or downscale a UHD 4K signal to 1080p for integration into any AV system. This scaler utilises the lastest HDMI2.0 and HDCP2.2 technology ensuring the highest level of compatibility available. The ability to downscale 4K signals to 1080p is a crucial function when working with 4K sources in a complex AV system and distributing the HDMI source signals to multiple displays which have varying resolution support.

The SY-4KS-4K22 incorporates two HDMI outputs, one of which can upscale or bypass (input follows output) and the second can downscale or bypass the incoming signal.  The SY-4KS-4K22 allows the user to select the highest supported resolution between the source and the each connected display. Both the bypass output and scaled output operate simultaneously.

Additionally the SY-4KS-4K22 has a number of other key features including a Deep Colour Conversion of 12 or 10 bit conversion to 8 bit, including HDR down convert for non-HDR displays. For further compatibility with legacy displays, there is also an on-board HDCP conversion tool enabling HDCP2.2 to be converted for use with HDCP1.4 compliant displays. Lastly, the SY-4KS-4K22 has an on-board Digital to Analogue audio Converter (DAC) enabling stereo analogue audio breakout via RCA connectors on the rear of the device.



Feature:

  • HDMI2.0 & HDCP2.2 compliant
  • Supports HDMI upscaling to 4K or downscaling to 1080p
  • Simultaneous HDMI outputs
  • Supports HDMI signal bypass
  • Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160 @24/25/30/60Hz
  • Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
  • Deep Colour Conversion : 12 or 10 bit conversion to 8 bit (including HDR down convert)
  • On-board HDCP2.2 to HDCP1.4 conversion tool
  • On-board Digital to Analogue audio Converter (DAC)

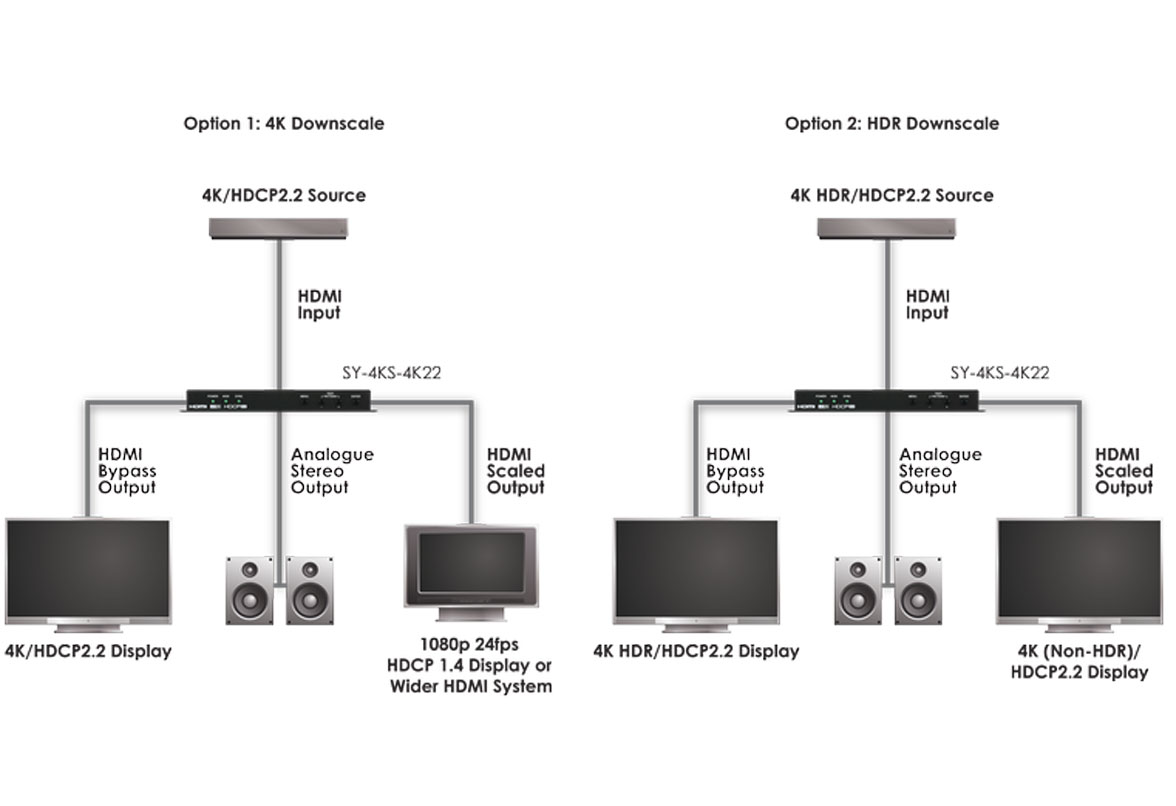

Schematics



Specification:

  • Inputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs
    • 2x HDMI [2x HDMI - up / down scaling outputs Uncompressed AV and Data]
    • 2x RCA [1x Analogue Stereo (L/R)]
  • PSU: 5V/2.6A
  • Dimensions: 117mm [W] x 231mm [D] x 25mm [H]
  • Net Weight: 635g
  • Gross Weight: 685g



8bit 10bit 12bit HDMI 4KHDR 4k-2k 4KUD 3d



Box Contains:

  • 1x SY-4KS-4K22
  • 1x Manual

Specification:

  • Inputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs
    • 2x HDMI [2x HDMI - up / down scaling outputs Uncompressed AV and Data]
    • 2x RCA [1x Analogue Stereo (L/R)]
  • PSU: 5V/2.6A
  • Dimensions: 117mm [W] x 231mm [D] x 25mm [H]
  • Net Weight: 635g
  • Gross Weight: 685g
