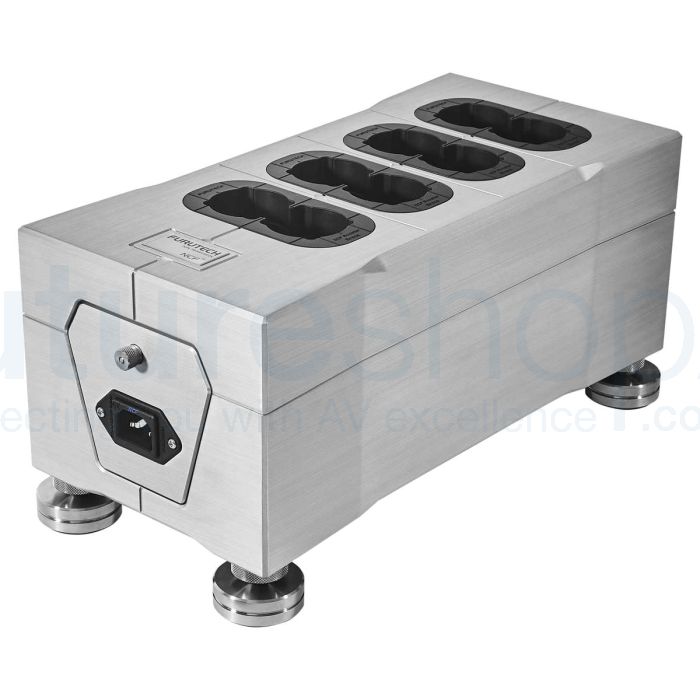

Furutech NCF Power Vault-E EU Schuko AC Power Distributor

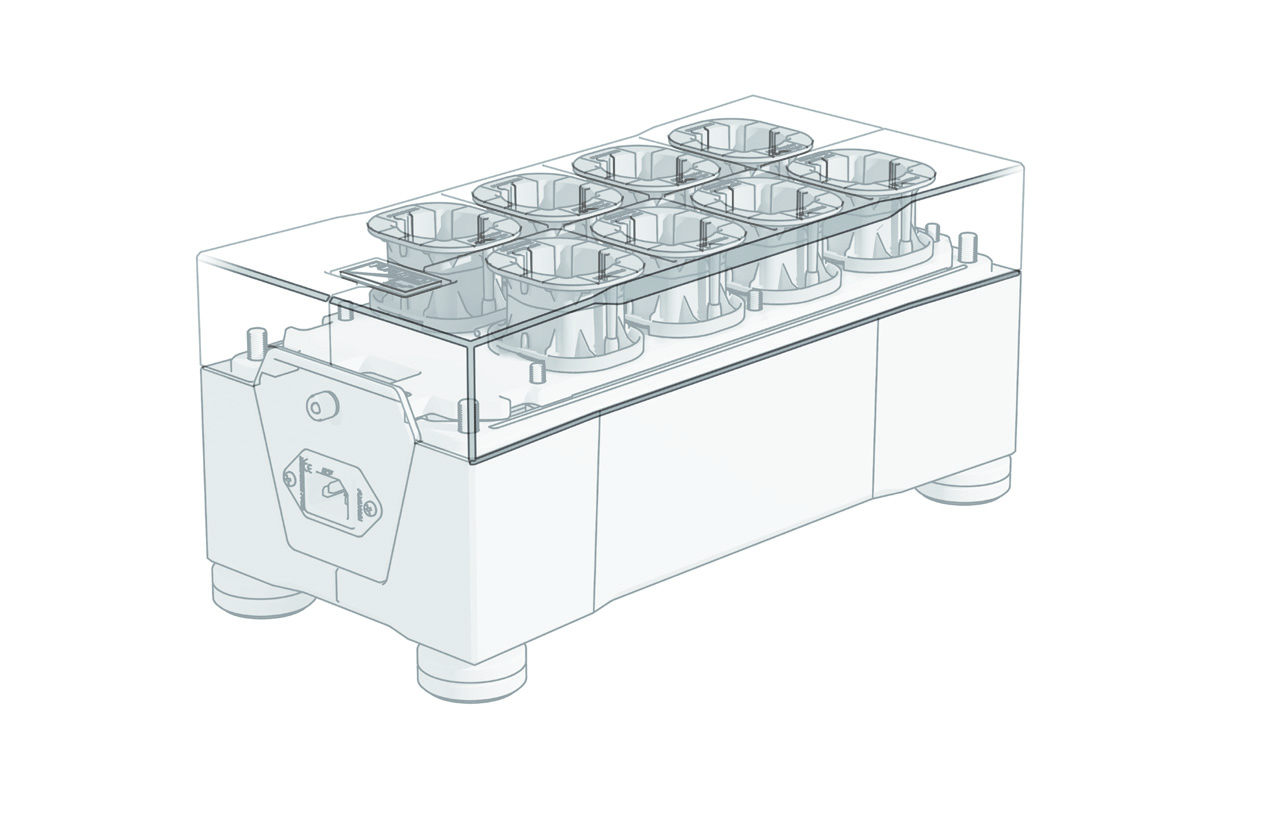

The Furutech NCF Power Vault-E is an eight-outlet mains distributor for high-end hi-fi and AV systems, and this listing is the version with Schuko outlets. Its chassis is machined from solid blocks of aluminium alloy with a hairline anodised finish, and it stands on isolation spikes with spike supports. The eight FI-E30 NCF(R) Schuko sockets have rhodium-plated Alpha pure copper contacts, each is wired separately with Furutech's Alpha-12 stranded Alpha-OCC conductor, and power comes in through an FI-09 NCF(R) IEC inlet with rhodium-plated contacts. It is an unfiltered design: instead of a filter circuit, the hot and neutral conductors are star-wired in a central chamber filled with Furutech's noise-absorbing Formula GC-303, and every socket sits in an NCF Booster Brace that damps the plug and cable you connect to it. There is also a chassis grounding post.
Furutech make the NCF Power Vault in two versions, and neither has UK sockets. The US version has four NEMA duplex receptacles and is rated at 125V, so it is not suitable for UK mains. The version for the UK is this one, the Power Vault-E, with eight Schuko sockets rated at 10A on 250V and 2500W in total. Your components will need power cables fitted with Schuko plugs, and the Power Vault-E itself takes a mains cable with an IEC connector to suit its 10A inlet.
If you are comparing it with the Furutech distributors we already sell, the Schuko version of the Furutech e-TP609 NCF has six of the same FI-E30 NCF(R) sockets and the same FI-09 NCF(R) inlet, in a black-coated aluminium chassis wired with Alpha-22 conductor. The Power Vault-E adds two more sockets, a chassis machined from solid aluminium, Alpha-OCC internal wiring and an NCF Booster Brace on every socket. It is a much bigger unit, at 350 x 169 x 137mm without its spikes and supports and about 10.8kg, so check you have room on your rack or floor.
What Furutech say about the NCF Power Vault-E
The NCF Power Vault is Furutech’s premium power distributor, designed to deal with high-frequency noise as well as to share out power. Its chassis is CNC-machined from aerospace-grade aluminium alloy to shield against EMI and RFI, and instead of relying on basic filter circuits it uses special materials, isolation and grounding in an “induction and absorption” approach to noise. Inside, the star-wired hot and neutral conductors sit in a central chamber filled with Formula GC-303, the FI-E30 NCF Schuko sockets are independently wired with Alpha-OCC conductors, and NCF Booster Braces damp each power connector. Every metal part goes through Furutech’s two-stage cryogenic and demagnetising Alpha Process.
Introducing the NCF Power Vault: Elevate Your Audio Experience with Unparalleled Luxury
Discover the epitome of power distribution units with our NCF Power Vault, meticulously designed to redefine your audio experience. Crafted with precision and sophistication, this unit seamlessly blends luxury and cutting-edge technology for audiophiles who demand the best.
Fortress-Inspired Build for Unparalleled Protection
Immerse yourself in a world of pristine sound with a chassis crafted with the solidity and precision akin to a fortress. The aerospace-grade aluminum alloy is CNC-machined to perfection, providing an impenetrable shield against EMI and RFI. Your audio components are safeguarded within a meticulously crafted compartment, housing independently wired sockets using premium shielded α (Alpha)-OCC conductor wire high-purity conductors.
The NCF Power Vault is engineered with a core principle in mind: a power distribution unit should not only distribute power but also effectively tackle high-frequency noise. Your audio experience is fundamentally shaped by the quality of incoming electricity, and disturbances like storms traveling through the AC line and its ground can severely impact your system’s performance. Particularly in finely tuned audio setups, nuances in recordings can be magnified, revealing any issues within the power chain, especially noise interference from the AC mains.
High-frequency and electromagnetic noise, emitted throughout a system like an antenna effect, pose significant challenges in removal. While many power distribution products attempt to mitigate this noise with basic electrical circuits, the NCF Power Vault takes a different approach. By employing specialized materials, advanced isolation techniques, and innovative grounding methods, it introduces an “induction and absorption” method specifically tailored to eliminate this unwanted noise. With the NCF Power Vault, immerse yourself in the delicacy, refinement, and nuance of every performance. Unleash micro- and macro-dynamics that will captivate and leave you breathlessly engaged. Elevate your audio and visual experience with Furutech’s game-changing technology.
Incorporating Advanced Materials and Technologies Ensures Stable Quiet Power for your Entire System
NCF (Nano Crystal² Formula)
NCF is a special crystalline material that has two ‘active’ properties. First, it generates negative ions that eliminate static. Second, it converts thermal energy into far infrared. Furutech combines this remarkable material with nano-sized ceramic particles and carbon powder for their additional ‘piezoelectric effect’ damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material. Created by Furutech, it is found exclusively in Furutech products.
Formula GC-303 for Unmatched Performance
Experience superior sound clarity as the hot and neutral conductor bundles are star-wired in a secure central chamber and filled with Furutech’s EMI-absorbent Formula GC-303 material. This groundbreaking technology absorbs any noise, ensuring that your music is delivered with unparalleled precision and purity.
Furutech’s Revolutionary Two-Stage Alpha Process
Furutech pioneers innovation with a cutting-edge two-stage process designed to enhance audio system performance. In the first stage, metal components undergo deep cryogenic freezing, reducing internal stress and improving structural stability, thus enhancing conductivity and signal transfer.
The second stage involves Furutech’s patented Ring Demagnetization treatment, eliminating magnetization effects for immediate improvements in conductivity. Every metallic component undergoes this treatment, ensuring stress-free, stable, and highly conductive materials.
The result? A meticulously engineered synergy of the 2-Step Alpha Cryogenic and Demagnetizing Process, delivering optimized AC power transfer and heightened power, dynamics, and resolution. Experience cleaner backgrounds, expansive soundstage, vivid tonal colors, and deeper frequency range extension.
CNC machined Premium-grade Aluminum Chassis
Precision-milled from special-grade thick aluminum blocks, each compartment houses eight independently wired receptacles, ensuring optimal performance. Finished with a stunning hairline anodized treatment, these compartments exude both engineering beauty and functionality.
NCF Booster Brace - Power Connector Damping Support
NCF Booster-Brace: Elevating Audio Performance Through Multi-Material Hybrid Structure
Crafted with precision, the NCF Booster-Brace boasts a multi-material hybrid structure designed to effectively absorb vibrations from connectors and cables. At its core is the specially formulated material known as ‘NCF,’ engineered to combat static build-up while providing robust damping effects. This unique composition not only suppresses noise but also enhances the electrostatic effect, resulting in heightened silence and clarity in sound reproduction. This innovative design dramatically enhances their performance, delivering a noticeable improvement in audio quality.
FI-E30 NCF - High End Performance NCF Schuko Socket
Furutech Hyper Quality High Performance α (Alpha) Pure Copper nonmagnetic rhodium-plated schuko sockets are wired to a high-performance rhodium-plated pure copper IEC inlet for stable, long lasting, optimized power transfer.
α (Alpha)-12 OCC
The NCF Power Vault utilizes α (Alpha) OCC single crystal oxygen-free copper as the conductor in our cables. This conductor consists of 7 strands, each containing 19 meticulously arranged 0.18mm OCC copper wires. The result? Exceptionally low impedance and outstanding conductivity, ensuring pristine signal transmission. To further elevate performance, we fill the cable with PVC of special audio grade. This material not only possesses superior electrical properties but also minimizes capacitive reactance, preserving the integrity of your audio signals. Additionally, its shock-absorbing damping effect enhances overall sound quality, delivering an immersive listening experience that captivates the senses.
Specifications
General
- Brand: Furutech
- Model: NCF Power Vault-E
- Type: Premium performance power distributor, unfiltered
- Outlets: 8 x Schuko (FI-E30 NCF(R))
- AC Input: 10A IEC inlet
- Rated: 10A 250V AC 2500W
- Ground/Earth Connection: Chassis grounding post
Sockets and Inlet
- Receptacles: 8 High End Performance FI-E30 NCF (R) Schuko sockets, KEMA-KEUR rated
- NCF Booster Brace-Single: 8 power connector damping supports
- IEC Inlet: FI-09 NCF (R), α (Alpha) pure copper conductor, rhodium-plated
Construction
- Chassis: CNC machined special-grade aluminium alloy with hairline anodised surface
- Internal Wiring: Alpha-12, stranded α (Alpha)-OCC conductor wire treated with Furutech’s α (Alpha) Cryogenic and Demagnetizing Process
- Insulation: UL compliant special grade flexible PVC (UL-CL3)
- Solder: Special alloy solder
- Materials Processing: Metal parts treated with α (Alpha) Cryogenic and Demagnetizing Process
Weight and Dimensions
- Size: 350mm W x 169mm H x 137mm D approx. (without isolation spikes and spike supports)
- Weight: 10.8kg approx.
About Furutech
Japanese maker of plugs, connectors and cables, with its own treated copper conductors and shielding materials.
Furutech is a Japanese company based in Tokyo. Its catalogue covers power connectors in IEC, UK, Schuko and other formats, signal connectors such as RCA and XLR, finished power, speaker, line, digital, USB and HDMI cables, and power distributors. It also makes bulk cable and accessories for phono and disc treatment.
Read more about Furutech Show less
A cryogenic and demagnetising treatment
The Alpha Process combines cryogenic treatment with demagnetisation, and Furutech applies it to its alpha-treated pure copper. It sits alongside Ohno Continuous Cast single-crystal copper in the conductor line-up, so the Furutech catalogue includes more than one route to a pure copper conductor.
Copper, silver and hybrid conductors
Furutech's materials include silver-plated copper and copper-silver hybrids as well as OCC and alpha-treated copper. DUCC and PC-Triple C copper appear in some of its cables. This range of conductors means the same plug design can be paired with different cable types.
NCF material and interference absorption
Furutech describes its NCF, short for Nano Crystal Formula, as generating negative ions and converting thermal energy into far infrared energy. It also uses a material called GC-303 to absorb electromagnetic interference. These are Furutech's own descriptions of what the materials are designed to do.
Why we stock Furutech
We do not just sell Furutech, we build with them. Their plugs and connectors go onto the custom cables we make in our own workshop, including cables for other brands in our range. When you fit a component by hand several times a week, you find out quickly whether it is well made.
Specifications
General
- Brand: Furutech
- Model: NCF Power Vault-E
- Type: Premium performance power distributor, unfiltered
- Outlets: 8 x Schuko (FI-E30 NCF(R))
- AC Input: 10A IEC inlet
- Rated: 10A 250V AC 2500W
- Ground/Earth Connection: Chassis grounding post
Sockets and Inlet
- Receptacles: 8 High End Performance FI-E30 NCF (R) Schuko sockets, KEMA-KEUR rated
- NCF Booster Brace-Single: 8 power connector damping supports
- IEC Inlet: FI-09 NCF (R), α (Alpha) pure copper conductor, rhodium-plated
Construction
- Chassis: CNC machined special-grade aluminium alloy with hairline anodised surface
- Internal Wiring: Alpha-12, stranded α (Alpha)-OCC conductor wire treated with Furutech’s α (Alpha) Cryogenic and Demagnetizing Process
- Insulation: UL compliant special grade flexible PVC (UL-CL3)
- Solder: Special alloy solder
- Materials Processing: Metal parts treated with α (Alpha) Cryogenic and Demagnetizing Process
Weight and Dimensions
- Size: 350mm W x 169mm H x 137mm D approx. (without isolation spikes and spike supports)
- Weight: 10.8kg approx.
