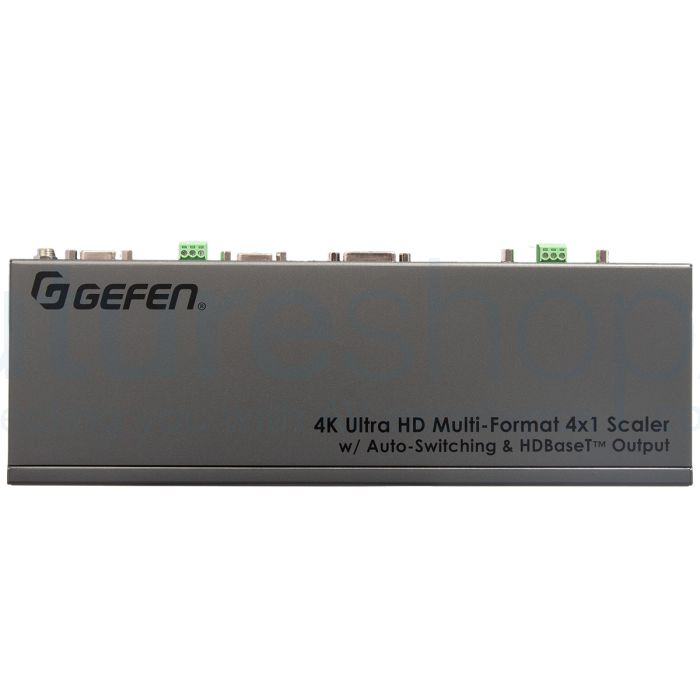

Gefen EXT-4K300A-MF-41-HBTLS 4K Ultra HD Multi-Format 4×1 Scaler

Item code: EXT-4K300A-MF-41-HBTLS

The Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching is an HDBaseT presentation switcher featuring HDMI, DisplayPort, DVI, and VGA inputs that can be switched manually or set to switch automatically. On the output end, the 4 x 1 offers split HD…
£1,332.00
£999.00
✓ Save %

Lowest price in the last 30 days:

New 3 Years warranty 30-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£999.00 ex. VAT
Available — built to order, dispatches in 48 Hours
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 30-day returns · Free burn-in · Built in our UK workshop · 3 Years warranty · Expert support on every order

Gefen EXT-4K300A-MF-41-HBTLS 4K Ultra HD Multi-Format 4×1 Scaler with Auto-Switching and Split HDMI and HDBaseT Outputs



The Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching is an HDBaseT presentation switcher featuring HDMI, DisplayPort, DVI, and VGA inputs that can be switched manually or set to switch automatically. On the output end, the 4 x 1 offers split HDMI and HDBaseT outputs, allowing you to send the signal to both a local and remote display at the same time. The HDBaseT output transmits a DCI/UHD 4K signal up to 130' and WUXGA/1080p60 signal up to 230' over a single CAT5e cable to a corresponding receiver, sold separately. The same cable can also carry PoH (Power-over-HDBaseT) to the receiver. For audio, an independent 3.5mm input is linked to the DVI and VGA video inputs, and a 3-pin Phoenix output allows you to de-embed the HDMI or DisplayPort audio. The scaler/switcher can be controlled via the front panel, IR remote control, contact closure, and RS-232 serial control.

The HDMI input supports DCI 4K at 24/30 Hz 4:4:4 and UHD 4K at 60 Hz 4:2:0 and 30 Hz 4:4:4. The DisplayPort input supports up to UHD 4K. The HDMI and HDBaseT ports also support up to 7.1-channel LPCM and HBR (High-Bit Rate) lossless digital audio, such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.

The DVI and VGA inputs support up to WUXGA and 1080p resolution, while a built-in scaler is capable of upscaling lower resolution DVI and VGA signals with legacy aspect ratios to widescreen WUXGA or 1080p 60 Hz signals, allowing for better presentations and more seamless switching transitions between the inputs.

The 4 x 1 has advanced EDID management to ensure that your sources are optimized for the displays being used. Encased in a compact housing, the switcher can be set on a desktop or other surface or mounted hidden away using the included mounting brackets. The HDMI ports, the power port, and all but the DisplayPort inputs feature locking connectors to allow for reliable connections.



Features

  • HDBaseT presentation switcher compatible with the optional EXT-UHDA-HBTL-RX receiver
  • HDMI, DisplayPort, DVI, and VGA inputs can be switched manually or automatically
  • Split HDMI and HDBaseT outputs send the signal to a local and remote display simultaneously
  • Transmits a DCI/UHD 4K signal up to 130' and WUXGA/1080p signal up to 230' over a single CAT5e cable
  • 3.5mm audio input
  • 3-pin Phoenix de-embedder audio output
  • Scales DVI and VGA to widescreen WUXGA/1080p at 60 Hz
  • Front panel, IR remote control, contact closure, and RS-232 control
  • 340 MHz TMDS clock maximum
  • 10.2 Gb/s bandwidth
  • HDMI 2.0 with HDCP 2.2 and 1.4
  • DisplayPort 1.1 with HDCP 2.2 and 1.4
  • DVI with HDCP 1.4
  • LPCM 7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through
  • 3DTV pass-through
  • CEC pass-through
  • Lip sync pass-through
  • Advanced EDID management
  • Field-updateable firmware via micro-USB port, using the Gefen Syner-G software
  • Locking HDMI, DVI, VGA, and power connectors
  • Power-over-HDBaseT (PoH)
  • LED indicators


Specification

  • Recommended HDBaseT™ Receiver: EXTUHDA-HBTL-RX
  • Maximum TMDS Clock: 340 MHz
  • Total Signal Bandwidth/Data Rate: 10.2 Gbps
  • Video Input Connectors: (1) HDMI Type A 19-pin, locking, female; (1) DisplayPort™ 20-pin, female; (1) DVI 29-pin, female, digital and
  • analog; (1) VGA HD-15, female
  • Video Output Connectors: (1) HDMI Type A 19-pin, locking, female; (1) HDBaseT™ RJ-45, shielded
  • L/R Analog Audio Input port: (1) 3.5mm mini-stereo jack
  • L/R Analog Audio Output port: (1) 3-pin Phoenix with removable plug
  • Input Control port: (1) 3-pin Phoenix with removable plug
  • RS-232 port: (1) DB-9, female
  • IR In/Ext port: (1) 3.5mm mini-stereo jack
  • IR Extender type: EXT-RMT-EXTIRN
  • Firmware Update port: (1) USB-Micro-B, female
  • Power Indicator LED: (1) Blue
  • HDMI Input Indicator LED: (1) Green
  • DisplayPort™ Input Indicator LED: (1) Green
  • DVI Input Indicator LED: (1) Green
  • VGA Input Indicator LED: (1) Green
  • Auto-Switch-On Indicator LED: (1) Green
  • Input Select Switch (hold to select Auto or Manual): (1) tact-type
  • POH On/Off Switch: (1) slide-type
  • Power Supply Connector: (1) 5.5mm barrel/2.1mm pin, Locking
  • Power Supply: (1) 12V DC, locking, 5.5mm barrel/2.1mm pin
  • Power Consumption: Not powering a Receiver: 10W maximum Powering a Receiver: 22W maximum
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, noncondensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, noncondensing
  • MTBF: 50000 hours
  • Dimensions (W x H x D, not including the connectors): Not including the mounting brackets: 12" x 1.2" x 4" (305mm x 30mm x 100mm)
  • Including the mounting brackets: 13.1" x 1.2" x 4" (332mm x 30mm x 100mm)
  • Net Weight: 1.3 lbs. (0.6 kg)
  • Shipping Weight: 2.7 lbs. (1.25 kg)
