Gefen EXT-DVI-142DLN 1x2 DVI Dual Link Distribution Amplifier

£522.00 Special Price £469.80 £391.50
SKU
EXT-DVI-142DLN
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The new and improved dual link 1:2 DVI DL Distribution Amplifier splits video using a dual link DVI source such as a computer to two DVI dual link outputs. Product Code - EXT-DVI-142DLN

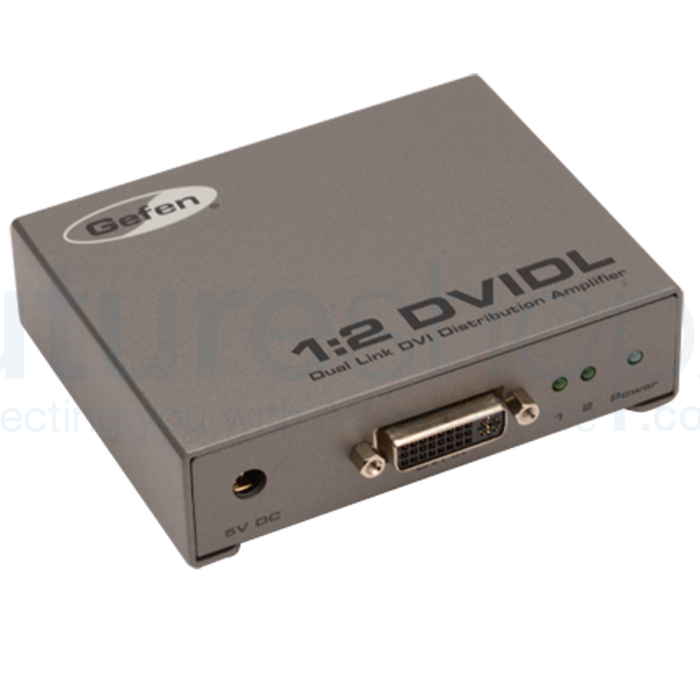

Gefen EXT-DVI-142DLN 1x2 DVI Dual Link Distribution Amplifier



The new and improved dual link 1:2 DVI DL Distribution Amplifier splits video using a dual link DVI source such as a computer to two DVI dual link outputs such as monitors, without losing picture quality or the high resolution. Multiple1:2 DVI DL units can be cascaded from one to the next to create a flexible Dual Link DVI distribution system that can connect to multiple displays.



How it works

Connect a Dual Link DVI source to the 1:2 DVI DL unit using the included dual link DVI cable. Connect up to two Dual Link DVI devices to the DVI outputs. Connect the included 5V DC power supply to the unit using any available electrical AC out.



Features:

  • Split a Dual Link DVI signal to two DVI Dual Link outputs
  • Allows simultaneous display of source on two screens
  • Supports Single Link DVI resolutions up to 1920 x 1200, and dual-link up to 3840 x 2400
  • Auto EQ compensates for any imperfections in the image
  • Power On indicator
  • DVI Link indicators
  • Supports DDWG standard for DVI-compliant monitors
  • HDCP pass-through on output #1

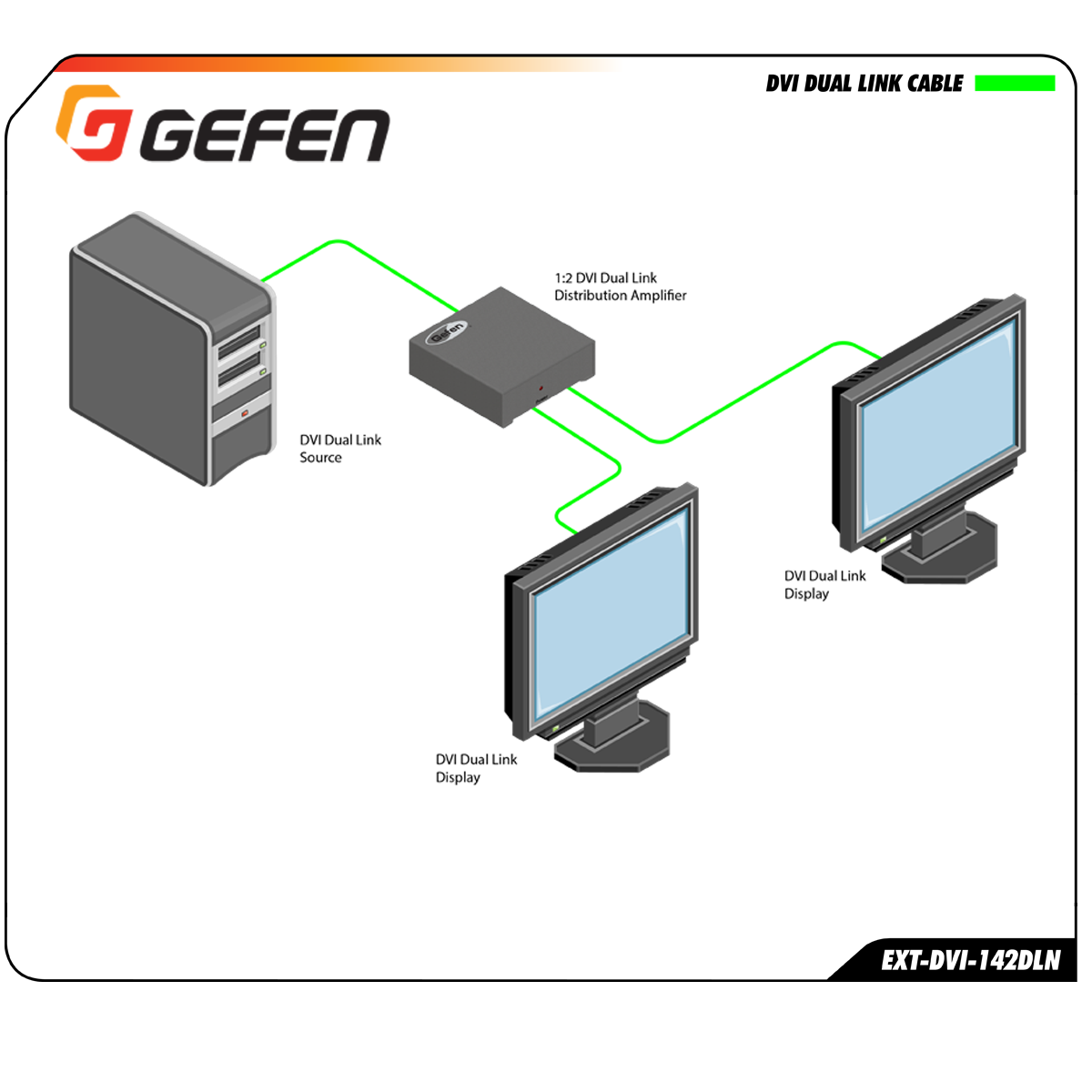

Schematicsd



Specifications:

  • Maximum Pixel Clock: 2 x 165 MHz
  • Video Input Connector: (1) DVI-D, 29-pin, female
  • Video Output Connectors: (2) DVI-D, 29-pin, female
  • Power On indicator: (1) LED, blue
  • Link indicators: (2) LED, green
  • Power Consumption: 5 W (max.)
  • Power Supply: 5V DC
  • Operating Temperature: 0 to +40°C
  • Dimensions (WxHxD): 102mm x 32mm x 83mm
  • Shipping Weight: 0.9 Kgs



Box Contains:

  • 1x2 Dual Link DVI Distribution Amplifier (EXT-DVI-142DLN)
  • 6 ft. Dual Link DVI Copper Cable (M - M) (CAB-DVIC-DL-06MM)
  • 5V DC Power Supply (EXT-PS526AIPN)
  • Quick-Start Guide (QSG-DVI-142DLN)

Specifications:

  • Maximum Pixel Clock: 2 x 165 MHz
  • Video Input Connector: (1) DVI-D, 29-pin, female
  • Video Output Connectors: (2) DVI-D, 29-pin, female
  • Power On indicator: (1) LED, blue
  • Link indicators: (2) LED, green
  • Power Consumption: 5 W (max.)
  • Power Supply: 5V DC
  • Operating Temperature: 0 to +40°C
  • Dimensions (WxHxD): 102mm x 32mm x 83mm
  • Shipping Weight: 0.9 Kgs
