Gefen EXT-UHD600-12 4K Ultra HD 600 MHz 1:2 Splitter w/ HDR

£410.40 £342.00
SKU
EXT-UHD600-12
Free UK Delivery
24 Months
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. Gefen’s EXT-UHD600 Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support.

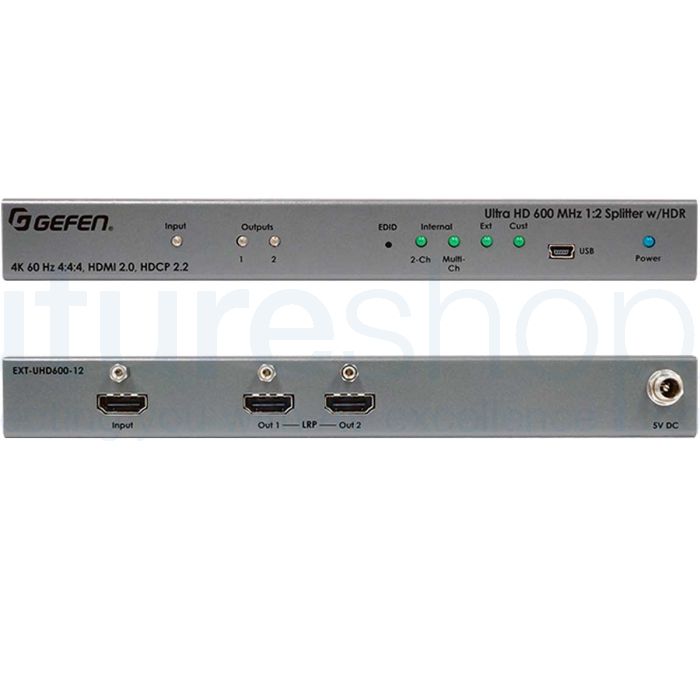

Gefen EXT-UHD600-12 4K Ultra HD 600 MHz 1:2 Splitter w/ HDR



Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. Gefen’s EXT-UHD600 Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefen’s EXT-UHD600 product line creates a seamless bridge between the digital media of yesterday, today, and tomorrow. Supporting the digital rights management standard for Ultra High Definition content, HDCP 2.2, as well as the legacy HDCP 1.4, Gefen’s EXT-UHD600 products can handle the signal routing needs for both existing and new components in commercial and residential AV systems.

Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are also supported. These splitters have been specifically designed to support multiple layers of cascading** for flawless performance in large video distribution and signage applications, supporting up to hundreds of displays. Gefen’s exclusive Long Reach Power (LRP) feature provides 5V at 500 mA (as opposed to HDMI standard 55 mA) on pin 18 of HDMI outputs 1 and 2. This enhanced current capability enables select extender devices to be powered through their HDMI input port without the need for an external power supply. Gefen’s EXT-UHD600 product line was designed to work with Gefen’s Syner-G™ software suite. EDID and HDCP management, status monitoring, and firmware updates can be done in minutes using the Gefen Syner-G™ software. The Gefen EXT-UHD600-12 splitter features a low profile, compact, and surface-mountable enclosure that can fit in tight places. It also accommodates Gefen locking HDMI cables for secure connections.



Features:

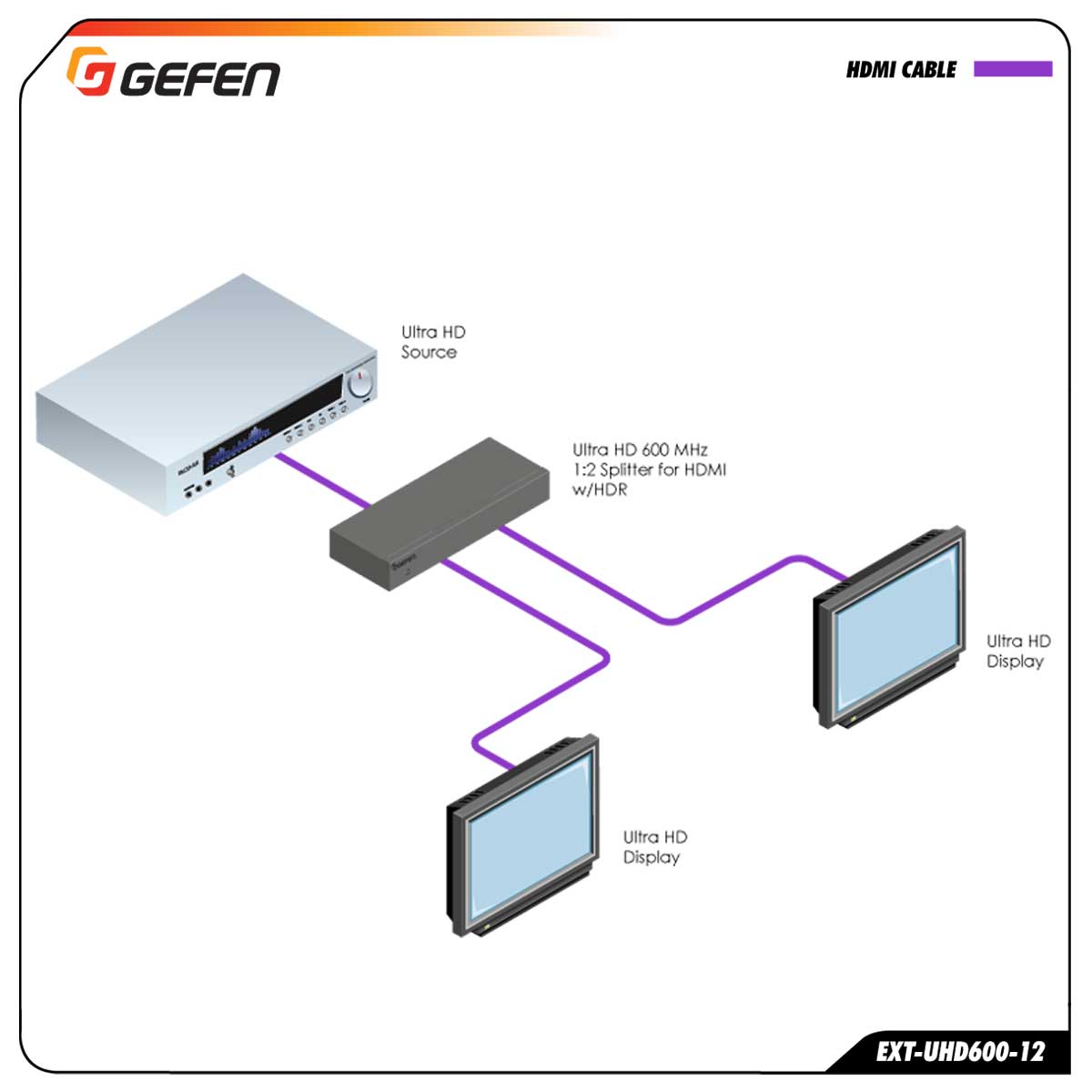

  • Simultaneously displays an Ultra Hi-Def source on two Ultra HD displays
  • Specifically designed to support multiple layers of splitting/cascading** in large video distribution and signage applications, supporting up to hundreds of displays
  • Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920x1200 (WUXGA)
  • Supports HDCP 2.2 and 1.4
  • Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
  • 3DTV pass-through
  • Lip Sync pass-through
  • EDID Management and Audio Mode selectors for rapid integration of source and displays
  • Supports uncompressed LPCM digital audio up to 7.1 channels
  • Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA), with HDMI-to-DVI adapters (not included)
  • Advanced EDID and HDCP Management via USB, using the Gefen Syner-G™ software
  • In-field firmware update via USB, using the Gefen Syner-G™ software
  • Long Reach Power (LRP) provides 500 mA at 5V on pin 18 of HDMI outputs 1 and 2. Enables select extender devices to be powered through their HDMI input port
  • Locking power connector
  • Low-profile, surface-mountable enclosure



EXT-UHD600



Specification:

  • Maximum Pixel Clock: 600 MHz
  • HDMI Input Connector: (1) Type A 19-pin female, locking
  • HDMI Output Connectors: (2) Type A 19-pin female, locking
  • HDMI Outputs 1 and 2 pin 18 current capability at 5V: 500 mA
  • Cascading ability**: Typically up to 10 layers without HDR and up to 6 layers with HDR
  • USB Port: (1) Mini-B
  • Power Indicator: (1) LED, blue
  • Input Indicator: (1) LED, green
  • Output Indicators: (2) LEDs, green
  • EDID/Audio Indicators: (4) LEDs, green
  • EDID/Audio Selector Switch: (1) recessed tact switch
  • DC Power Connector: (1) Locking type
  • Power Supply: 5V DC
  • Power Consumption: 6.5W
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 300000 hours
  • Dimensions (W x H x D, without connectors or feet):
    8.4” x 1“ x 3.7” (213mm x 25mm x 93mm)
  • Net Weight: 0.75 lbs (0.3 kg)
  • Shipping Weight: 2.2 lbs (1 kg)



Box Includes:

  • 1 x Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR
  • 1 x 6 ft locking HDMI cable
  • 1 x 5V Power Supply w US/EU/UK/AU plugs
  • 2 x Surface Mounting L-Brackets
  • 4 x M3 6 mm Machine screws for Mounting the L-Brackets to unit
  • 2 x 6-32 5 mm Machine screws for mounting the unit to
    Gefen EXT-RACK-1U-GRY (available separately)
  • 4 x Self-Adhesive Rubber Feet
  • 1 x Quick-Start Guide



7.1DD HDCP 4k HDR 1080P HDMI 4KUHD600

Specification:

  • Maximum Pixel Clock: 600 MHz
  • HDMI Input Connector: (1) Type A 19-pin female, locking
  • HDMI Output Connectors: (2) Type A 19-pin female, locking
  • HDMI Outputs 1 and 2 pin 18 current capability at 5V: 500 mA
  • Cascading ability**: Typically up to 10 layers without HDR and up to 6 layers with HDR
  • USB Port: (1) Mini-B
  • Power Indicator: (1) LED, blue
  • Input Indicator: (1) LED, green
  • Output Indicators: (2) LEDs, green
  • EDID/Audio Indicators: (4) LEDs, green
  • EDID/Audio Selector Switch: (1) recessed tact switch
  • DC Power Connector: (1) Locking type
  • Power Supply: 5V DC
  • Power Consumption: 6.5W
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 300000 hours
  • Dimensions (W x H x D, without connectors or feet):
    8.4” x 1“ x 3.7” (213mm x 25mm x 93mm)
  • Net Weight: 0.75 lbs (0.3 kg)
  • Shipping Weight: 2.2 lbs (1 kg)
