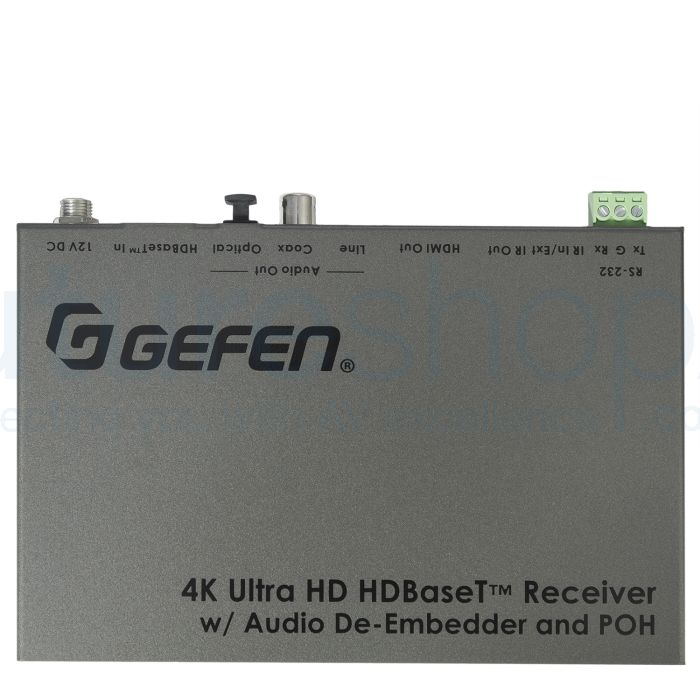

Gefen EXT-UHDA-HBTL-RX 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH

£410.40 Special Price £369.36 £307.80
SKU
EXT-UHDA-HBTL-RX
Free UK Delivery
3 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable. It also de-embeds analog L/R, TOSLINK® optical digital, and coaxial digital audio from the video for use with a separate audio system, enhancing the impact of presentations. This Receiver uses Gefen’s implementation of the HDBaseT™ technology with enhanced functionality.

Register your interest above to receive notifications on availability.

Gefen EXT-UHDA-HBTL-RX 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH

 Extend HDMI with audio breakout up to 70 meters/230 feet, over a single CAT-5

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable. It also de-embeds analog L/R, TOSLINK® optical digital, and coaxial digital audio from the video for use with a separate audio system, enhancing the impact of presentations. This Receiver uses Gefen’s implementation of the HDBaseT™ technology with enhanced functionality. It accommodates 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and supports HDMI 2.0 resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:2:0, or 30 Hz 4:4:4), with HDCP 2.2 or 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are passed through to the HDMI output. The EXT-UHDA-HBTL-RX also extends RS-232 and 2-way IR when used with a compatible Sender unit, facilitating the control of A/V sources placed near the Sender from the viewing location, and sending commands from the head end to control the display or another device placed near the Receiver unit. It can also send RS-232 commands from a third-party controller placed by the Receiver, for switching, scaler controls, and EDID management of a compatible Sender unit. Bi-Directional HDBaseT™ standard POH (Power Over HDBaseT™) technology can supply power remotely from the Receiver unit to a compatible Sender unit, or it can pass power from a compatible Sender unit to the Receiver, using the same CAT-5 cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. The Receiver’s small, ultra-low-profile enclosure can be securely surface-mounted and conveniently hidden away from sight behind the display. It also accommodates a Gefen locking power supply plug for secure connection.

Shielded (STP) CAT-5e or better cable is recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sources of electromagnetic interference.

Features:

  • Supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
  • Extends HDMI, 2-way IR, and RS-232 over a single CAT-5e:
    • 4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
    • 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
    • 4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
    • 1080p Full HD (60 Hz) or WUXGA (1920x1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
  • HDMI Features Supported:
    • HDMI 2.0
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color (at 1080p)
    • LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • RS-232 control of switching, scaler, and EDID management functions of a compatible Sender
  • Bi-Directional RS-232 extension when used with a compatible Sender
  • 2-way IR extension when used with a compatible Sender
  • Digital (optical and coaxial) and Analog audio breakout
  • Bi-Directional Power over HDBaseT™ (POH) provides power to the Receiver or a compatible Sender unit over the link cable - only one side will need external power
  • Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
  • Field-updateable firmware via RS-232 and using the Gefen Syner-G™ software
  • Locking power connector
  • Compact, ultra-low-profile enclosure is surface-mountable and can be hidden away

Specification:

  • Maximum TMDS Clock 300 MHz
  • Total Signal Bandwidth/Data Rate 10.2 Gbps
  • Video Output Connector HDMI Type A 19-pin, female
  • Link Connector RJ-45, shielded
  • L/R Analog Audio Output port 3.5mm mini-stereo jack
  • Optical Digital Audio Output port TOSLINK®
  • Coaxial Digital Audio Output port RCA, female
  • RS-232 port 3-pin Phoenix
  • IR In/Ext port 3.5mm mini-stereo jack
  • IR Out port 3.5mm mini-mono jack
  • IR Extender type EXT-RMT-EXTIRN
  • Power Indicator LED Blue
  • Link Indicator LED Green
  • HDCP Indicator LED Green
  • RS-232 Pass-Thru/Prog Switch 3-position, slide-type
  • Power Supply 12V DC, locking, 5.5mm barrel/2.1mm pin
  • Power Consumption Not powering a Sender 9W maximum
  • Powering a Sender 22W maximum
  • Operating Temperature +32 to +122 °F (0 to +50 °C)
  • Operating Humidity 5% to 90% RH, non-condensing
  • Storage Temperature -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity 0% to 95% RH, non-condensing
  • MTBF 50000 hours
  • Overall Dimensions (W x H x D, not including the connectors) Not including the mounting brackets: 6" x 0.65" x 4" (152mm x 17 x 100mm)
  • Including the mounting brackets: 7" x 0.65" x 4" (178mm x 17 x 100mm)
  • Net Weight 0.6 lbs. (0.27 kg)

Box Contains:

  • Receiver unit (EXT-UHDA-HBTL-RX)
  • 12V 3A Power Supply (EXT-PS12U3IP-LP21-6)
  • 3-pin Phoenix plug (attached to unit)
  • Mounting Brackets X 2
  • Quick Start Guide

Features:

  • Supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
  • Extends HDMI, 2-way IR, and RS-232 over a single CAT-5e:
    • 4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
    • 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
    • 4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
    • 1080p Full HD (60 Hz) or WUXGA (1920x1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
  • HDMI Features Supported:
    • HDMI 2.0
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color (at 1080p)
    • LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • RS-232 control of switching, scaler, and EDID management functions of a compatible Sender
  • Bi-Directional RS-232 extension when used with a compatible Sender
  • 2-way IR extension when used with a compatible Sender
  • Digital (optical and coaxial) and Analog audio breakout
  • Bi-Directional Power over HDBaseT™ (POH) provides power to the Receiver or a compatible Sender unit over the link cable - only one side will need external power
  • Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
  • Field-updateable firmware via RS-232 and using the Gefen Syner-G™ software
  • Locking power connector
  • Compact, ultra-low-profile enclosure is surface-mountable and can be hidden away
