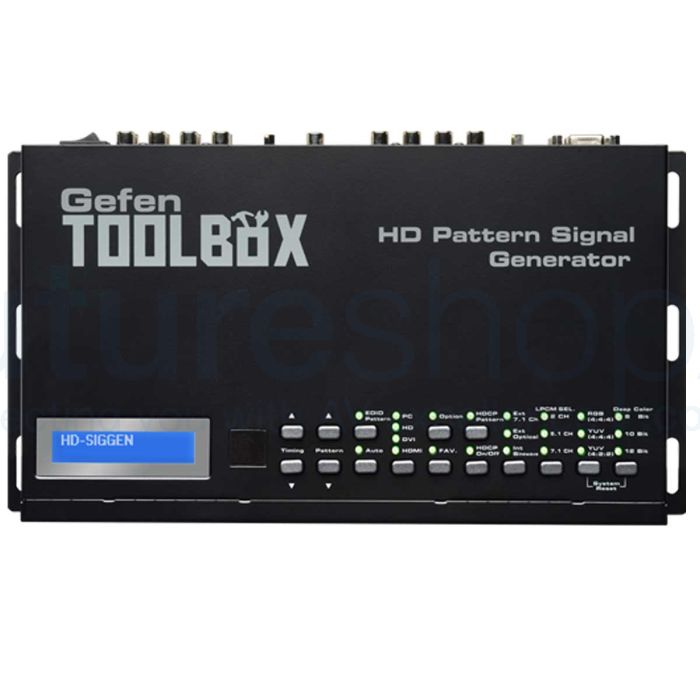

Gefen GTB-HD-SIGGEN HD Pattern Signal Generator

Item code: GTB-HD-SIGGEN

The GefenToolbox HD Pattern Signal Generator is the most advanced testing device for your audio and video equipment:
£1,468.80
£1,101.60
✓ Save %

Lowest price in the last 30 days:

New 24 Months warranty 30-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£1,101.60 ex. VAT
Available — built to order, dispatches in 48 Hours
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 30-day returns · Free burn-in · Built in our UK workshop · 24 Months warranty · Expert support on every order

Gefen GTB-HD-SIGGEN HD Pattern Signal Generator



The GefenToolbox HD Pattern Signal Generator is the most advanced testing device for your audio and video equipment: 39 built-in timings, 41 patterns, and 4 data analysis patterns that provide over a thousand testing combinations for both analog and digital devices. The front panel LCD screen provides easy viewing of functions and features for each timing / pattern. This device can be conveniently controlled via the front panel buttons, the IR remote, or the downloadable software from the Gefen Web site. In addition to its portability, this signal generator is wall-mountable and field-upgradeable.


How It Works

Connect the HDMI or VGA output ports of the GefenToolbox HD Pattern Signal Generator to your HDTV display (DVI displays can be connected using a HDMI-DVI adapter, and Component Video displays by using a VGA-Component Video adapter). Power-on all equipment. The front panel LCD will display all features and options of the active timing and pattern. You can feed digital or analog audio into the generator's rear panel and hear multi-channel digital audio or use the built-in sine wave test tone.


Features:

  • Multi-format video output for SD and HD video up to 1080p
  • PC/HD resolutions up to UXGA / WUXGA (1920 x 1200)
  • 39 timings, 41 patterns, and 4 data analysis patterns
  • Supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:4:2 color spaces
  • Supports NTSC and PAL frame rates
  • 2 CH, 5.1 CH, and 7.1 CH LPCM internal sine wave generator
  • RS-232 control via the downloadable software from the Gefen Web site
  • Small form factor; easy to transport
  • Supports HD timings for VGA output
  • HDCP Pattern
  • Supports reading and copying EDID functionality
  • User Friendly Interface - LCD Display, LED indicators and Software
  • Deep Color support up to 12-bit
  • HDMI 1.3 and DVI 1.0 Compliant
  • HDCP Compliant

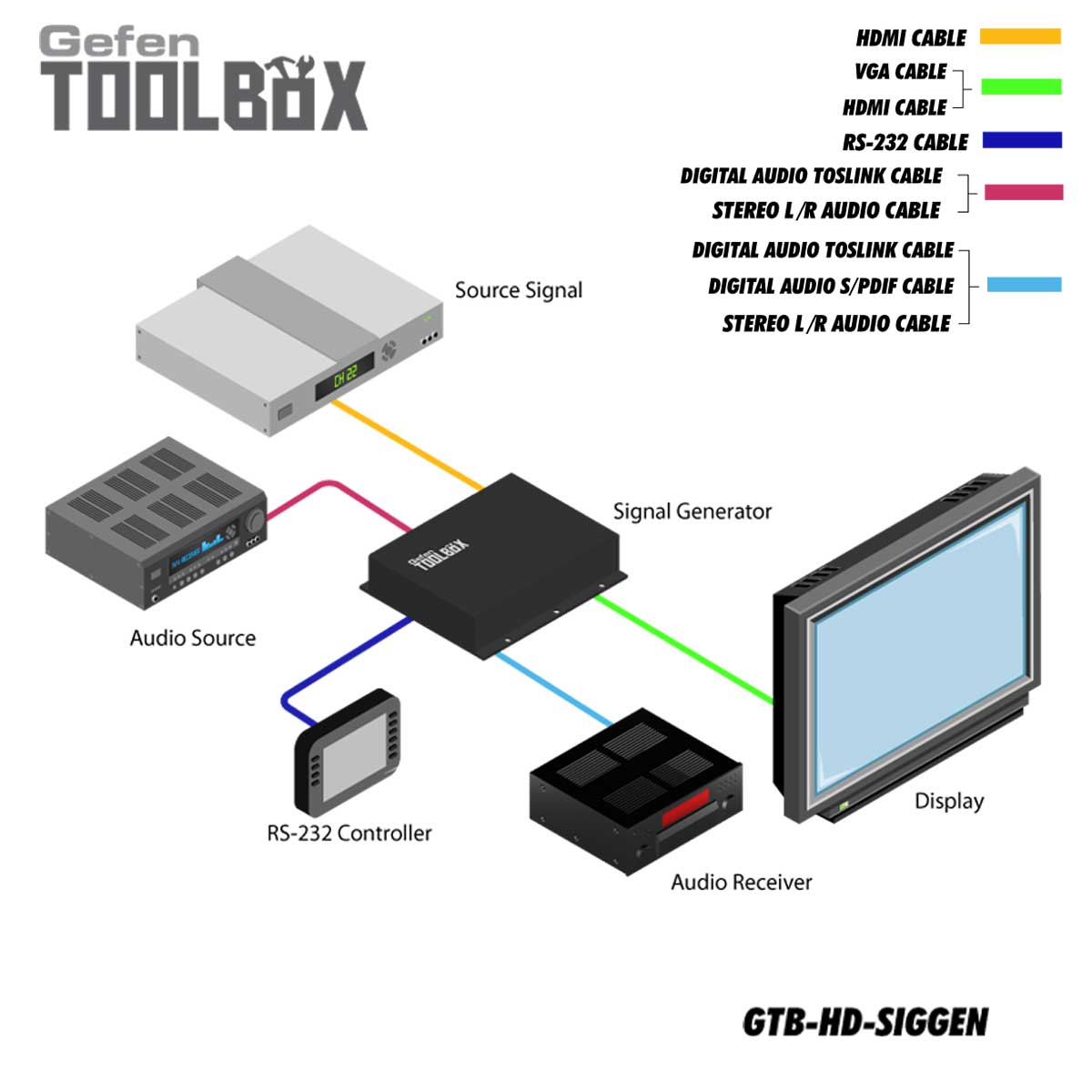

Schematics



Specifications:

  • Maximum Pixel Clock: 225 MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)
  • Video Input: (1) HDMI Type-A 19-pin, female
  • Analog Video Outputs: (1) HD-15, female VGA/PC/HD (supports Component Video with VGA Adapter)
  • Digital Video Outputs: (1) HDMI Type-A 19-pin, female (supports DVI with HDMI-to-DVI adapter)
  • Analog Audio Inputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)
  • Analog Audio Outputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)
  • Digital Audio Input: (1) TOSLINK
  • Digital Audio Outputs: (1) TOSLINK, (1) S/PDIF
  • Analog Audio Input Impedance: 10 kOhms
  • Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
  • SNR: > 90 dB
  • THD: < 0.001% at 1 kHz (2 V rms)
  • Crosstalk: > 90 dB
  • RS-232 Port: DB-9, female
  • Power Supply: 5V DC
  • Power Consumption: 13 W (max.)
  • Dimensions: 11.0" W x 6.5" H x 1.7.5" D
  • Shipping Weight: 6 lbs.



Box Contains:

  • (1) GefenToolBox HD Pattern Signal Generator
  • (1) 6 ft. HDMI cable (M-M)
  • (1) IR Remote
  • (1) 5 V DC Locking Power Supply (EXT-PS526AIP)
  • (1) User Manual
