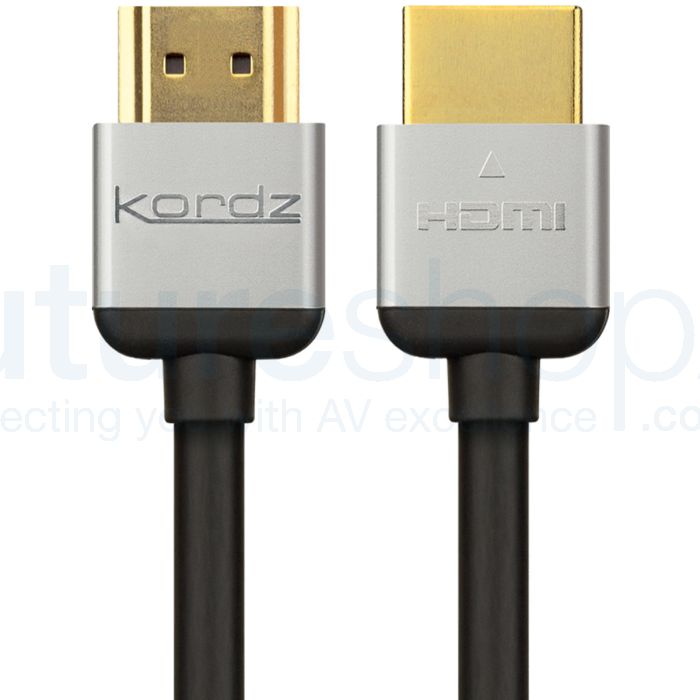

Kordz R.3 Rack Install HDMI Cable Series - (HDMI 2.0, 4K, THX Certified)

As low as £41.25 £34.37
SKU
Kordz R.3 Rack HDMI
Lifetime
New
24 hours
what's this?

Select the desired length for your cable from the drop-down menu.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Kordz R.3 is engineered for bespoke commercial AV rack installations. The unique combination of the die-cast HDMI connector, flexible 32AWG halogen free cable and small profile lightweight design results in unrivalled installation flexibility and robustness.

Kordz R.3 Rack Install HDMI Cable Series - (HDMI 2.0, 4K & THX Certified)



Kordz R.3 is engineered for bespoke commercial AV rack installations. The unique combination of the die-cast HDMI connector, flexible 32AWG halogen free cable and small profile lightweight design results in unrivalled installation flexibility and robustness. Engineered and built to deliver maximum commercial up-time, 1-10ft lengths in 1ft (0.3m) increments for precision rack fitoffs, Solid 32AWG OFC conductors, Induction soldered pin transitions for benchmark inter-terminal uniformity, Anti-fatigue Die-cast Zn alloy connectors tested to ≥1,000 cycles & 2kg retention force, 100% of units tested on the production line for NIL Bit Error Rate (BER) @ 340Mcsc, <0.05% in-field failure rate, Halogen free construction, Limited lifetime warranty, Licensed HDMI 2.0 Adopter company.



Features:

HDMI Compliance HDMI CTS Certification: High Speed with Ethernet
  Certified Data Rate : 3.4Gbpsc, 10.2Gbps aggregate
  Supported Data Rate : > 3.4Gbpsc (4K UHD)
  Supported HDMI Clock: 27-340MHz
 Construction  Primary Conductors: Solid 32AWG OFC
   Insulation on TMDS: Skinned foam PE ≤1.45 relative permittivity
   Insulation on 4C + HEAC Pairs: Solid polyolefin ≤ 2.0 relative permittivity

   Shielding on TMDS Pairs: Al/Mylar, 25% overlap

   Shielding Overall: Al/Mylar + Cu 90% coverage braid

   Cable Jacket: Halogen-free TPE, black 4.8mm ∅
   HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1μ” 24K Gold plated

   HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
   Termination Contactless IR induction soldering
   HDMI Backshell: Al anodised front with Halogen-free TPE strain relief
 Mechanical  Mounting Length: 47.0mm / 1.85”
   Cable Bend Radius: 20.0mm / 0.79”
   Retention Force (nominal): 20N (approx. 2kg / 4.4lbs) +10/-5%

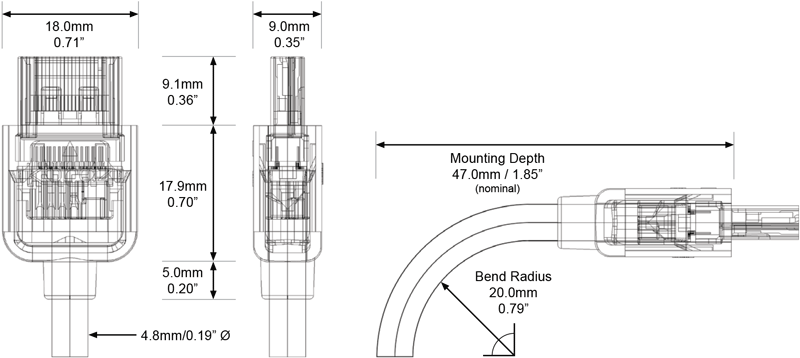

Kordz R3 Physical Dimensions



Applications

  • Mission critical rack installations to mitigate risk typically associated with HDMI connectivity.
  • high shielding permits cable bundling with immunity from interference & alien crosstalk,benchmark low failure rate and robust construction for maximum commercial reliability,
  • 0.3m length increments enables optimised routing without surplus cable,
  • UHD video and professsional graphics,
  • Marine,
  • Hotels and bars,
  • Board room and training centres, suitable for repetitive plug/unplug events,
  • Short range digital signage & video wall connectivity,
  • HDMI 2.0 scaleable.



Specifications:

Video Format Support Data Rate Per Channel / Aggregate, TMDS Bandwidth
480i/p, 576i/p :  ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/60, 1080i/60 :  742.5Mbpsc/2.22Gbps, 371.25MHz
1080p 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 23.98/24/29.97/30
 742.5Mbpsc/2.22Gbps, 371.25MHz
  • 50/59.94/60
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-24/30
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-50/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p 10/12/16-bit RGB/YCbCr 4:4:4 :
  • 50/59.94/60fps
 1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K) HDMI 1.4b, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 4096x2160p/24 (SMPTE)
 2.97Gbpsc/8.91Gbps, 1.485GHz
  • 3840x2160p/23.98/24/29.97/30
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0, 8-bit YCbCr 4:2:0 :
  • 2160p*/50/59.94/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0 mode, 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0 :
  • 2160p*/50/59.94/60-2D (CEA-861-F)
 5.94Gbpsc/17.82Gbps, 2.97GHz
  • 2160p*30-3D
 5.94Gbpsc/17.82Gbps, 2.97GHz
 VESA graphics :  Supports all as defined by HDMI specification
 3D Video :  Supports all as supported and/or mandated by HDMI specification
 Color Spaces :  RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
 Audio Formats Support :  PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
 3D Audio (10.2 / 22.2 / 30.2ch :  Supported, device & video format dependent
 HDMI Ethernet Channel :  Supported, system dependent
 HDMI Audio Return Channel :  Supported, Single Mode & Common Mode



About The Kordz Company

Kordz is an esteemed Australian company established in 2003 to cater to the unique requirements of the custom and commercial AV installation community. With a strong focus on delivering reliable high-definition connectivity solutions, Kordz has grown into a highly regarded brand with numerous awards.

As an active member of the HDMI Adopter program since 2005, Kordz specialises in providing dependable long-reach HDMI cables, ensuring the seamless transmission of high-quality audio and video signals. Their commitment to excellence is evident in their practical and elegant design, meticulous manufacturing processes, and unwavering support for education initiatives. These factors are crucial in ensuring the successful integration of Kordz products by professional installers.

Kordz offers a comprehensive range of cables, including their renowned Kordz Speaker Cables and Kordz HDMI cables. These cables are trusted by industry professionals for their exceptional performance and reliability, making them the ideal choice for demanding AV installations.

With Kordz, customers can expect nothing short of superior connectivity solutions that enable the flawless transmission of audio and video signals in custom and commercial AV setups. Their dedication to quality, innovation, and installer support sets Kordz apart as a leader in the industry, providing peace of mind and optimal performance for every installation project.



Specifications:

Video Format Support Data Rate Per Channel / Aggregate, TMDS Bandwidth
480i/p, 576i/p :  ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/60, 1080i/60 :  742.5Mbpsc/2.22Gbps, 371.25MHz
1080p 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 23.98/24/29.97/30
 742.5Mbpsc/2.22Gbps, 371.25MHz
  • 50/59.94/60
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-24/30
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-50/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p 10/12/16-bit RGB/YCbCr 4:4:4 :
  • 50/59.94/60fps
 1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K) HDMI 1.4b, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 4096x2160p/24 (SMPTE)
 2.97Gbpsc/8.91Gbps, 1.485GHz
  • 3840x2160p/23.98/24/29.97/30
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0, 8-bit YCbCr 4:2:0 :
  • 2160p*/50/59.94/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0 mode, 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0 :
  • 2160p*/50/59.94/60-2D (CEA-861-F)
 5.94Gbpsc/17.82Gbps, 2.97GHz
  • 2160p*30-3D
 5.94Gbpsc/17.82Gbps, 2.97GHz
 VESA graphics :  Supports all as defined by HDMI specification
 3D Video :  Supports all as supported and/or mandated by HDMI specification
 Color Spaces :  RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
 Audio Formats Support :  PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
 3D Audio (10.2 / 22.2 / 30.2ch :  Supported, device & video format dependent
 HDMI Ethernet Channel :  Supported, system dependent
 HDMI Audio Return Channel :  Supported, Single Mode & Common Mode
