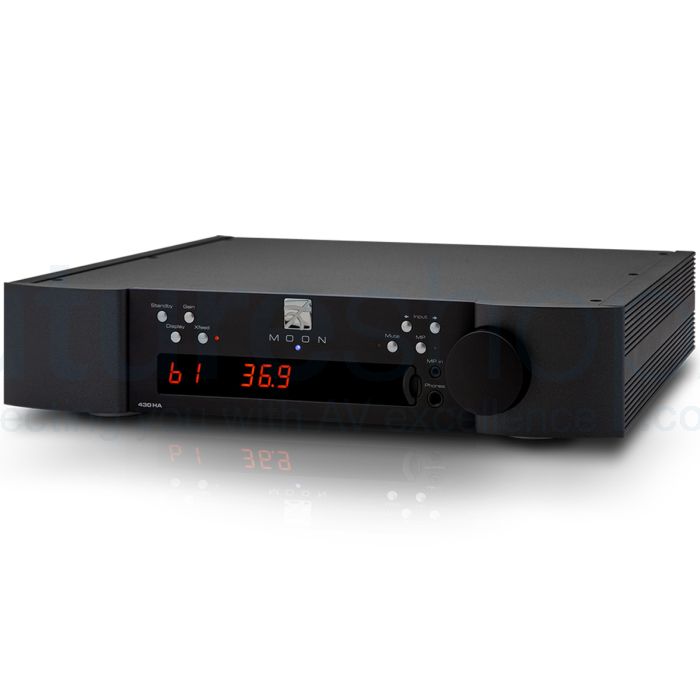

Moon by Simaudio 430HA/D Headphone Amplifier with Optional DAC
£3,500.00 £2,916.67
SKU
430HA/D
Free UK Delivery
10 Years
New
24 hours
The 430HA is a genuine “tour de force” loaded with numerous state-of-the-art features. This fully balanced, pure analogue headphone amplifier uses a discrete transconductance circuit topology, selectable gain setting (14 or 20dB), an oversized power supply and a defeatable analogue crossfeed circuit. Rated at 667mW at 600 ohms and 8W at 50 ohms, the 430HA will effortlessly drive any headphone to its full potential
Moon by Simaudio 430HA/D Headphone Amplifier with Optional DAC
The 430HA is a genuine “tour de force” loaded with numerous state-of-the-art features. This fully balanced, pure analogue headphone amplifier uses a discrete transconductance circuit topology, selectable gain setting (14 or 20dB), an oversized power supply and a defeatable analogue crossfeed circuit. Rated at 667mW at 600 ohms and 8W at 50 ohms, the 430HA will effortlessly drive any headphone to its full potential
For headphone enthusiasts who desire perfection, the 430HA is the ultimate solution. Borrowing several technologies developed for Sim Audio's more exotic and costlier Evolution series (M-LoVo, M-eVOL2) while incorporating the most advanced analogue audio circuitry, the 430HA will achieve the very best possible sonic performance from your headphones. The optional DSD256 and 32-bit PCM capable DAC can be used with virtually any digital source, such as a computer for streaming music, satellite TV receiver or Blu-Ray player, offering the same fidelity as your music system.
The 430HA is the new reference for headphone amplification and is destined to create a whole new set of standards for performance.
Features
- Defeatable analog Crossfeed circuit for better ‘spacialization’ and listening comfort
- Balanced Outputs are hidden behind sliding front panel window (2x 3-pin XLR, 1x 4-pin XLR), as well as a 1/4″ TRS jack, and both fixed & variable line-level single-ended RCA stereo pairs
- An oversized power supply using 2 toroidal transformers in conjunction with 8 stages of DC voltage regulation
- 4 stages of Sim Audio's M-LoVo (MOON Low Voltage) DC regulation circuit; a highly sophisticated circuit that is virtually free of noise, yielding an exceptionally fast, precise, and stable DC voltage. This circuit, found in the Evolution series 810LP Phono Preamplifier and 740P Preamplifier, results in a power supply with a virtually unmeasurable noise floor
- M-eVOL2 volume control circuit using MDAC’s (operating in a current steering R-2R configuration) which alter the audio signal’s amplitude, yielding no sonic degradation of the signal, regardless of the selected volume setting. This circuit, found in the Evolution series 600i & 700i Integrated Amplifiers and 740P Preamplifier, offers 530 steps and channel matching of 0.1dB
- 1 balanced XLR input and 3 single-ended line-level inputs, including a front-mounted 1/8″ mini-jack for personal media players
- Optional DAC with four (4) digital inputs (S/PDIF x 2, TosLink x 1 & USB x 1) allowing for use with virtually any digital source; Supports DSD64, DSD128 and DSD256 (USB input only); Supports PCM 16/44.4kHz to 24/192kHz (all inputs) and up to PCM 32/384kHz (USB input only)
- EuP compatible eco-friendly power (less than 0.5W) in standby mode with defeatable 20 minutes inactivity “auto shut off”
- 12 Volt trigger output for remote operations
- RS-232 port for (i) full unsolicited bidirectional feedback and (ii) firmware updates
- IR input for external control
- SimLink™ controller port for 2-way communications with other compatible MOON components
- Rigid chassis construction to minimize the effects of external vibrations
- Optimised selection of very high-quality electronic components
SimLink™
The SimLink™ connection allows for control of any SimLink equipped MOON system, enhancing ease of use, without having to use the IR remote. The MOON MiND Controller App can adjust the real volume control of a MOON system rather than using the most common digital attenuation method. This maintains the true fidelity of the music at any volume setting.
|
"The 230HAD does a good job with dynamics for the most part, particularly with big bold dynamic shifts where it can really let loose. It can go eerily quiet too, although low-level dynamics aren’t quite as expressive as the louder ones. n terms of balance, it’s a fairly neutral listen, but with a weighty enough bass that gives it a little more substance than the Hugo’s leaner presentation." What Hi-Fi? - February 2016 |
|
"Bass doesn’t dominate the balance, however – the clear mid-range and silky treble are given equal attention. There’s tons of detail, with the 230HAD bringing attention to even the subtlest cymbals and effects. The level of refinement and insight here easily justifies the price tag." Trusted Reviews - March 2016 |
|
"The Moon Neo 230HAD is refined and classically musical. It offers extraordinary clarity and precision, making it a great choice for born-again audiophiles. There's plenty of connectivity too, enabling it to be used either as a simple USB sound system, or integrated into something much more complex." TechRadar - April 2016
|
Specification
- Output power per channel @ 600Ω / 300Ω / 50Ω: 667mW / 1.33W / 8W
- Headphone Impedance: 20 - 600Ω
- Frequency Response (audible): 20Hz - 20kHz ±0.1dB
- Frequency Response (full range): 5Hz - 100kHz +0/-3dB
- THD @ 1kHz, 0dBFS (A-weighted): 0.005%
- Intermodulation distortion: 0.005%
- Signal-to-noise Ratio: 120dB
- Crosstalk: 110dB
- Input / Output Impedance: 22kΩ / 1.25Ω
- Shipping Weight: 22lb / 9.5kg
- Dimensions (W x H x D): 16.9 x 3.5 x 13.8 (in) / 42.9 x 8.9 x 35.1 (cm)
Included in the box
- AC power cable
- ‘CRM-3’ remote control with two ‘CR-2032’ batteries
- ‘SimLink™’ cable with 1/8” mini plug terminations on each end
- User Manual
About MOON by Simaudio
Simaudio products reproduce sound that is so pure and authentic it brings newfound proximity to the performer. As you never want those intimate moments with the artist to end, all MOON products are built to be enjoyed over a lifetime. Their mission is to convey the spirit and emotion of music through products of distinction. They value our respect for artists and musicians and this is matched only by their devotion to their customers. Dedicated to surprising and delighting, MOONS consistent creativity, passion and commitment have been redefining the industry for almost 40 years.
Simaudio are experienced audiophiles and music lovers, their specialists believe in the power of music. That is why, since 1980, Simaudio engineers and designers have been obsessed with surpassing the limits of sound purity and redefining the impossible. Their renowned customer service is professional and personalised thanks to their passionate team which is committed to your long-term satisfaction. No matter where you are located in the world, MOON will deliver the best sound experience to you.
Simaudio, are proud to build products that are sustainable, imparting a minimal impact on the environment. They favour responsible suppliers and subcontractors who share our philosophy of reducing our carbon footprint. Simaudio offers a 10-year warranty on all our products to respect their sustainability value. The pure sound of the instruments, the timbre of the voice, the bated breath. Simaudio believes that nothing should stand between the authenticity at the time of recording, and the listener. This proximity is their goal; this intimacy is our passion.
Specification
- Output power per channel @ 600Ω / 300Ω / 50Ω: 667mW / 1.33W / 8W
- Headphone Impedance: 20 - 600Ω
- Frequency Response (audible): 20Hz - 20kHz ±0.1dB
- Frequency Response (full range): 5Hz - 100kHz +0/-3dB
- THD @ 1kHz, 0dBFS (A-weighted): 0.005%
- Intermodulation distortion: 0.005%
- Signal-to-noise Ratio: 120dB
- Crosstalk: 110dB
- Input / Output Impedance: 22kΩ / 1.25Ω
- Shipping Weight: 22lb / 9.5kg
- Dimensions (W x H x D): 16.9 x 3.5 x 13.8 (in) / 42.9 x 8.9 x 35.1 (cm)
Included in the box
- AC power cable
- ‘CRM-3’ remote control with two ‘CR-2032’ batteries
- ‘SimLink™’ cable with 1/8” mini plug terminations on each end
- User Manual
