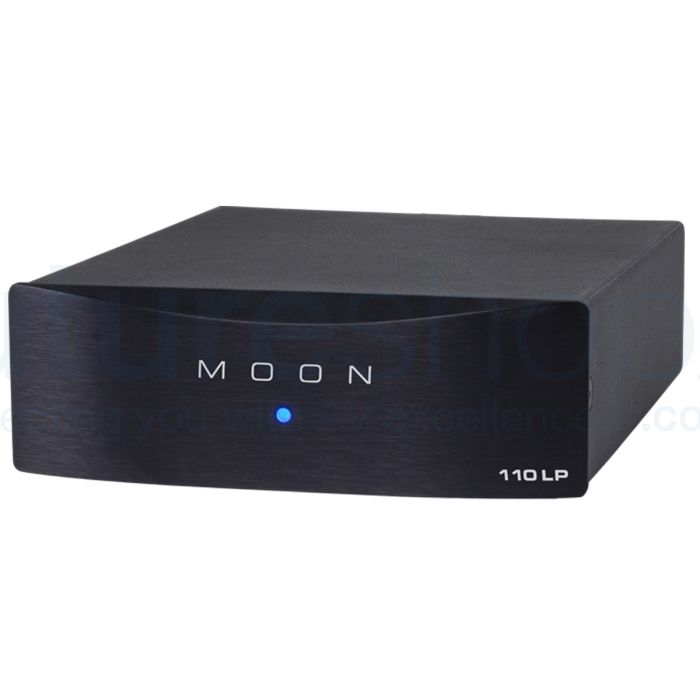

Moon by Simaudio 110LP V2 Phono Preamplifier
The MOON 110LP v2 simplifies high-quality analogue playback. Derived from technologies found in its big brother 310LP, the MOON 110LP v2 represents another leap forward in an affordable phono preamplifier.
Enjoy all of the MOON sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies. This is achieved through the combination of an improved power supply and an enhanced circuit layout. Another benefit is an increased input overload margin for trouble free use.
The original MOON 110LP set a high standard to which Simaudio have added a new slimline design, 24V power supply and further adjustment options of gain & impedance settings without the need to open the unit. In a matter of just a few seconds, you can easily configure under the unit each of these four parameters: gain, curve, resistance and capacitance. As a result, replacing your cartridge will not render the MOON 110LP v2 obsolete.
Features
- End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)
- End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
- End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
- End-user selectable curve (IEC/RIAA)
- Four layer PCB tacings using pure copper for low impedance characteristics
- Inductive DC Filtering for a significantly lower noise floor
- Compact, rigid all-aluminium chassis with gold-plated RCA connectors
- Designed to be powered up at all times for optimal performance
|
"The Moon 110LP v2 has a detailed, musical mid-range with plenty of balance and a nice wide soundstage. The low end had lots of energy and pace, while the top end can let rip and sing with the right cartridge and system" Product Review - Your Sound Matters - August 2023
|
|
"My initial thought once settled in, was just how good the instrumental balance was through the 110LP v2. But it wasn't only balance; there was increased depth when compared to the Musical Fidelity's in-built stage." StereoNet - March 2019 |
|
Right off the bat, the solidity of the lower registers took me aback. I’d thought my Linn Majik 1P had a solid bottom, but it’s nothing compared to the Simaudio. At the same time, the bass slam was prodigious. The mids were meaty but not bloated, and the highs, such as guitar overtones and snare snaps, were crystalline. Incredibly satisfying sound. SoundStage! Access - November 2018 |
Specification
- Circuit Layout: Mirror-image symmetrical circuit
- Single-ended inputs: 1 pair (RCA)
- Input Impedance - Adjustable: 10Ω / 100Ω, 475Ω / 47kΩ
- Input Capacitance - Adjustable: 0 / 100pF / 330pF / 430pF
- Gain Level - Adjustable: 40dB / 50dB / 54dB / 60dB / 66dB
- Curve: IEC / RIAA
- Signal-to-noise Ratio (full scal @40dB gain): 104dB
- Signal-to-noise Ratio (full scale @60 dB gain): 87dB
- Frequency response: 20 Hz - 20 kHz (±0.5 dB)
- Intermodulation distortion: 0.002%
- THD (20Hz - 20kHz): 0.002%
- Power Consumption @idle: 2W
- AC Power Requirements: 100-240V 50Hz / 60Hz
- Shipping Weight: 3.3lb / 1.5 kg
- Dimensions (W x H x D): 5.0 x 1.65 x 6.5 (in) / 12.7 x 4.2 x 16.5 (cm)
Included in the box
- External AC power supply
- AC mains
- Stick for under-panel dipswitch settings
About MOON by Simaudio
Moon by Simaudio offers an unparalleled sound experience that transcends boundaries. Simaudio's commitment to producing products of exceptional quality ensures that every moment with the artist becomes an intimate and unforgettable encounter. Created with precision and designed to endure, Moon products are built to be enjoyed over a lifetime, captivating audiophiles and music enthusiasts alike.
Driven by a passion for music, Moon's mission is to convey the true spirit and emotion of every musical masterpiece through its distinguished line of products. Moon has revolutionised the industry for nearly four decades with a relentless pursuit of excellence and an unwavering dedication to their customers. Their consistent creativity, passion, and steadfast commitment have set new standards and shaped the audio landscape.
As experienced audiophiles and devoted music lovers, Moon's team of specialists deeply understand the transformative power of music. Since 1980, their engineers and designers have been pushing the boundaries of sound purity, consistently striving to redefine what was once thought impossible. Their unyielding pursuit of sonic perfection has garnered acclaim from music enthusiasts worldwide.
At Moon by Simaudio, delivering a world-class customer experience is paramount. With a renowned reputation for professionalism and personalised service, their passionate team is committed to ensuring your long-term satisfaction. Regardless of location, Moon goes above and beyond to provide the best sound experience tailored to your needs.
Beyond their dedication to sound excellence, Moon is proud to embrace sustainability and environmental responsibility. They actively seek responsible suppliers and subcontractors who share their commitment to reducing the carbon footprint. By building products with minimal environmental impact, Moon's dedication to sustainability is reflected in its 10-year warranty, reinforcing its values and respect for the planet.
Respect for sound and a profound connection to the listener lies at the heart of Moon's philosophy. They believe that nothing should compromise the authenticity of a recording and the emotional journey it imparts. With a goal to achieve unparalleled proximity between the listener and the artist, Moon's devotion to preserving the purity of sound creates an unrivalled sense of intimacy.
In summary, Moon by Simaudio represents a remarkable fusion of artistry and engineering, redefining the art of sound reproduction. With a rich heritage spanning decades, their dedication to sonic excellence, exceptional customer service, sustainability, and profound respect for the authenticity of music distinguishes Moon as a leader in the industry.
About MOON by Simaudio
Canadian maker of amplifiers, DACs, streamers and phono stages, hand assembled in Quebec.
MOON is the hi-fi brand of Simaudio, based in Boucherville, Quebec. The company says every product is hand assembled there. The catalogue includes streamers, DACs, integrated amplifiers, power amplifiers, preamplifiers, phono stages, headphone amplifiers, CD players and accessories, arranged into collections. You can start with a streamer or a DAC and add an amplifier from the same maker.
Read more about MOONShow less
Products are arranged into two collections
The Compass collection includes the 371, 461 and 491. The North collection includes the 641, 681, 761, 791, 861 and 891. The numbers identify the model within each collection, so you can compare them directly on the product pages. Check the product page for features and power output.
MiND 2 is the streaming platform
MiND 2 is MOON's streaming platform, with a controller app for browsing and playing your music. It is built into the company's streamers and streaming DACs, so you can use the same app across several products. Check the product page for which models include it.
Two named technologies shape the circuits
MOON says its MHP, or MOON Hybrid Power, supplies stable, low-noise power to sensitive circuits. It also says its MDCA, the MOON Distortion-Cancelling Amplifier, reduces distortion and improves linearity. These are the maker's descriptions, so check which models use them.
Specification
- Circuit Layout: Mirror-image symmetrical circuit
- Single-ended inputs: 1 pair (RCA)
- Input Impedance - Adjustable: 10Ω / 100Ω, 475Ω / 47kΩ
- Input Capacitance - Adjustable: 0 / 100pF / 330pF / 430pF
- Gain Level - Adjustable: 40dB / 50dB / 54dB / 60dB / 66dB
- Curve: IEC / RIAA
- Signal-to-noise Ratio (full scal @40dB gain): 104dB
- Signal-to-noise Ratio (full scale @60 dB gain): 87dB
- Frequency response: 20 Hz - 20 kHz (±0.5 dB)
- Intermodulation distortion: 0.002%
- THD (20Hz - 20kHz): 0.002%
- Power Consumption @idle: 2W
- AC Power Requirements: 100-240V 50Hz / 60Hz
- Shipping Weight: 3.3lb / 1.5 kg
- Dimensions (W x H x D): 5.0 x 1.65 x 6.5 (in) / 12.7 x 4.2 x 16.5 (cm)
Included in the box
- External AC power supply
- AC mains
- Stick for under-panel dipswitch settings
