PUV-2100-AVLC-KIT – HDBaseT2 Full 4K AVLC Series Kit with LAN, PoH & Audio/ARC Pathway

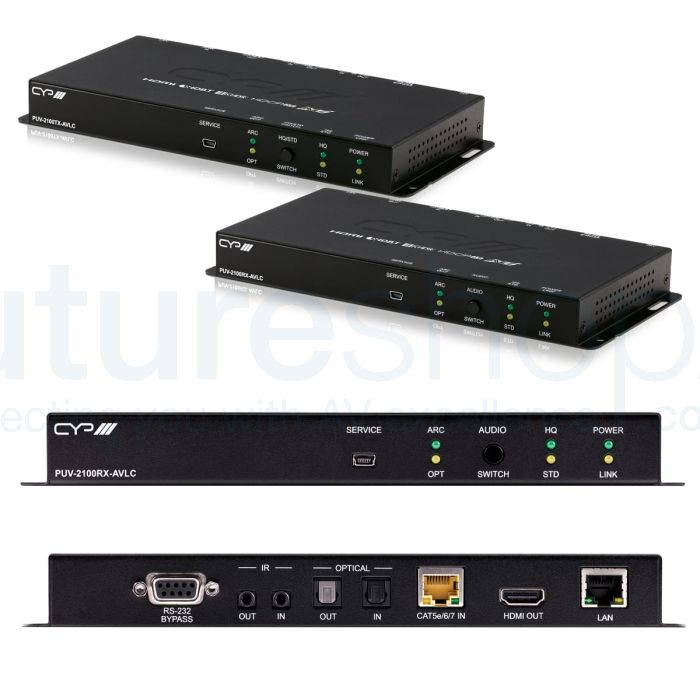

The CYP PUV-2100-AVLC-KIT is a HDBaseT 2.0 transmitter and receiver kit that sends 4K HDMI, audio, control, network and power between two locations over a single Cat6a or Cat7 cable at distances of up to 100 metres. As the most fully featured kit in CYP's AVLC range, it combines the longer reach and richer signal handling of the HDBaseT 2.0 standard with CYP's AVLC (Adaptive Visually Lossless Compression) technology, which carries data rates of up to 18Gbps over the 10.2Gbps HDBaseT link. The result is a clean, visually lossless 4K image delivered to the display, suited to demanding residential and larger commercial installations.
The kit extends resolutions up to 4K@60 with full 4:4:4 colour at 8-bit and passes through 10-bit and 12-bit HDR, and it complies with HDCP 2.2 and HDMI 2.0 while remaining backwards compatible with legacy HDCP 1.x and HDMI 1.x. HDMI DDC bus clock stretching plus TMDS re-clocking and signal regeneration help maintain a stable, reliable link over long runs. A standout feature is the selectable bi-directional optical audio pathway with Audio Return Channel (ARC) support: audio from an ARC-enabled TV can be sent back from the receiver to the transmitter and played out over its optical output, or optical audio can be exchanged in either direction between the two units, with support for DTS, Dolby Digital, Dolby Digital Plus and 2-channel LPCM. Bi-directional IR, RS-232 bypass, CEC bypass and a LAN port at each end round out the control and connectivity, with USB 3 Type B service ports for maintenance.
All audio, video, control, network and power travel together on one cable, with the receiver powered directly from the transmitter using 48V Power over HDBaseT (PoH), so no separate supply is needed at the display end. Both units share an enclosure measuring 231.5mm wide, 25mm high and 108mm deep, and the kit supports 3D signals and deep colour up to 12-bit. The PUV-2100-AVLC-KIT is TAA compliant, suiting public sector and government procurement requirements, and is backed by a five year warranty.
What CYP say about the PUV-2100-AVLC-KIT
The PUV-2100-AVLC-KIT is a HDBaseT 2.0 Transmitter and Receiver Kit capable of transmitting and receiving 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100m (328 feet). This Kit complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT's 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be sent and processed using AVLC (Adaptive Visually Lossless Compression) technology. This Kit can also support RS-232, IR, Ethernet, and multiple audio streams across the same cable that carries the video signal.
Specifications
General
- Brand: CYP
- Model: PUV-2100-AVLC-KIT
- Product Type: HDBaseT 2.0 4K Extender Kit with LAN & ARC (Transmitter + Receiver)
- Extension Standard: HDBaseT 2.0
- Compression: AVLC (Adaptive Visually Lossless Compression)
- Maximum Resolution: 4K@50/60Hz 4:4:4 (8-bit)
- Bandwidth: Up to 18Gbps (via AVLC)
- Extension Distance: Up to 100m at 4K (Cat6a/7); single Cat5e/6/7 cable
- Video Compatibility: HDMI 2.0 (and legacy 1.x)
- HDCP: 2.2 and 1.x
- HDR Support: 10-bit and 12-bit HDR
- Deep Colour: Up to 12-bit
- Signal Processing: HDMI DDC bus clock stretching, TMDS re-clocking and signal regeneration
- Control: Bi-directional IR, RS-232 bypass, CEC bypass, LAN serving
- 3D Support: Yes
- Certification: TAA Compliant
- Warranty: 5 Year Warranty
Audio
- Audio Return: Selectable bi-directional optical audio with ARC (Audio Return Channel)
- Optical Audio Formats: DTS, Dolby Digital, Dolby Digital Plus, 2-channel LPCM
- Optical Connections: Toslink on both transmitter and receiver
Connectivity
- Transmitter Inputs: 1x HDMI, 1x Toslink (optical), 1x 3.5mm (IR receiver), 1x 9-pin D-Sub (RS-232), 1x RJ45 (LAN), 1x USB 3 Type B (service)
- Transmitter Outputs: 1x RJ45 (HDBaseT2), 1x Toslink (optical), 1x 3.5mm (IR emitter)
- Receiver Inputs: 1x RJ45 (HDBaseT2), 1x Toslink (optical), 1x 3.5mm (IR receiver), 1x 9-pin D-Sub (RS-232), 1x RJ45 (LAN), 1x USB 3 Type B (service)
- Receiver Outputs: 1x HDMI, 1x Toslink (optical), 1x 3.5mm (IR emitter)
- Cable: Single Cat5e/6/7 (Cat6a/7 for 4K at 100m)
Power
- Transmitter PSU: 24V/2.7A
- Receiver: 48V Power over HDBaseT (PoH) from the transmitter
Weight and Dimensions
- Dimensions (each unit): 231.5mm (W) x 25mm (H) x 108mm (D)
- Net Weight (each unit): 660g
- Net Weight (kit, both units): 1320g
