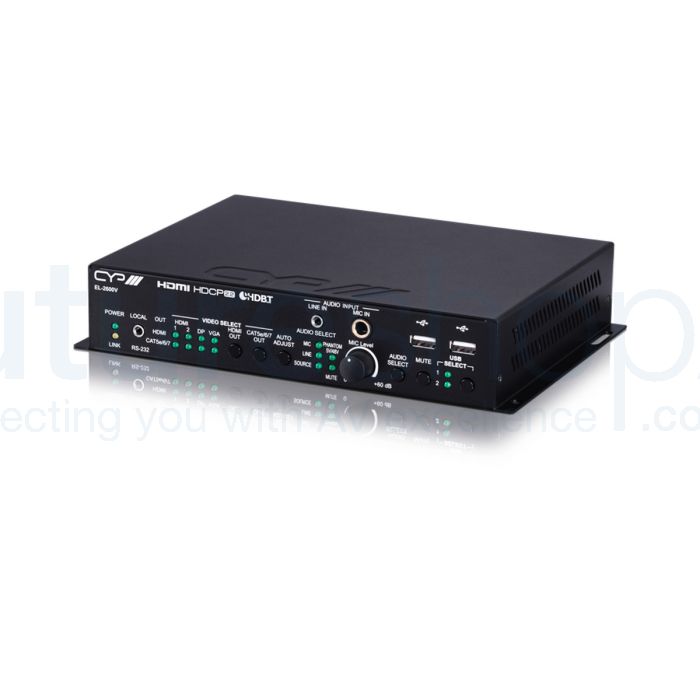

CYP EL-2600V 4K UHD+ HDMI/DP/VGA/USB over HDBaseT Transmitter with Trigger Control
£1,191.60 £993.00
SKU
CYP EL-2600V 4K UHD
Free UK Delivery
24 Months
New
24 hours
The EL-2600V by CYP is the ultimate source in flexibility and compatibility, supporting HDMI, DisplayPort and VGA up to 4K/60. Power supply not included.
Related Products
EL-2600V 4K UHD+ HDMI/DP/VGA/USB over HDBaseT Transmitter with Trigger Control
The EL-2600V by CYP is the ultimate source in flexibility and compatibility, supporting HDMI, DisplayPort and VGA up to 4K/60. Power supply not included.
What CYP say
The EL-2600V presentation switcher is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The three most common video input interfaces (HDMI, DisplayPort, and VGA w/stereo audio) are included, providing the ultimate in source compatibility and flexibility. The HDMI and DisplayPort inputs support resolution/timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) which is converted, when appropriate and necessary, for transmission over HDBaseT. The selected source (video & audio) can be transmitted over Cat.6/7 cable up to 100 meters (at 4K@60Hz) along with bidirectional Ethernet, RS-232, USB, and IR. Due to the matrixing capability of this unit, an independent source may also be selected for output over the local HDMI output. The EL-2600V also includes a microphone input, with optional 48V/5V phantom power support, feeding directly into a DSP mixer, offering the complete presentation solution.
When paired with the PUV-2600RX (Not Included), up to 3 switchable USB 2.0 host (Type-B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to up to 6 USB 2.0 (Type-A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bidirectional, and highly flexible KVM configuration or interactive displays (Note: Only 1 USB host may be active at a time). This Transmitter also provides an interface for a remote control keypad, or trigger interface, which can be easily installed within a lectern or table in a conference room or classroom.
The EL-2600V can be powered locally using a standard power supply (optional ADP-063-SWA not included), or it can be powered by 48V PoH (Power over HDBaseT) provided by the PUV-2600RX (not Included), allowing for greater flexibility within different installation scenarios. This unit is controllable via front panel controls, WebGUI, Telnet, Triggers, and RS-232.
Features
- HDMI and DisplayPort with 18Gbps (600MHz), 3D & 4K video support; HDBaseT 2.0 compatible
- HDCP 1.x & 2.2 compliant
- Selectable HDMI, DisplayPort, and VGA inputs
- HDMI and DisplayPort support input resolutions up to 4K@60Hz (4:4:4, 8-bit)
- VGA supports input resolutions up to 1080p/WUXGA (RB)
- HDMI output supports resolutions up to 4K@60Hz (4:4:4, 8-bit)
- HDBaseT output supports resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) with automatic color space conversion of 4K@60Hz (4:4:4, 8-bit) sources
- 4×2 matrix switching (HDMI and HDBaseT outputs are independent)
- Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, 48V PoH, and control (bidirectional IR/RS-232/USB pass-through)
- Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats
- Balanced analogue stereo audio breakout
- Microphone input supports optional 48V/5V phantom power
- Microphone input feeds into a DSP mixer allowing adjustable mix level controls
- Flexible USB host selection using front panel buttons
- Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
- Supports extended keypad (trigger) control for easy, single button, macro activation (optional equipment required)
- Supports local power, or power via 48V PoH from Receiver (Not Included) to Transmitter (compatible Receivers only)
- Controllable via front panel buttons, WebGUI, Telnet, Triggers, and RS-232
Specification
- Inputs-
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x Display Port [1x Display Port Uncompressed AV]
- 1x 15pin Dsub [1x VGA RGBHV]
- 2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]
- 1x Phoenix (10 pin) [1x Trigger In (8)]
- 1x RJ45 [1x LAN Serving]
- 2x USB Type B [2x Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x RS-232]
- 1x Phoenix (3 pin) [1x RS-232]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 1x 6.35mm Stereo Jack [1x Microphone]
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- Outputs-
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]
- 1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 3x USB Type A [3x Propriety Data]
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- POE PSU- PoH
- PSU- 24V/3.75A
- Dimensions- 158mm [W] x 231mm [D] x 44mm [H]
- Net Weight- 1200g
- Gross Weight- 1800g
About CYP
CYP's vision is simple, to deliver market leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.
The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.
From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry leading after sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
- Inputs-
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x Display Port [1x Display Port Uncompressed AV]
- 1x 15pin Dsub [1x VGA RGBHV]
- 2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]
- 1x Phoenix (10 pin) [1x Trigger In (8)]
- 1x RJ45 [1x LAN Serving]
- 2x USB Type B [2x Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x RS-232]
- 1x Phoenix (3 pin) [1x RS-232]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 1x 6.35mm Stereo Jack [1x Microphone]
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- Outputs-
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]
- 1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 3x USB Type A [3x Propriety Data]
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- POE PSU- PoH
- PSU- 24V/3.75A
- Dimensions- 158mm [W] x 231mm [D] x 44mm [H]
- Net Weight- 1200g
- Gross Weight- 1800g
