Ethernet Plug
QED Performance Graphite Ethernet Cable
£27.50 As low as £22.95 £19.12
SKU
QED Performance Ethernet
Lifetime
New
24 hours
Performance Ethernet is designed specifically for the transmission of high definition digital audio.

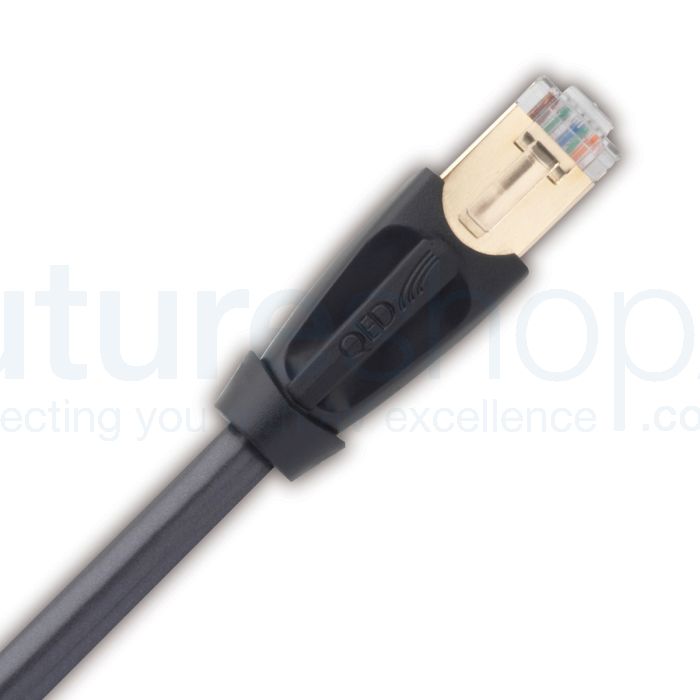

QED Performance Graphite Ethernet Cable
Performance Ethernet is designed specifically for the transmission of high definition digital audio.
The Performance Ethernet cable is able to transmit high definition digital audio between networked Ethernet components and is ideal for HD audio streamer applications up to 24 bit/192kHz. At QED, they have identified that reducing jitter or timing errors within the digital signal makes for cleaner audio transmission and with Ethernet this is no different. With CAT 6 UTP specification and 250MHz bandwidth, the Performance Ethernet is more than equipped to handle the latest high definition digital audio.
8/8 RJ45 Gold Plated Connectors
Stranded 24AWG 99.999% OFC copper conductors and gold plated 8/8 RJ45 jack plugs to maintain low insertion loss figures throughout the life of the cable by minimising signal reflections and keeping contact resistances low
High Bandwidth
Most ordinary patch cables are constructed to the Cat5e standard and are only specified for data rates up to 100MHz. The QED Performance Ethernet cable is an over-specified CAT6 UTP patch cable capable of data rates up to 250MHz - which gives it plenty of headroom when used in an HD Audio streamer application.
Asymmetric Twist Rates for Reduced Cross-Talk
A polyethylene former is used to physically separate each twisted pair into its own compartment within the cable keeping the geometry extremely uniform. This further contributes to the elimination of cross-talk within the cable and maintains the tight 100 ohm characteristic impedance demanded by the Cat6 UTP standard. Eight 99.999% Oxygen Free central conductors of 7/0.2mm (24AWG) stranding all insulated with a Polyethylene (PE) high performance insulator
|
|
Very Low JitterJitter is the undesired deviation from true periodicity of an assumed periodic signal in electronics and telecommunications, often in relation to a reference clock source. A cable displaying very low jitter has been measured attypically 50ps. |
Specification :
- Performance Ethernet is sheathed in a flexible pearlescent graphite PVC outer jacket
- Impedance 100Ω ± 5% @ 250MHz
- Delay skew <450ps/m @ 250MHz
- Loop Resistance 93.25mΩ/m
- Capacitance Imbalance < 3.30pF/m
- Graphite PVC jacket OD 6.3mm
- Lifetime Warranty
About QED Cables
QED is an award winning British company with over 40 years of experience in the audio-visual connectivity industry.
In 1973 Bob Abraham and Ian Vine founded QED Audio Products and changed the way people think about hi-fi cables. By the time QED 79 strand speaker cable was launched in 1978, it wasn’t looked upon as ‘just another speaker cable’ but was instead regarded as a serious hi-fi component, making a fundamental change in the way people thought about cables.
QED's reputation for innovation and technical excellence is known throughout the world. The latest computer-aided design techniques allow their research and development team to keep pace with technological advances and deliver products that achieve the highest levels of performance and reliability. This is why QED products are recommended by so many of the world’s leading hi-fi and home theatre equipment manufacturers.
QED offer a range of connectivity products spanning from both consumer and installation cables, wireless products and switching devices to satisfy every audio visual need.
QED is Europe's number one award winning connectivity brand and has won more prestigious cable awards from ‘What Hi-Fi? Sound & Vision’ magazine than any other brand (Awards 1981–2013).
Specification :
- Performance Ethernet is sheathed in a flexible pearlescent graphite PVC outer jacket
- Impedance 100Ω ± 5% @ 250MHz
- Delay skew <450ps/m @ 250MHz
- Loop Resistance 93.25mΩ/m
- Capacitance Imbalance < 3.30pF/m
- Graphite PVC jacket OD 6.3mm
- Lifetime Warranty
