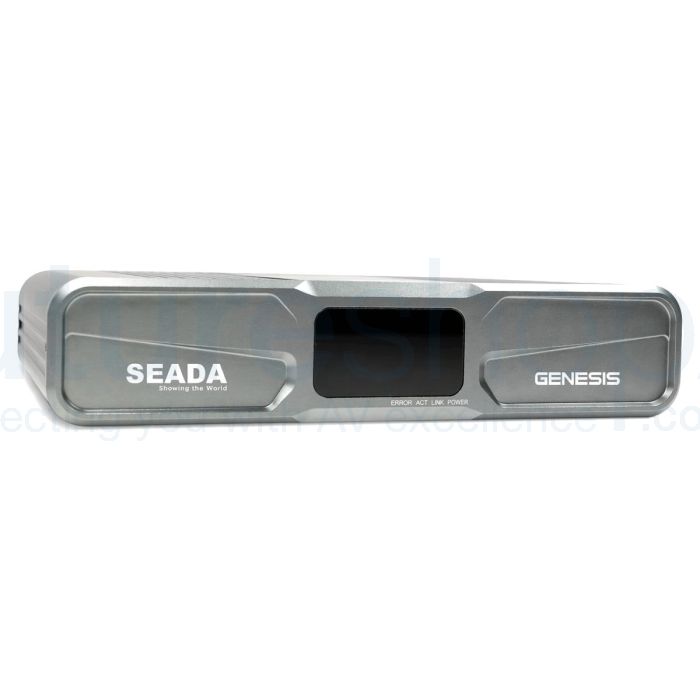

SEADA Genesis 1G G1G-HDMI
The SEADA Genesis 1G G1G-HDMI is a KVM over IP transceiver for control rooms, command and control centres and other mission-critical settings where operators need fast, dependable access to many computers from one desk. SEADA does not split the G1G-HDMI into separate transmitter and receiver models. A mode switch on the rear panel sets every unit as either TX or RX, so a single part number covers both ends of the link and spares holding on larger projects becomes simpler. Video, audio and USB keyboard and mouse signals all travel over standard Gigabit Ethernet, which lets a Genesis 1G system grow across the network switch rather than relying on point-to-point cabling.
The G1G-HDMI accepts HDMI 2.0 sources up to 4096 x 2160 at 60Hz with 4:4:4 colour sampling, keeping the fine text and detail that operators rely on clearly legible. A dedicated FPGA video codec works alongside H.265 encoding and separate KVM processing, giving end-to-end KVM latency as low as 4 ms so that mouse and keyboard response feels immediate. In receiver mode, one display can show a single, dual or quad-view layout, with layouts saved as presets and recalled when needed, and real-time previews make choosing a source quick. Operators at a multi-screen workstation can move and switch across several displays, while user and permission management, internal messaging and source sharing let multiple workstations run independently on the same network. USB 2.0 KVM extension works with Windows, macOS, Android and Linux computers.
Each G1G-HDMI provides a Gigabit RJ-45 port and a 1G SFP port for network connection. Audio can be embedded into or extracted from the HDMI signal, with a single-ended stereo analogue input and output on 3-pin Phoenix connectors. Control is available via RS-232, IR and UDP, and RS-485, a 24V relay and four 5V I/O terminals support integration with room systems. The G1G-HDMI runs from PoE to IEEE 802.3at or from a 12V DC supply, and a front-panel OLED display shows the unit's IP address and status. The chassis measures 210 x 150 x 48mm and weighs 1.2kg, and systems are configured with SEADA's NSDesignStudio software.
What SEADA Technology say about the Genesis 1G G1G-HDMI Transceiver
The G1G-HDMI Transceiver is a high-performance KVM over IP solution designed for real-time video distribution and workstation control over standard Gigabit Ethernet. Supporting up to 4K60 4:4:4, it combines dedicated video codec and KVM processing to deliver high-quality video with imperceptible latency. Each unit can be configured as either a transmitter (TX) or receiver (RX), providing a flexible and scalable architecture for system deployment and expansion.
Designed for demanding multi-workstation environments, G1G enables operators to monitor, access and control multiple sources across single or multiple displays. Flexible multiview layouts, intuitive move & switch operation, and layout save & recall allow each workstation to be configured around individual operational requirements. Multiple workstations can operate independently while sharing access to sources across the same network.
G1G provides a comprehensive KVM platform for professional control rooms, command & control centres and other mission-critical applications.
Key Features
- Supports up to 4096×2160@60Hz with 4:4:4 colour sampling
- End-to-end KVM latency as low as 4 ms
- Dedicated video codec and KVM processing architecture
- Configurable TX / RX in one unit
- Supports single, dual & quad-view layouts and save & recall
- Supports Multi-screen KVM workstation
- Move & switch across multiple displays
- Supports multi-workstations
- Flexible user and permission management
- Supports videowall management from workstation
- Supports Internal communication & source sharing
- Supports centralised configuration and management
- Supports USB KVM extension and routing over IP with high OS compatibility: Windows, macOS, Android, Linux, etc.
- Supports audio embedding and de-embedding
- Supports real-time source preview
- Supports control via RS-232, IR and UDP
- Supports both DC and PoE for simplified installation
- Standard Gigabit Ethernet infrastructure
- OLED display for IP address and status
- No PC vulnerabilities
- Integrated environmental control
Specifications
General
- Brand: SEADA
- Model: G1G-HDMI (Genesis 1G)
- Product Type: KVM over IP Transceiver
- Mode Switch: Up: RX Receiver; Down: TX Transmitter
- Video Input: 1 x HDMI 2.0, up to 4096 x 2160 @ 60Hz
- Video Output: 1 x HDMI 2.0, up to 4096 x 2160 @ 60Hz
- Colour Sampling: 4:4:4 at 4096 x 2160 @ 60Hz
- Video Encoding: FPGA up to 1 x 4096 x 2160 @ 60Hz; H.265 up to 1 x 4096 x 2160 @ 60Hz + 1 x 2048 x 1080 @ 60Hz + 1 x 1024 x 540 @ 30Hz; JPEG up to 1 x 1024 x 540 @ 30Hz
- Video Decoding: FPGA 1 x 4096 x 2160 @ 60Hz / 4 x 2048 x 1080 @ 60Hz; H.265 1 x 4096 x 2160 @ 60Hz / 4 x 2048 x 1080 @ 60Hz
- End-to-End KVM Latency: As low as 4 ms
- Multiview Layouts: Single, dual and quad-view, with save and recall
- USB KVM OS Compatibility: Windows, macOS, Android, Linux
- OLED Display: White OLED, displays IP address and device status
- Configuration Software: NSDesignStudio
- Operating Temperature: 0 to 40°C
- Humidity: 10 to 90% RH, non-condensing
Audio
- Audio Encoding: 48kHz sampling, PCM, G.711, AAC
- Audio Decoding: 48kHz sampling, PCM, G.711, AAC
- Audio Input: HDMI embedded audio; 1 x single-ended stereo (3-pin 3.5mm Phoenix)
- Audio Output: HDMI embedded audio; 1 x single-ended stereo (3-pin 3.5mm Phoenix)
- Audio Embedding and De-Embedding: Yes
Connectivity
- HDMI: 1 x HDMI 2.0 In, 1 x HDMI 2.0 Out
- Network: 1 x Gigabit RJ-45 (LAN/PoE); 1 x 1G SFP
- USB: 1 x USB 2.0 for PC USB; 2 x USB 2.0 for USB peripherals (keyboard and mouse); 1 x dedicated USB 2.0 for USB pass-through
- Serial Ports: 1 x RS-232 / 1 x RS-485 (3-pin 3.5mm Phoenix)
- Relay: 1 x 24V low-voltage relay (2-pin 3.5mm Phoenix)
- I/O: 4 x 5V (5-pin 3.5mm Phoenix)
- IR: Shared with I/O
- Control: RS-232, IR and UDP
Power
- PoE: IEEE 802.3at
- DC Power: 12V DC / 3A
Weight and Dimensions
- Dimensions: 210 x 150 x 48mm
- Weight: 1.2 kg
About SEADA Technology
British AV company supplying active optical cables, HDMI cables and connectivity products.
SEADA Technology is a UK AV company. Its range includes video wall controllers, matrix switchers, extenders and conference equipment, as well as cables. The cable range includes active optical cables and premium HDMI leads. You can use them for long runs where a standard copper cable would struggle.
Read more about SEADAShow less
Active optical cables cover long distances
SEADA's active optical cables are available for USB 3.0, HDMI, Type C and DisplayPort to HDMI, in lengths from 1m to 100m. They need no external power, and include RF screening. Choose the length you need, as the cable cannot be shortened.
The SCHM series is a premium HDMI range
The SCHM series is a premium HDMI cable in 1 to 10m lengths, using 26 AWG conductors and supporting 4K at 60Hz. Check the product page for the length you need and the signal type, as these differ across the cable families.
Series codes identify the cable type
The cable codes include SC-UMM, SC-UFM, SC-4K60, SC-AVC, SC-DPH and SCHM. The code in the product name tells you whether the cable is for USB, HDMI or DisplayPort, so check it against the sockets on your equipment.
Specifications
General
- Brand: SEADA
- Model: G1G-HDMI (Genesis 1G)
- Product Type: KVM over IP Transceiver
- Mode Switch: Up: RX Receiver; Down: TX Transmitter
- Video Input: 1 x HDMI 2.0, up to 4096 x 2160 @ 60Hz
- Video Output: 1 x HDMI 2.0, up to 4096 x 2160 @ 60Hz
- Colour Sampling: 4:4:4 at 4096 x 2160 @ 60Hz
- Video Encoding: FPGA up to 1 x 4096 x 2160 @ 60Hz; H.265 up to 1 x 4096 x 2160 @ 60Hz + 1 x 2048 x 1080 @ 60Hz + 1 x 1024 x 540 @ 30Hz; JPEG up to 1 x 1024 x 540 @ 30Hz
- Video Decoding: FPGA 1 x 4096 x 2160 @ 60Hz / 4 x 2048 x 1080 @ 60Hz; H.265 1 x 4096 x 2160 @ 60Hz / 4 x 2048 x 1080 @ 60Hz
- End-to-End KVM Latency: As low as 4 ms
- Multiview Layouts: Single, dual and quad-view, with save and recall
- USB KVM OS Compatibility: Windows, macOS, Android, Linux
- OLED Display: White OLED, displays IP address and device status
- Configuration Software: NSDesignStudio
- Operating Temperature: 0 to 40°C
- Humidity: 10 to 90% RH, non-condensing
Audio
- Audio Encoding: 48kHz sampling, PCM, G.711, AAC
- Audio Decoding: 48kHz sampling, PCM, G.711, AAC
- Audio Input: HDMI embedded audio; 1 x single-ended stereo (3-pin 3.5mm Phoenix)
- Audio Output: HDMI embedded audio; 1 x single-ended stereo (3-pin 3.5mm Phoenix)
- Audio Embedding and De-Embedding: Yes
Connectivity
- HDMI: 1 x HDMI 2.0 In, 1 x HDMI 2.0 Out
- Network: 1 x Gigabit RJ-45 (LAN/PoE); 1 x 1G SFP
- USB: 1 x USB 2.0 for PC USB; 2 x USB 2.0 for USB peripherals (keyboard and mouse); 1 x dedicated USB 2.0 for USB pass-through
- Serial Ports: 1 x RS-232 / 1 x RS-485 (3-pin 3.5mm Phoenix)
- Relay: 1 x 24V low-voltage relay (2-pin 3.5mm Phoenix)
- I/O: 4 x 5V (5-pin 3.5mm Phoenix)
- IR: Shared with I/O
- Control: RS-232, IR and UDP
Power
- PoE: IEEE 802.3at
- DC Power: 12V DC / 3A
Weight and Dimensions
- Dimensions: 210 x 150 x 48mm
- Weight: 1.2 kg
