Supra Excalibur USB 2.0 Type A to Type B Cable

As low as £99.00 £82.50
SKU
Supra Excalibur USB
Lifetime
New
24 hours
what's this?

Select the desired length for your cable from the drop-down menu.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Excalibur is Supra Cables' flagship USB audio cable, featuring OFC conductors with a 3.8% silver plating for optimal transmission of high frequencies and high speed data transfer. This cable also features separate and carefully designed conductors for data and power, meaning that both pairs are optimised for performance and to reduce crosstalk and RFI.

Supra Excalibur USB 2.0 Type A to Type B Cable



Excalibur is Supra Cables' flagship USB audio cable, featuring OFC conductors with a 3.8% silver plating for optimal transmission of high frequencies and high speed data transfer. This cable also features separate and carefully designed conductors for data and power, meaning that both pairs are optimised for performance and to reduce crosstalk and RFI.



What Supra Cables say

Supra have for a couple of years been developing an ultimate USB Cable, the result was USB Excalibur. Their goal was simple: to make the world's best USB cable, with no compromises or shortcuts. Excalibur is a premium high speed cable with improved data and power transmission, a complement to the existing USB series.

Supra USB Excalibur is supplied in a black presentation bag, but you can use it to help protect the cable, if used in portable/remote situations.

Both the data pair and the power pair are optimised for their purpose, as the demands to transmit data and power are different.

The twisted data pair is made of PE insulated Silver-plated Oxygen Free Copper wires. The Silver layer is very thick, 3.8% of the total wire, for best conductivity and high velocity factor. Silver is great for high frequencies and high speed data transmission.

USB Excalibur, is optimised to handle 24-bit HD Audio and it's 90 Ohm characteristic impedance results in low attenuation.

The construction of the power conductors are totally different compared to the data pair. To avoid power losses and to maximize the conductor area we used 4 Tin-plated OFC wires in a star quad configuration. Star quad design and the seperate screen reduces any RFI greatly .

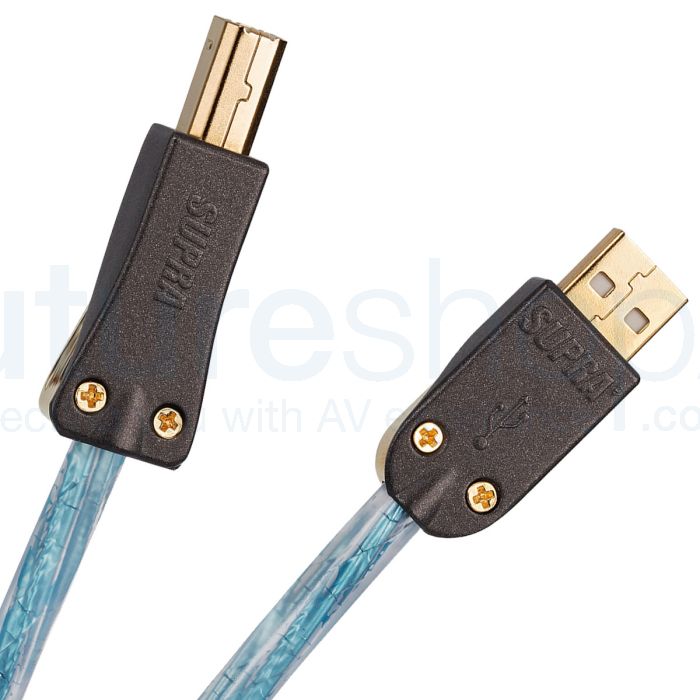

You probably recognise the design of the plugs - the USB plugs are siblings to our popular HDMI plug. Fully shielded in Aluminium.

The plugs are detachable to make it possible to route the cable within in 16 millimeter conduits including the contact. No more on-site cut-offs and re-soldering, jeopardising the typical Supra top notch performance.



Features

  • High Performance, High Speed - Uses a flexible cable with dual screens for the best RF pick-up protection.
  • One twisted pair for data (24-bit) and two star-quad pairs for power, with individual screens for minimal cross-channel interference.
  • Low capacitance and efficient noise rejection maintain signal integrity in long run interconnects.
  • PE-insulated wires with correct 90 Ohms impedance design.
  • 24K gold plated and shielded connectors.

The connectors use aluminium housings to withstand tough applications and long term use.

Maximum Data Transfer Rate: 480 Mbits/second (as per USB 2.0 specifications).

Please note: While USB 2.0 and 3.0 are physically and electrically compatible, USB 3.0 is a dual-link system that is not currently used for USB Audio.



Specification


Mechanical Specifications

  • Standard USB 2.0 Hi-Speed
  • Connectors: USB Type A, Type B
  • Signal Direction: Bi-directional
  • Application Examples: Computer peripherals, DAC's
  • Data transfer rate: 480 Mbit/s
  • Solder: Tin Almit SR-34 Super
  • Cable strain relief: Cable Clamp

Electrical properties

  • Number of pairs: 2 pairs - using 6 conductors wired to 4 pins
  • Conductor area (Data): 2x 0.24 mm2 / 23 AWG
  • Conductor area (Power): 4x 0.24 mm2 / 23 AWG
  • Number of strands: 19 pieces
  • Strand dimension: Ø 0.127 mm
  • Conductor material (Data): Silver plated Oxygen-free 5N Copper
  • Conductor material (Power): Tin plated Oxygen-free 5N Copper
  • Insulation: Low capacitance PE
  • Shielding: Aluminized PET foil
  • Jacket: Heat and age resistant PVC
  • Flame retardant: No
  • External dimension: Ø 7.5 mm

Electrical performance

  • Data transfer rate: 480 Mbit / s
  • Resistance: TBA / kilometre
  • Capacitance: TBA / metre
  • Impedance: 90 Ohm
  • Velocity factor: 0.66x C (speed of light)



About Supra Cables

Supra Cables started in 1976 and have won an impressive number of awards all over the world, often in comparison with more expensive competitor cables. Supra cables philosophy is best described as plain and simple 'No-Nonsense-Design.' All products are manufactured from parts meeting the highest audible and measureable quality standards. Supra manufacture in their own dedicated production facilities in Ljungskile, Sweden, which are constantly monitored by certified quality staff to ensure the very highest quality standards across a wide-range of product lines.




Mechanical Specifications

  • Standard USB 2.0 Hi-Speed
  • Connectors: USB Type A, Type B
  • Signal Direction: Bi-directional
  • Application Examples: Computer peripherals, DAC's
  • Data transfer rate: 480 Mbit/s
  • Solder: Tin Almit SR-34 Super
  • Cable strain relief: Cable Clamp

Electrical properties

  • Number of pairs: 2 pairs - using 6 conductors wired to 4 pins
  • Conductor area (Data): 2x 0.24 mm2 / 23 AWG
  • Conductor area (Power): 4x 0.24 mm2 / 23 AWG
  • Number of strands: 19 pieces
  • Strand dimension: Ø 0.127 mm
  • Conductor material (Data): Silver plated Oxygen-free 5N Copper
  • Conductor material (Power): Tin plated Oxygen-free 5N Copper
  • Insulation: Low capacitance PE
  • Shielding: Aluminized PET foil
  • Jacket: Heat and age resistant PVC
  • Flame retardant: No
  • External dimension: Ø 7.5 mm

Electrical performance

  • Data transfer rate: 480 Mbit / s
  • Resistance: TBA / kilometre
  • Capacitance: TBA / metre
  • Impedance: 90 Ohm
  • Velocity factor: 0.66x C (speed of light)
