Supra CAT8 Flame Retardant Ethernet Cable - Custom Length
Supra CAT8 Flame Retardant Ethernet Cable - Custom Length
SUPRA Cat 8 is one step ahead by providing a future proof cable supporting up to 40GBASE-T over a single cable. It is backwards compatible with standard Cat 6A. Supra Cat 8 is terminated with an improvement of the widely used RJ45 to be able to support the extreme performance that Supra's cable provides. It ups the performance 4 times from Cat 6A with a bandwidth of 2000MHz. Supra Cat 8 is used advantageously in TCP/IP and UDP application where correct data information is critical, e.g. 4K and 8K video streaming, high quality music streaming, gaming, data centers and in-building installations. By upping the performance 4 times to 2000MHz you are more likely to have no incorrect data being sent or not being corrected by applications in time as there is much more bandwidth to work with. This can be very important to avoid for example video loss in streaming or avoiding stuttering in music streaming and voice communication. Supra Cat 8 is constructed with double shielding instead of single shielding to best avoid interference and in so data losses than can be critical to applications It is also ideal for Power of Ethernet (PoE) applications as it has larger copper cross-section than Cat 6A, meaning high power and less voltage drops.
Better than Category "8.2" acc. to draft IEC 61156-10, excellent NEXT, low attenuation, excellent screen properties (pair- and overall screen), low Skew bandwidth 2000 MHz.
Connecting cable and patch cord for generic cabling systems acc. to ISO/IEC 11801 and EN 50173 (2nd edition) and for data centre cabling acc. to ISO/IEC 24764 and EN 50173-5 as well TR 11801-99-1. Ideal for all applications of class D up to FA and Class II, Multimedia (TV, Video, Data, Voice) >40 GbE acc. to IEEE 802.3 bq (draft), Cable sharing, VoIP, PoE/PoE+.
- Length: Custom Length
- Standard: Cat 8 Cable
- Signal Direction:
- Application Examples: Ethernet >40Gb
- Cable: 4 pair, Cat 8 S/STP PIMF
- Cross Area: 0.23 sq mm/ / 26 AWG
- Wire Material: Flex, Stranded 7 x OFC
- Insulation: PE Foam
- Inner Screen Coverage: Aluminium. Band & Braid, 100%

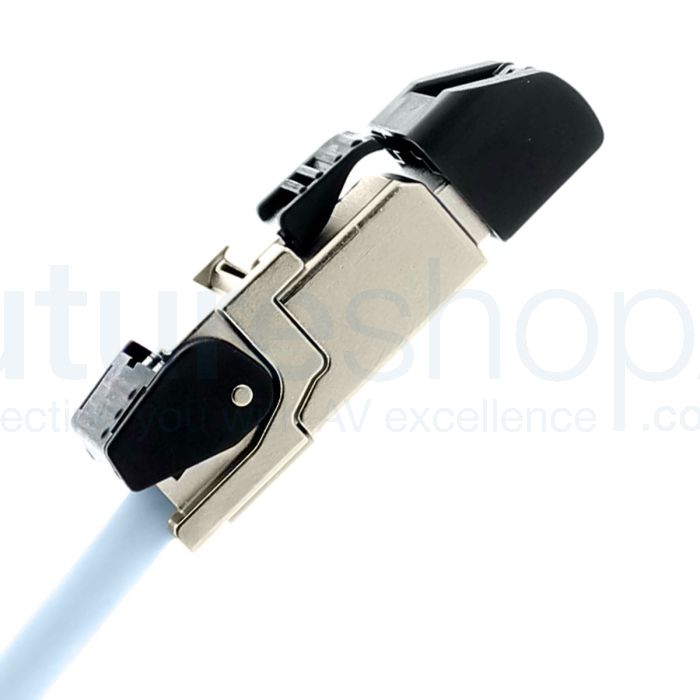

- CAT8 Plugs: Telegartner
- Jacket: PE FRHF
- Ext. Size: 6mm
- Flame retardancy: Yes, E30
- Weight: 45(g/m)
- Lifetime Warranty
- Resistance: 145 (Ohm/km)
- C: 43 (pF/m)
- Bandwidth: 2000 MHz
- Skew@100MHz: 5ns/100m
- Imp. Z: 100 Ohm
- Velo Factor: 0.8c
About Supra Cables
Supra Cables started in 1976 and have won an impressive number of awards all over the world, often in comparison with more expensive competitor cables. Supra cables philosophy is best described as plain and simple 'No-Nonsense-Design.' All products are manufactured from parts meeting the highest audible and measureable quality standards. Supra manufacture in their own dedicated production facilities in Ljungskile, Sweden, which are constantly monitored by certified quality staff to ensure the very highest quality standards across a wide-range of product lines.
