Van Den Hul DIY Screw-on Banana Plugs - Pack of 4

£40.00 £33.33
SKU
Van Den Hul DIY Screw-on Banana Plugs
12 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

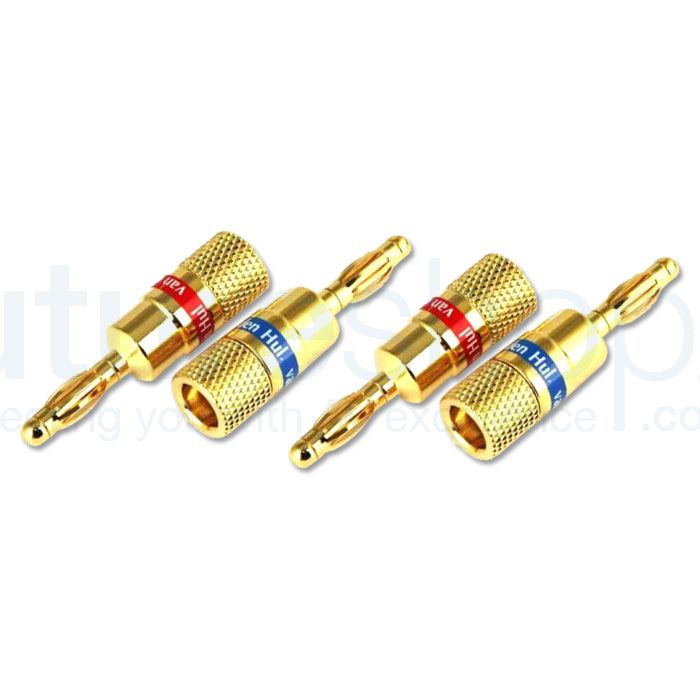

Van Den Hul's versatile and easily mountable DIY Screw-On Speaker Connector provides reliable and durable high quality terminations to your amplifier and loudspeaker binding posts.

Van Den Hul DIY Screw-on Banana Plugs - Pack of 4



Van Den Hul DIY Screw-On Speaker Connector is a high quality solderless, screw-on style, loudspeaker cable termination system suited for multi-strand loudspeaker cable and wire types down to AWG 12 (i.e. up to 3 mm total metal diameter)*, and are fit with red and blue “van den Hul” marked color coding rings for easy polarity identification.

Fits the following Van Den Huls speaker cable:

  • The CLEARTRACK
  • The CLEARWATER
  • CS-12 HF
  • CS-14 HYBRID
  • CS-14
  • CS-16,
  • CS-122 HYBRID
  • D-352 HYBRID
  • The GOLDWATER
  • The INSPIRATION HYBRID
  • SCS-16
  • SCS-18
  • The SKYLINE HYBRID
  • The SNOWLINE
  • The TEATRACK HYBRID
  • The TWIN
  • The WIND Mk II HYBRID

The screw-on base’s high pressure clamp function creates a low loss electrical connection to all cable strands and ensures maximum signal transfer. All parts furthermore are heavy 24 carat gold plated so corrosion is almost impossible and the contact quality is maintained over a long period of use. In short, there versatile and easily mountable DIY Screw-On Speaker Connector provides reliable and durable high quality terminations to your amplifier and loudspeaker binding posts.



Features

  • Van Den Hul DIY Screw-on Banana Plugs - Pack of 4
  • Solderless, screw-on style enables easy and fast mounting
  • Heavy 24 carat gold plated
  • Reliable and durable high pressure electrical clamp connection
  • Easily re-useable/remountable when changing loudspeaker cables
  • Available in angled spade (fork) and banana tip version
  • Fit with red/blue color coded polarity identification rings
  • Accepts up to 3 mm total metal diameter (i.e. down to AWG 12) stranded conductors and up to 6.5 mm cable insulation diameter
  • Banana version: Standard 4.0 mm pin diameter
  • Angled spade version: Spade fits studs from 6.0 mm up to 8.5 mm diameter
  • The spade and banana terminals are WBT binding post fitting
  • Please note: Only suitable for multi-strand cables



Mounting

  • To mount these connectors, each 14 mm bare stripped multi-strand speaker cable wire end is simply inserted through the screw-on base and the strands are circumferentially folded around a pressure ring. The screw-on base is then firmly tightened, ensuring a reliable electrical connection.

Features

  • Van Den Hul DIY Screw-on Banana Plugs - Pack of 4
  • Solderless, screw-on style enables easy and fast mounting
  • Heavy 24 carat gold plated
  • Reliable and durable high pressure electrical clamp connection
  • Easily re-useable/remountable when changing loudspeaker cables
  • Available in angled spade (fork) and banana tip version
  • Fit with red/blue color coded polarity identification rings
  • Accepts up to 3 mm total metal diameter (i.e. down to AWG 12) stranded conductors and up to 6.5 mm cable insulation diameter
  • Banana version: Standard 4.0 mm pin diameter
  • Angled spade version: Spade fits studs from 6.0 mm up to 8.5 mm diameter
  • The spade and banana terminals are WBT binding post fitting
  • Please note: Only suitable for multi-strand cables
