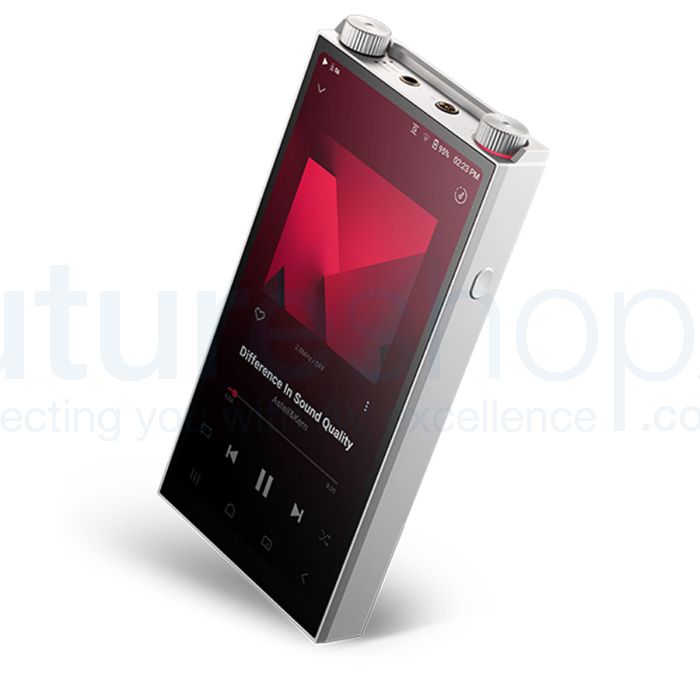

Astell&Kern PD20 Digital Audio Player

Astell&Kern PD20 Digital Audio Player

The PD20 Digital Audio Player represents a new direction for Astell&Kern, built from the ground up to deliver a highly personalised listening experience. Rather than simply refining an existing design, the PD20 introduces a platform focused on shaping sound around the listener. Through Personal Sound technology, developed with Audiodo, the player performs a hearing analysis and creates a profile tailored specifically to your ears. Combined with the tactile Sound Master Wheel, which allows 160-step control of bass, midrange and treble adjustments, the PD20 gives you precise control over how your music is presented.

At the core of the PD20 is a Quad-DAC configuration using four ESS ES9027PRO DACs, designed to minimise channel interference and reveal fine sonic detail with exceptional clarity. Astell&Kern’s TERATON ALPHA audio solution further enhances performance through advanced power noise reduction and a precisely engineered analogue output stage. The player also incorporates ESA (Enhanced Signal Alignment) technology to minimise group delay, improving timing accuracy and delivering a cleaner, more coherent sound across the entire frequency spectrum.

The PD20 also features a flexible Triple AMP architecture with selectable Class A, Class AB and Hybrid modes, allowing you to choose between rich analogue warmth, efficient dynamic balance, or a blend of both. Adjustable Class A current settings further refine amplifier behaviour depending on your headphones or IEMs. With support for native DSD512 and PCM up to 32-bit/768kHz, advanced DAR upsampling, Bluetooth streaming, and a large 6-inch display, the PD20 offers a powerful and highly customisable portable listening experience designed to bring you closer to the original recording.

Here is what Astell&Kern say about the PD20

Finding the sound that truly suits you is the first step toward the essence of music. PD20 is designed to guide you on that journey. Our first step in this journey was to start from the very beginning. Rather than creating a successor to the PD10, we created an entirely new audio device that will redefine your musical experience.

Through Personal Sound, you can create a sound signature tailored to your hearing, then precisely refine it to your taste using the Sound Master Wheel. An intuitive control that allows even the amplifier driving mode to be changed with a single touch. Now, music is not just something you listen to. It is something you shape.

Features

• The first DAP to support personalized sound through a hearing test
• 160-step EQ control via the Sound Master Wheel
• Triple AMP Class with real-time switching
• Class A current control with High / Mid / Low modes
• Proprietary ESA (Enhanced Signal Alignment) technology to minimize group delay
• Advanced DAR
• ES9027PRO Quad-DAC
• Octa-Core

Exceptional resolution and high-purity sound, ES9027PRO Quad-DAC

Designed with a singular focus on sound quality, PD20 adopts the ESS ES9027PRO DAC in a Quad-DAC configuration. Four DACs operate independently to minimize inter-channel interference and deliver precise signal separation. As a result, even the finest nuances in sound are revealed with greater clarity, creating a natural, analog-like presentation through clean, distortion-free layering.

Minimizing Group Delay with Proprietary ESA (Enhanced Signal Alignment) Technology

Through its in-house developed ESA (Enhanced Signal Alignment) technology, PD20 significantly improves one of the fundamental challenges in audio reproduction—group delay. ESA precisely aligns frequency signals so they arrive more uniformly, minimizing frequency distortion and enhancing clarity and cleanliness of sound.

*What is Group Delay? Group delay refers to the difference in time it takes for each frequency to pass through an internal audio system. In simple terms, it describes a phenomenon where different frequencies within an audio signal do not arrive simultaneously, resulting in slight timing delays across frequencies.

TERATON ALPHA

To create the ultimate DAP unlike anything experienced before, we went beyond simply adopting the latest DACs and new specifications. We further evolved and applied TERATON ALPHA, Astell&Kern’s Ultimate Sound Solution, incorporating its advanced and innovative audio technologies.

Refined through continuous research, TERATON ALPHA represents Astell&Kern’s integrated audio engineering expertise. Through effective power noise reduction, efficient power consumption with stable amplification, and a precisely engineered audio output interface, it delivers sound that remains faithful to the original source.

Triple AMP Architecture

PD20 features three distinct amplifier classes, allowing you to directly choose both sonic character and driving performance.

• Class A mode delivers rich, high-density sound with minimal signal distortion, expressing a smooth, analog-like texture.
• Class AB mode offers excellent balance and efficiency, providing stable dynamics and articulate detail.
• Hybrid mode combines the refined texture of Class A with the efficiency and power of Class AB, creating a new level of sonic balance.

Switching between amplifier classes is achieved through a physical slide key rather than a software menu, enabling intuitive, immediate control based on your listening situation. Choose the amplifier class that best matches your music and listening environment.

Adjustable Class-A Current

In Class A and Hybrid modes, the amplifier current can be adjusted in three levels: High / Mid / Low. AMP Current adjustment goes beyond simple output control. It precisely fine-tunes the energy density and driving behavior of the amplifier, allowing you to further refine sound quality according to the characteristics of your earphones or headphones.

• High: Maximizes power delivery to create a wide soundstage and explosive dynamics. Even high-impedance headphones are driven with unwavering authority and a spacious, stable presentation.
• Mid: Provides an optimal balance between sound density and resolution. It preserves vocal texture while delivering a well-balanced sound that remains comfortable even during extended listening sessions.
• Low: Employs delicate, precise current control to suppress background noise and enhance sonic purity. Ideal for high-sensitivity IEMs, revealing even the finest nuances and micro-details.

A One-of-a-Kind Sound Tuned to Your Hearing

PD20 delivers optimal sound tailored to your individual hearing. Developed in collaboration with global audio solution leader Audiodo, Personal Sound is used in a DAP for the first time, creating a personalized profile exclusively for you and redefining how you experience sound.

By precisely analyzing your hearing characteristics and independently compensating for left and right ears, it dramatically enhances clarity and balance. Regardless of genre, volume level, or the headphones or IEMs you use, you can enjoy a consistently optimized listening experience.

With a simple hearing test, your personal listening experience is complete.

* Dedicated earphones are included for accurate hearing measurement.
* Personal Sound supports audio playback up to 32bit / 192kHz.

Audiodo Audiosphere: Immersive Spatial Sound from Any Stereo Source

Audiosphere goes beyond conventional stereo, delivering a powerful sense of spatial immersion. It expands two-channel audio into a virtual three-dimensional sound field and offers four presets: Subtle, Balanced, Immersive, and Echoic.

From the expansive resonance of orchestral performances to the realism of video content, you can select the sound atmosphere that best suits your listening preference.

* Audiosphere supports audio playback up to 32bit / 96kHz.

Audiodo Equalizer: Effortless, Intuitive EQ Control

Audiodo’s Equalizer offers intuitive control centered on Bass, Mid, and Treble. Working in harmony with the Personal Sound profile, it operates on an already corrected sound foundation, ensuring stable and consistent performance.

With the Tilting function, you can naturally adjust the overall tonal balance toward either the low or high frequencies, while preserving the original sound character.

* Equalizer supports audio playback up to 32bit / 192kHz.

Sound Master Wheel, Crafting Your Own Sound in 160 Steps

The Sound Master Wheel, a key design element of the PD20, is seamlessly integrated with the Audiodo equalizer. Each band—Bass, Mid, and Treble—can be finely adjusted across 160 steps, from –8.0 dB to +8.0 dB, allowing even the most subtle preferences to be precisely reflected in your sound./p>

Without interrupting your music, you can shape and refine the sound purely through the tactile feel of the wheel.

Bringing You Closer to the Original Sound, Advanced Digital Audio Remaster

Advanced DAR is a second-generation DAR technology designed to deliver a more natural and refined sound. Rather than sending the audio signal directly to the DAR engine, the signal first passes through VSE (Virtual Sound Extender), where lost harmonics are virtually restored to enhance sound quality.

After this initial enhancement, DAR processing is applied in a second stage to achieve more complete and sophisticated upsampling. Through this process, listeners can experience a deeper, more immersive sound that remains faithful to the original recording.

Sound Design Shaped by DAC Filters

With six DAC filter options, users can choose their preferred sound character. From natural tones to dynamic sound, you can fine-tune and create your own unique sound to match your taste and music genre.

Sound Type	Impulse Response	Filter name	Remarks	Edge
Natural Tone		Super Slow Roll-off	No echo reproduces natural sound	Ultra-Sharp
Acoustic Tone		Short Delay Slow Roll-off	Minimal echo reproduces original sound	Sharp
Traditional Tone		Slow Roll-off	Minimal echo reproduces original sound	Middle
Harmonic Sound		Low dispersion	Short echo reproduces original sound	Middle
Acoustic Sound		Short Delay Sharp Roll-off	Post echo enhances bass sound	Sharp
Traditional Sound		Sharp Roll-off	Pre and post echoes make powerful sound	Slow

Real-Time Information Visualized Through Light

The LED light surrounding the power button displays the bit depth information of the currently playing track, while also enhancing the button’s presence with a refined visual accent, adding an extra layer of enjoyment to the listening experience.

• Red = 16bit
• Green = 24bit
• Blue = 32bit
• Purple = DSD

* The LED light can be turned on or off according to user settings.

Beyond Protection

More than just protection, the case enhances the design and presence of the AK HC5 even when covered. Made with a premium polyurethane material from Synt3, an Italian specialist manufacturer, the case provides perfect protection while delivering a soft, refined texture that feels both luxurious and comfortable to the touch.

Additional Features

• Supports Native DSD512 and 32-bit / 768 kHz Playback: Powered by Astell&Kern’s proprietary technologies to deliver premium sound, PD20 supports Native DSD512 and playback of up to 32-bit / 768 kHz, allowing you to enjoy your music with exceptional fidelity and freedom.
• ReplayGain for Consistent Volume Levels: ReplayGain automatically adjusts the playback volume, normalizing tracks with different loudness levels to a consistent volume. With ReplayGain, you can enjoy your personal playlists with a more balanced and comfortable listening experience.
• CrossfeedA Speaker-Like Listening Experience Through Headphones: Crossfeed blends a portion of the opposite channel signal and applies a slight time delay before routing it to each channel, positioning the sound image toward the center. This creates a more natural, speaker-like listening experience and helps reduce listening fatigue. With detailed adjustments for Shelf Cutoff, Shelf Gain, and Mixer Level, users can fine-tune the settings to match their personal listening preferences.
• Wireless Hi-Fi Sound via BT Sink: The BT Sink function allows PD20 to connect wirelessly to external devices via Bluetooth, similar to connecting a smartphone to a Bluetooth speaker. Music played on the external device is transmitted to PD20 through the BT Sink function, enabling high-quality wireless audio playback.
• Supports USB PD 3.0 Fast Charging: With support for USB PD 3.0 fast charging, PD20 can be fully charged in approximately 4 hours.
• Equipped with a 6-inch FHD+ display: Experience more convenient and comfortable use of PD20 with its expanded 6-inch Full HD display, offering a larger viewing area and enhanced image quality.

Design

The design concept of the PD20 is “Sound Lab Control.” It offers an experience akin to working with professional studio equipment—directly shaping, adjusting, and perfecting sound with precision.

The two wheels positioned on the top each serve a distinct purpose: one for sound tuning, the other for volume control. Their symmetrical layout ensures intuitive operation, while the low-profile protectors surrounding the wheels provide both protection and a sense of openness.

Top-mounted graphics and LED lighting allow you to instantly confirm the current mode without looking at the screen. The AMP and CURRENT slide switches, along with the lock button, are individually positioned to clearly define their functions, while the multifunction key is placed where the thumb naturally rests, enhancing overall usability.

A linear, refined body combined with structurally aligned control elements. The clean design identity pursued by the PD line reaches its fullest expression in the PD20.

Specification
