Atlas Element Asymmetrical Integra 2 RCA to 2 RCA Audio Cable Pair

£0.00 As low as £0.00 £0.00
SKU
Atlas Element Integra Audio
5 Years
New
24 hours
Out Of Stock

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Atlas' original design brief for the Element Integra was to create a better than average, high quality, entry level interconnect. It seems they succeeded. The Element Integra has won numerous awards internationally and become one of their most successful products.

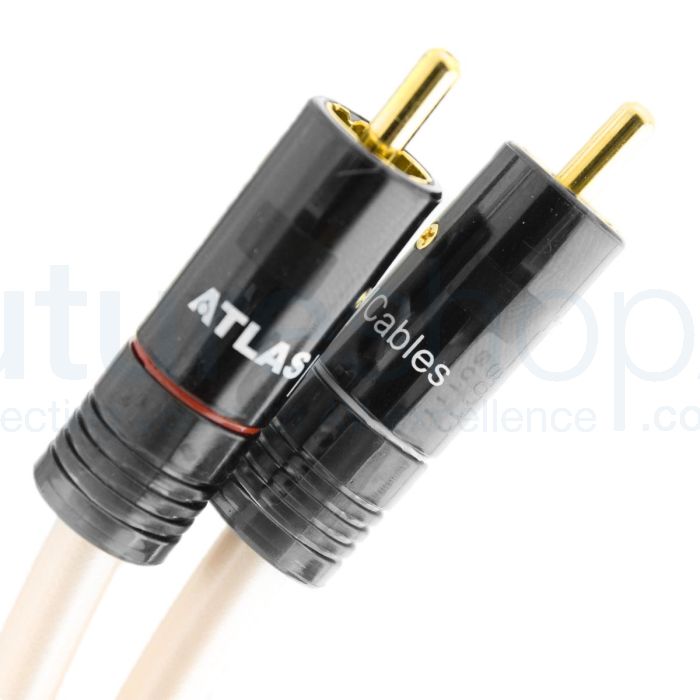

Atlas Element Asymmetrical Integra 2 RCA to 2 RCA Audio Cable



Atlas' original design brief for the Element Integra was to create a better than average, high quality, entry level interconnect. It seems they succeeded. The Element Integra has won numerous awards internationally and become one of their most successful products.

Benefitting from Atlas' ongoing research and development, the Element is fitted with their Integra non-magnetic RCA plug. The low mass Integra connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path. The signal conductor is a fully shielded high quality OCC copper, designed and constructed to provide maximum resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable. The result is a cable which offers a large three dimensional soundstage and fine levels of detail without the artificial brightness which affects many budget cables. The Element Integra offers a neutral, relaxing sound and has proven to be an excellent foundation for further system improvements.

The Atlas Element asymmetrical interconnect shares many similar features to it's stable-mates in the Atlas line. It employs a braided copper and aluminium foil giving a 100% screen to provide rejection of radio frequency interference (RFI), it employs high quality Ohnous Continuous Casting Copper (OCC Copper) for it's conductors together with a low loss porous polyethylene dielectric (PEF).



Features :

  • Integra RCA Plug
  • OCC Copper
  • Polyethylene (PEF) Dielectric
  • Co-ax Construction



Integra RCA Plug

The Integra is a low-mass, non-compression, constant impedance, self-cleaning, solder-free construction RCA plug. In Atlas' cables, the conductor to plug interfaces are solder free, and the gold-plated conjugate brackets act as the return signal path, helping to reject RFI. Both conjugate brackets (these grip the cable without the adverse effects of compressing it, which can alter impedance) have two asymmetrical leaves which spring open on insertion and wipe clean the signal path. To maintain a clean signal path, simply remove and re-insert them periodically. The Integra RCA connectors utilise low-mass non-magnetic connectors to minimise the negative effect of excessive metal in the plug itself.

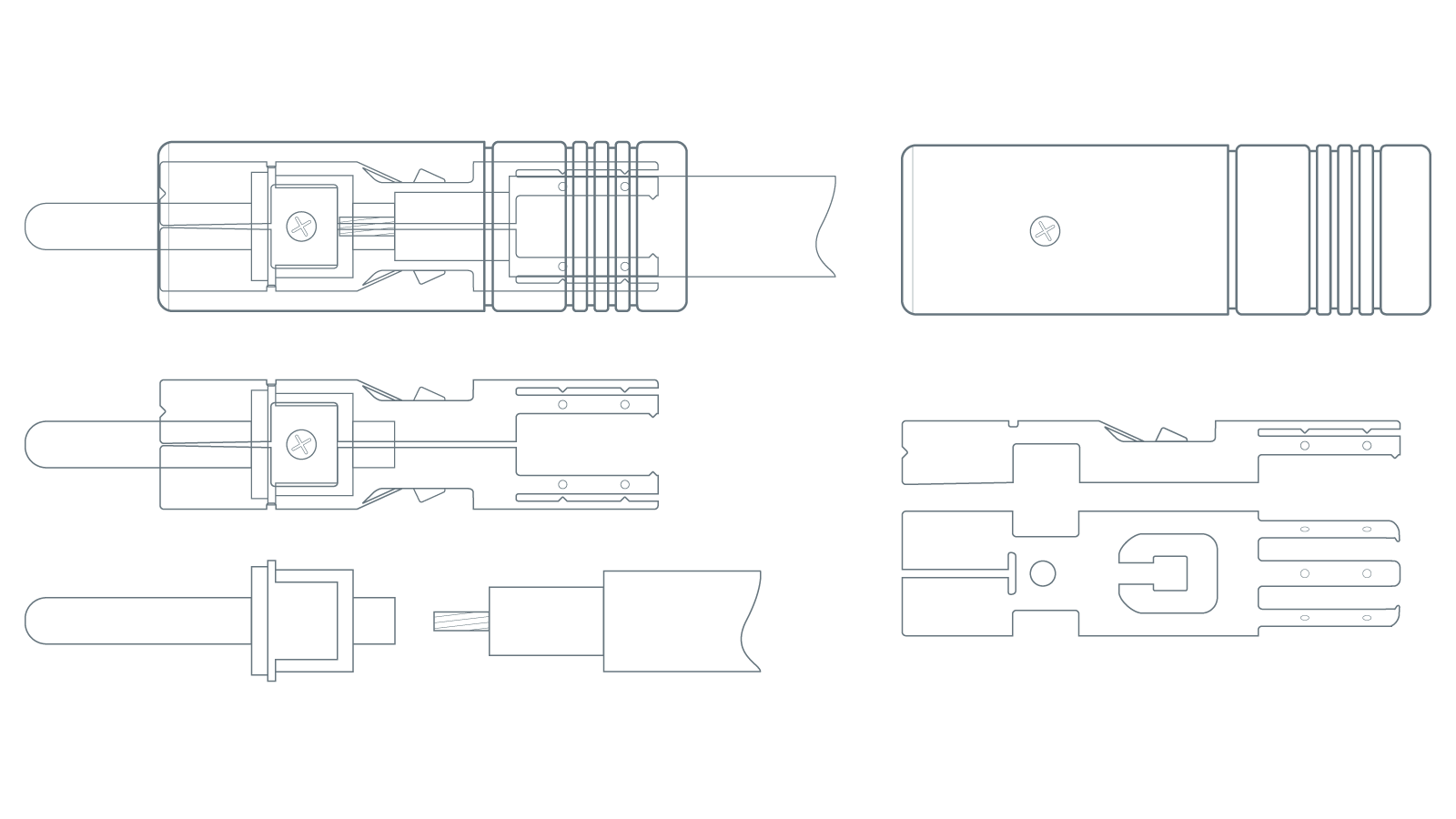

Atlas Integra Plug Technical Diagram

OCC Copper

The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long! The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment. Atlas OCC Copper Design Process

Copper Purity Comparison (0.3mm Diameter)

  TPC OFC OCC
Purity >99.9% >99.99% >99.999%
Specific Gravity 8.75 8.926 8.938
Gas Impurities (ppm)
O2 200~500 <10 <5
H2 <0.5 <0.5 <0.3
Average Crystal Size (Metre) 0.007 0.02 125.00
Crystals Per Metre 150 50 0.008



Polyethylene (PEF) Dielectric

PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables. Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE). PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product. The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.

Dielectric Material Comparison (0.3mm Diameter)
Property Polyvinyl Chloride (PVC) Foamed Polyethylene (PEF) Polypropylene (P.P) Teflon (FEP or PTFE) PTFE
Dielectric Constant (@ 50 -106Hz) 4-8 2.3 2.25 2.1 1.3
Dielectric Strength (kV mm-1) 23-30 30-50 30-50 20-25 N/A
Loss Tangent (% @ 50 - 106Hz) 8-15 0.02-0.05 0.02-0.06 (@ 106Hz) 0.02-0.07 N/A
Volume Resistivity (Ohms.cm @ 20°C) 1012-15 >1017 6.5x1014 >1016 N/A
Tensile Strength (Kg mm-2) 1.0-2.5 1.0-2.0 3.0-4.0 1.9-2.2 1.0
Melting Point (°C) -130 112-120 155-160 275 275
Max. Continuous Operating Temp. (°C) 60 75 90 200 260
Min. Operating Temp. (°C) -15 to -40 <-60 -5 to -45 <-60 -250



Co-ax Construction

Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.



Atlas Cables Element Integra Hi-Fi Choice Review

"The Element Integra represents excellent value for money and so comes highly recommended."

Hi-Fi Choice Magazine July 2016 Edition



"Subtle and smooth, there’s nothing to gripe about here – and as a first upgrade, the Element Integras come highly recommended." (Read More)

Best Analogue Interconnect Cable - What Hi-Fi Sound & Vision Awards 2012/13/14

Atlas Cables Element Integra Hi-Fi World Review

"Adding 3D depth to the pleasingly arranged and constructed soundstage, the performance added a layered arrangement that was surprising for this price point."

Hi-Fi World Magazine July 2013 Edition





The improved Element Integra is an entry level audio interconnect for discerning music lovers. Like all Atlas interconnects, it provides a huge sound-stage together with a smooth delivery. It avoids the over bright and irritating sound so often a feature of similarly priced interconnects. Rather in common with all Atlas interconnects, irrespective of price, it offers the listener a sophisticated and relaxing sound with no artificial highs or lows and most importantly, it offers the user fantastic value for money. Just look at the construction, the OCC copper, the quality asymmetrical construction, and the conjugate bracket Integra plug; there's nothing else quite like the Element Integra.



Specification :

  • Atlas Element Asymmetrical Integra, 2 RCA to 2 RCA Audio Cable
  • Construction: Coax
  • Conductor Material: OCC Copper
  • Screen Type/Material: Braid OFC
  • Screen Coverage %: 90%
  • Dielectric: PEF
  • Connector: RCA Plug
  • Colour: Pearl White
  • Outside Diameter : 6.0mm
  • Capacitance : 63.03 pF/m
  • Inductance : 0.3735 µH/m
  • Resistance : 0.1612Ω/m
  • Impedance : 77.05 Ohms/m



About Atlas Cables Made in United Kingdom

Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.

Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.

Specification :

  • Atlas Element Asymmetrical Integra, 2 RCA to 2 RCA Audio Cable
  • Construction: Coax
  • Conductor Material: OCC Copper
  • Screen Type/Material: Braid OFC
  • Screen Coverage %: 90%
  • Dielectric: PEF
  • Connector: RCA Plug
  • Colour: Pearl White
  • Outside Diameter : 6.0mm
  • Capacitance : 63.03 pF/m
  • Inductance : 0.3735 µH/m
  • Resistance : 0.1612Ω/m
  • Impedance : 77.05 Ohms/m
