Atlas Element Mezzo 2 XLR to 2 XLR Audio Cable - Pair

As low as £146.25 £121.87
SKU
Element Mezzo XLR
5 Years
New
24 hours
what's this?

We can burn-in your cable for up to 96 hours FREE of charge using our Nordost VIDAR cable burner. This is a £3000 machine that will optimise the performance of your cables from day one. This means the cables will be in optimum performance mode when you receive them, so you'll be able to make a performance assessment quickly rather than waiting 70 hours+ of usage. The result of conditioning cables with the Nordost VIDAR is, improved sound staging, increased detail, and an overall more musical presentation. Please Note: we are unable to burn-in cables with stripped bare ends or BFA-only plugs. (This does not apply to BFA/Banana plugs). Cables are burnt-in for the selected period AFTER your order has been processed. This service is offered at Future Shop's discretion and we cannot guarantee all burn-in requests are fully completed during busy periods.

what's this?

Select the desired length for your cable from the drop-down menu.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

A very well-screened interconnect for this price point, with excellent resistance to RFI (Radio Frequency Interference), helping to ensure low noise levels and a neutral sound.

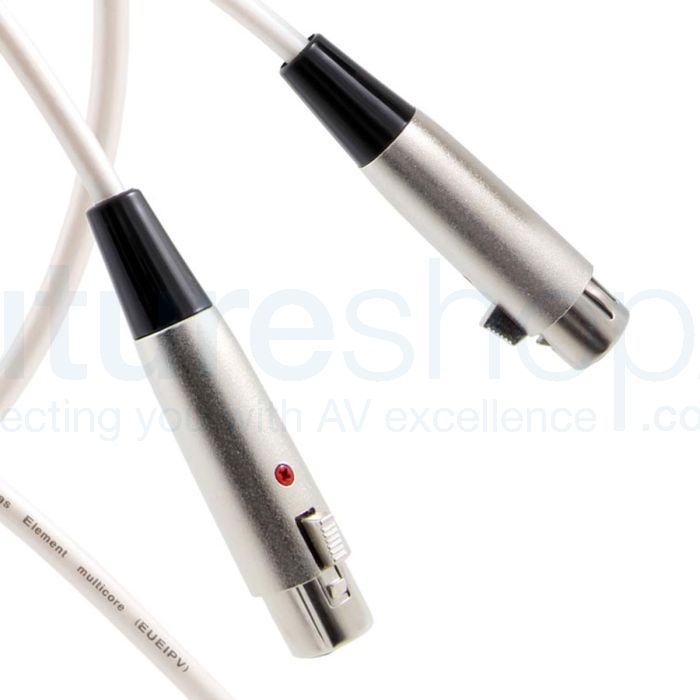

Atlas Element Mezzo 2 XLR to 2 XLR Audio Cable - Pair



Based on Atlas' highly regarded Element XLR interconnects, the Element Mezzo XLR has been designed to meet the increasingly popular requirement for a cost-effective balanced cable with very little compromise in performance. The actual cable itself is identical, but the Mezzo uses a copper alloy body and pins as opposed to the high-purity OFC pins and aluminium alloy-bodied plug of the Element XLR.



Features

  • Copper-Alloy XLR
  • OFC Conductors
  • PEF Dielectric
  • 4 Core + Screen Construction



Copper-Alloy XLR

The Mezzo XLR combines a copper-alloy bodied plug with copper-alloy connectors and crimped (solder-free) construction.



Oxygen Free Copper (OFC)

OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.

Copper Purity Comparison (0.3mm Diameter)
  TPC OFC OCC
Purity >99.9% >99.99% >99.999%
Specific Gravity 8.75 8.926 8.938
Gas Impurities (ppm)
O2 200~500 <10 <5
H2 <0.5 <0.5 <0.3
Average Crystal Size (Metre) 0.007 0.02 125.00
Crystals Per Metre 150 50 0.008



Polyethylene (PEF) Dielectric

PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables. Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE). PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product. The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.

Dielectric Material Comparison (0.3mm Diameter)
Property Polyvinyl Chloride (PVC) Foamed Polyethylene (PEF) Polypropylene (P.P) Teflon (FEP or PTFE) PTFE
Dielectric Constant (@ 50 -106Hz) 4-8 2.3 2.25 2.1 1.3
Dielectric Strength (kV mm-1) 23-30 30-50 30-50 20-25 N/A
Loss Tangent (% @ 50 - 106Hz) 8-15 0.02-0.05 0.02-0.06 (@ 106Hz) 0.02-0.07 N/A
Volume Resistivity (Ohms.cm @ 20°C) 1012-15 >1017 6.5x1014 >1016 N/A
Tensile Strength (Kg mm-2) 1.0-2.5 1.0-2.0 3.0-4.0 1.9-2.2 1.0
Melting Point (°C) -130 112-120 155-160 275 275
Max. Continuous Operating Temp. (°C) 60 75 90 200 260
Min. Operating Temp. (°C) -15 to -40 <-60 -5 to -45 <-60 -250



4 Core + Screen Construction

A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.



Specification

  • Construction: 4 core plus screen
  • Material: OFC
  • Dielectric: PEF
  • Screen Braid: OFC, 85%
  • Capacitance: 83.34 pF/m
  • Inductance: 0.512 µH/m
  • Resistance: 0.0810 Ohms/m
  • Outside Diameter: 6.5mm



About Atlas Cables Made in United Kingdom

Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.

Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.

Specification

  • Construction: 4 core plus screen
  • Material: OFC
  • Dielectric: PEF
  • Screen Braid: OFC, 85%
  • Capacitance: 83.34 pF/m
  • Inductance: 0.512 µH/m
  • Resistance: 0.0810 Ohms/m
  • Outside Diameter: 6.5mm
