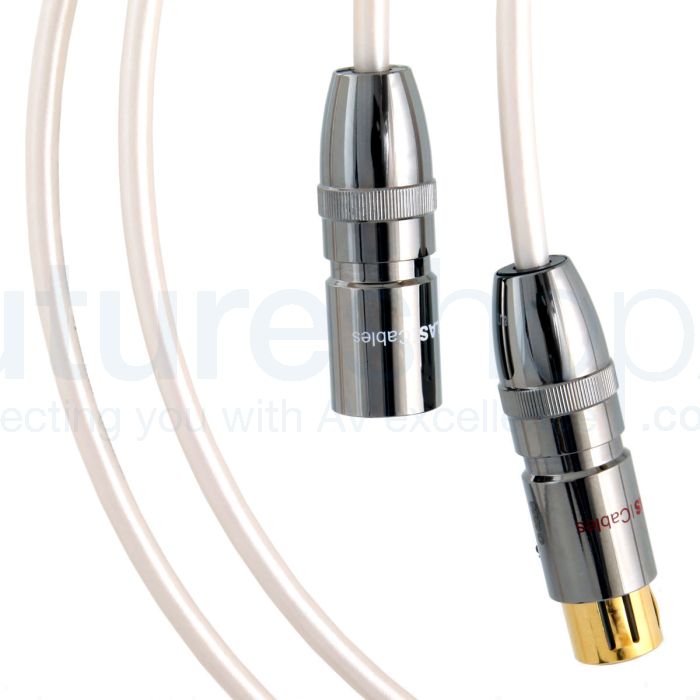

Atlas Element 2 XLR to 2 XLR Audio Pair
As low as £392.00 £326.67
SKU
Atlas Element XLR Audio
5 Years
New
24 hours
Based on Atlas' multi-award winning Element Integra interconnect, the Element XLR utilises a shielded four-core construction providing excellent immunity to interference and noise, making it ideally suited to longer cable runs.
Atlas Element 2 XLR to 2 XLR Audio
Based on Atlas' multi-award winning Element Integra interconnect, the Element XLR utilises a shielded four-core construction providing excellent immunity to interference and noise, making it ideally suited to longer cable runs.
Atlas use cold-weld terminations wherever possible, including their current generation ‘dark Chrome’ XLR connectors. By reducing the number of materials and break points in the signal path, Atlas' objective is to minimise discontinuity and loss in the signal path, resulting in more consistent construction and improved audio performance.
Atlas XLR plugs are wired as follows by default: Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold. If you require a different configuration, please contact us.
Features :
- Atlas XLR Plug
- OFC Conductors
- XLPE Dielectric
- 4 Core + Screen Construction
Atlas XLR Plug
The Atlas XLR combines a lightweight aluminium alloy body with precision-fit OFC/OCC connectors and solder-free construction.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
XLPE Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
XLPE Dialectric is a form of LDPE (Low Density Polypropylene) formed with cross-link polymers, stable and used extensively on medium voltage cables.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
4 Core + Screen Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
Specification :
- Construction 4 core plus screen
- Material : OFC
- Dielectric : XLPE
- Screen : Braid OFC, 90%
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612Ohms/m
- Impedance : 77.05 Ohms/m
- Outside Diameter : 6.0mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction 4 core plus screen
- Material : OFC
- Dielectric : XLPE
- Screen : Braid OFC, 90%
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612Ohms/m
- Impedance : 77.05 Ohms/m
- Outside Diameter : 6.0mm
