Connected Fidelity AC-2K Reference Balanced Power Conditioner

Need help choosing?

Our Hi-Fi specialists give free, honest advice — no commission, ever. Contact us by email or phone and we'll help you find the right cable for your system.

Item code: Connected Fidelity AC-2K Power Conditioner

The Connected Fidelity AC-2K Reference is a UK-made balanced mains supply with a 2.0kVA cryogenically treated transformer, built to order with your choice of outputs, output voltage, RCBO and RF filter.
£2,585.00
£2,154.17
✓ Save %

Lowest price in the last 30 days:

New 24 Months warranty 14-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Please choose:

Fascia Colour

*

Output Sockets

*

Balanced Output Voltage

*

RCBO Double Pole Trip Switch on Output

*

RF Input Filter

*
Configured total
£2,154.17 Ex. VAT
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£2,154.17 ex. VAT
Available — built to order, dispatches in 7 - 10 Days
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 14-day returns · Free burn-in · Built in our UK workshop · 24 Months warranty · Expert support on every order

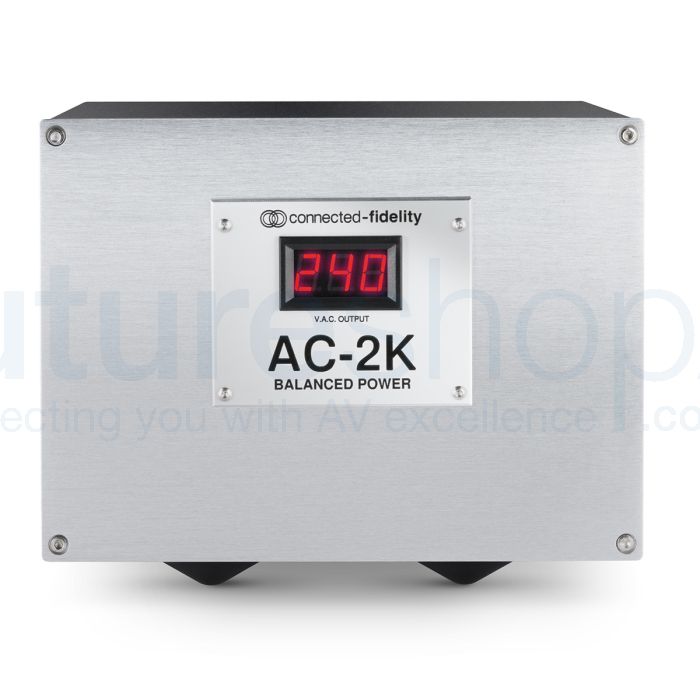

Connected Fidelity AC-2K Reference Balanced Power Conditioner



The Connected Fidelity AC-2K Reference is a UK-made balanced mains supply designed to sit in the listening room. It feeds your system from a 2.0kVA cryogenically treated transformer that splits the mains into two balanced halves, so noise on the supply cancels out in much the same way as it does on a balanced signal cable. Connected Fidelity describe the result as a lower noise floor, a blacker background and more natural sound, with better colour depth on video. Over the AC-2K Studio, the Reference adds gold-plated input and output sockets, cryogenic treatment of every part in the power line and a transformer mounted on an 8mm aluminium plate with rubber isolation mounts, finished in a silver or black fascia with the new brass face plate.

Each Reference is built to suit your system. Choose one, two or three UK outputs, four Schuko or four US outputs, or a double US socket, all star wired, then add an RCBO double pole trip switch on the output or an RF input filter if you need them. You also choose the balanced output voltage: the standard 1:1 transformer, or one that delivers 10V less, which Connected Fidelity recommend for valve amplifiers, equipment built before 1995 for 220V supplies, and homes where the mains regularly runs at 245V or above. One AC-2K will power a complete audio system, including a power amplifier of up to 1,000W, up to 1,600W in total. A mains cable is not included; the input is a 16A IEC C19 socket.



What Connected Fidelity say about the AC-2K Reference

The AC-2K Balanced Power Unit. Designed for audiophiles and home cinema enthusiasts, the AC-2K lowers the noise floor by cancelling out electrical interference, delivering cleaner power to your components. Expect more natural sound, a greater sense of musical flow, improved spatial imaging, and deeper silences. For video, enjoy improved depth of colour and sharper detail. By supplying balanced mains power just like professional studios the AC-2K helps your equipment’s transformers operate more efficiently, improving performance across both analogue and digital sources.

The unit reduces DC on the line and isolates AC/DC noise on the earth, minimising RF and EMI interference from entering your system. A robust, non-magnetic enclosure houses a 2.0Kva cryogenically treated transformer. Audiophile-grade sockets, gold-plated pins, and a switchable front-facing voltage monitor all reflect the unit's high-end design. Use it to power amplifiers up to 1,000W and all other system components. Unlike typical power conditioners, the AC-2K delivers a tangible upgrade in sonic and visual performance. Backed by a two-year guarantee, it’s a transformative addition to any serious audio setup.



Design

The AC-2K is broadly a ‘fit and forget’ component so you can enjoy the highest quality sound from your audio or sound and vision. The design employs the best ‘audiophile’ engineering techniques and treatments. Inside the substantially damped non-magnetic casework there is anti-surge protection (not in circuit when powered up). A 30 Amp electronic double pole power switch internally switches on after the massive 2.0Kva transformer has powered up. The input and output sockets are of ‘audiophile’ quality, with Gold plated connecting pins. There is a switchable power supply monitor on the front face showing the balanced power output voltage.



AC-2K ‘Reference’ version

Cryogenically treated transformer, with every part in the power line cryogenically treated and the same high quality wire as used in the UNITY power cables. Gold plated 16A IEC input and 13A pin UK plug output sockets. Transformer mounted on an 8mm aluminium plate supported by four rubber isolation mounts. Silver or black fascia with a brass face plate.



Output options

The Reference can be supplied with one, two or three UK output sockets, four Schuko or four US output sockets, or a double US socket, and the outputs are star wired.



RCBO and RF filter

An optional double pole residual current circuit breaker with overcurrent protection can be fitted on the balanced output side, and an RF filter can be added on the input side.



Balanced output voltage

The Reference models are offered with a standard 1:1 balanced transformer (240V in, 240V out) or a 10V lower output (240V in, 230V out). The lower output is suggested for systems using valve amplification, for legacy equipment made before 1995 and designed for 220V, and for areas where the incoming mains regularly runs high, at around 245V to 250V. Equipment built for the UK and EU is designed for 230V, and Connected Fidelity say there is no audible downside to a 230V supply.

Specifications

General
  • Brand: Connected Fidelity
  • Model: AC-2K Reference
  • Product Type: Balanced mains supply
  • Fascia: Silver or black, with brass face plate
  • Made in: United Kingdom
  • Guarantee: 2 years (faulty materials and manufacture)
Power
  • Input: UK 220-240VAC
  • Transformer: 2.0kVA screened balanced transformer, cryogenically treated
  • Transformer Mounting: 8mm aluminium plate on 4 rubber isolation mounts
  • Balanced Output Voltage: 1:1 (240V in, 240V out) or -10V (240V in, 230V out)
  • Input Power Switch: 30A double pole
  • Recommended Load: power amplifiers up to 1,000W, all system components up to 1,600W in total
  • Soft Start: 1 to 2 second delay, 30A sealed double pole switch, so the output switches in after the transformer has powered up
  • Fuse: 10A 20mm 250VAC slow blow, fitted internally on the soft start board
  • Output Voltage Display: digital, on the fascia, switchable
  • Power Consumption: a few milliwatts (soft start and display only)
Connectivity
  • Input Socket: 16A IEC C19, gold plated
  • Outputs: 1, 2 or 3 x UK 13A (gold plated), 4 x Schuko, 4 x US or 2 x US, star wired
  • Internal Wiring: high quality wire as used in UNITY power cables, cryogenically treated
  • Mains Cable: not included
Options
  • Output sockets (as above)
  • Balanced output voltage: 1:1 or -10V
  • RCBO double pole electronic trip switch on the output
  • RF input filter
Dimensions and Weight
  • UK outputs: 185 mm high (including feet) x 230 mm wide x 330 mm deep
  • Schuko and US outputs: 355 mm deep
  • Net Weight: 18.3 kg
  • Boxed Size: 300 mm high x 290 mm wide x 300 mm deep
  • Boxed Weight: 19.3 kg
Installation
  • Siting: allow 75 mm of free space all round in a cupboard or unventilated space
In the Box
  • AC-2K balanced power supply
  • Operating manual
  • Hex key and 2 transit screws with washers (remove the transit screws from the base before use)

About Connected Fidelity

British maker of analogue accessories, cables, isolation products and power conditioning for hi-fi.

Connected Fidelity is a UK brand, and its products are made in the UK. The range covers analogue accessories, cables, power conditioning and RF shielding. It includes Unity cables, Float isolation pucks, RF blockers, a power conditioner and replacement fuses, so you can treat several parts of a system from one maker.

Read more about Connected FidelityShow less

Isolation and RF products tidy up the setup

Float pucks support equipment and reduce the vibration reaching it, and RF blockers target radio-frequency interference. Both are accessories that sit around your existing system rather than replacing a component, so they suit you if you want to refine what you already own.

Power products cover cables, fuses and conditioning

The power range includes the AC-2K power conditioner, power cables and CF fuses in 5A and 13A ratings. Some power cables use what the maker calls Wirewound Technologies. Check the product page for the specification, and match any fuse to the rating your equipment needs.

A tonearm sits in the analogue range

For vinyl, Connected Fidelity lists the CF-1010 tonearm in its analogue range. Analogue accessories are one of its main categories, alongside cables and power. Mounting distance, weight and the arm's effective mass all need to suit your turntable and cartridge, so check compatibility before you order.

Shop all Connected Fidelity →
