CYP CR-IPS1 – IP to Serial Controller with a Single I/O Port
Connection Guide
USB Type A
Ethernet Plug
RS232
Our Hi-Fi specialists give free, honest advice — no commission, ever. Contact us by email or phone and we'll help you find the right cable for your system.
Item code: CR-IPS1
Inc. VAT (20%) · Ex. VAT: £191.66 Ex. VAT · Inc. VAT (20%):
Lowest price in the last 30 days:
Request to Price Match
If you've seen a better offer for this product, we will endeavour to match it. The competing offer must be on brand-new boxed items, and in stock from another UK Online Authorised Retailer (excluding marketplaces). Price match quotations are valid for 7 days.
SPEAKER CABLES:
A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.
OTHER CABLES:
A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.
NON-CABLE PRODUCTS:
A quantity of 1 means you will receive 1 of the specified products.
Order before 4pm (Mon–Fri) for same-day dispatch

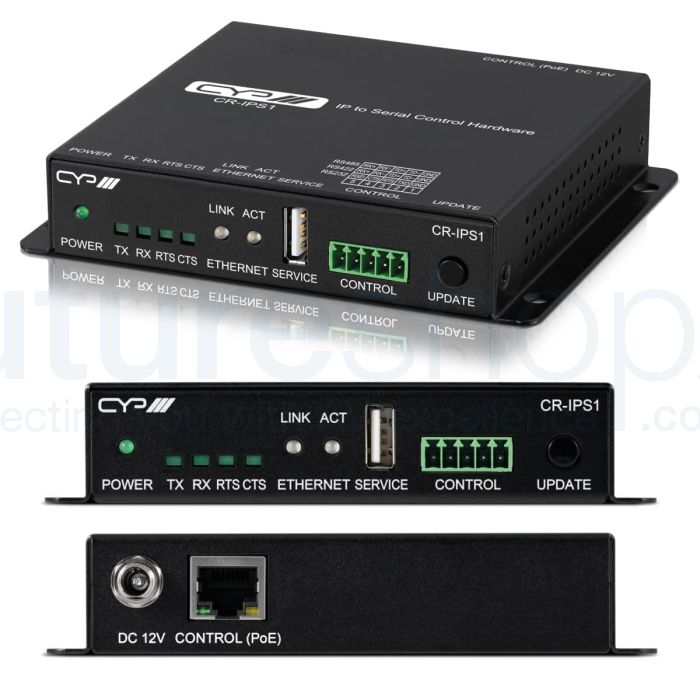

CR-IPS1 – IP to Serial Controller with a Single I/O Port
The CYP CR-IPS1 is an IP to serial controller that bridges modern IP control networks to serial-controlled equipment, allowing a single RS-232, RS-422 or RS-485 device to be operated remotely over a standard network. In installations where projectors, displays, matrices and other hardware still rely on serial commands, the CR-IPS1 makes that device reachable from a control system or PC anywhere on the network, removing the need to run dedicated serial cabling back to a central location.
Control and configuration are handled through a comprehensive set of interfaces, including a built-in WebGUI, Telnet and a console connection over RS-232, so commands can be issued and the unit set up in whatever way best suits the installation. The single serial port is wired through a 5-pin Phoenix connector and supports RS-232, RS-422 and RS-485, giving broad compatibility across different manufacturers' control schemes. The unit supports the IEEE 802.1x RTS/CTS protocol to avoid hidden-station collisions, provides clear LED indicators for power and Ethernet status, and allows convenient field firmware updates via USB or a dedicated hotkey.
Power is flexible: the CR-IPS1 can run from Power over Ethernet, drawing both data and power from a single network cable connected to a standard PoE switch, or from a 12V supply where PoE is not available. This keeps installation tidy and reduces the number of cables and supplies at the device end. Housed in a compact enclosure measuring 128mm wide, 25mm high and 108mm deep, it is easy to mount discreetly within a rack or alongside the equipment it controls. The CR-IPS1 is TAA compliant, suiting public sector and government procurement requirements, and is backed by a five year warranty.
What CYP say about the CR-IPS1
The CR-IPS1 Control System Centre is for users to control a single Serial device of any variety. It supports one RS-232/422/485 port. Users can connect device and control it via a 3 (or 5)-pin adapter cable to send RS-232/422/485 commands from this unit. Comprehensive user control interfaces are available, including WebGUI, Telnet, and console (RS-232 in).
Specifications
General
- Brand: CYP
- Model: CR-IPS1
- Product Type: IP to Serial Controller
- Serial Support: RS-232 / RS-422 / RS-485
- Control Interfaces: WebGUI, Telnet, Console (RS-232 in)
- Protocol: IEEE 802.1x RTS/CTS
- Status Indicators: LEDs for power and Ethernet
- Firmware Updates: via USB or hotkey
- Certification: TAA Compliant
- Warranty: 5 Year Warranty
Connectivity
- Serial Port: 1x RS-232/422/485 (5-pin Phoenix Com Port)
- Network: 1x RJ45 (LAN, PoE, IP)
- Service Port: 1x USB Type-A
Power
- PoE: Yes (powered from a PoE network switch)
- External PSU: 12V/1.25A
Weight and Dimensions
- Dimensions: 128mm (W) x 25mm (H) x 108mm (D)
- Net Weight: 360g
About CYP
CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.
The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.
From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
About CYP Europe
AV connectivity specialist supplying matrices, extenders, scalers, converters and cables to installers.
CYP Europe is based in Shepperton, UK, and supplies AV connectivity products to installers across Europe, the Middle East and Africa. It lists more than 400 products, including matrices, switchers, scalers, extenders and converters. If you are specifying a system with several sources and screens, the range covers most of the signal path.
Read more about CYPShow less
Matrices, switchers and scalers route and match signals
CYP's matrices and switchers send several sources to several displays. Scalers convert a signal to the resolution a screen needs. Together they handle the common problem of mixing old and new equipment in one installation. Check the product page for the resolutions and inputs each model supports.
Extenders and converters cover distance and format
Extenders carry video over longer runs than a standard cable allows, and converters change one signal format into another. CYP's range also includes audio products, control equipment and cables, so you can source the supporting parts from the same maker.
Newer signal types are included
The catalogue extends to AV over IP, including Dante audio, and to wireless products. CYP says its range is aimed at installers, so it is the kind of equipment you will often find specified in professionally fitted systems. Check the product page for the formats each product supports.
Specifications
General
- Brand: CYP
- Model: CR-IPS1
- Product Type: IP to Serial Controller
- Serial Support: RS-232 / RS-422 / RS-485
- Control Interfaces: WebGUI, Telnet, Console (RS-232 in)
- Protocol: IEEE 802.1x RTS/CTS
- Status Indicators: LEDs for power and Ethernet
- Firmware Updates: via USB or hotkey
- Certification: TAA Compliant
- Warranty: 5 Year Warranty
Connectivity
- Serial Port: 1x RS-232/422/485 (5-pin Phoenix Com Port)
- Network: 1x RJ45 (LAN, PoE, IP)
- Service Port: 1x USB Type-A
Power
- PoE: Yes (powered from a PoE network switch)
- External PSU: 12V/1.25A
Weight and Dimensions
- Dimensions: 128mm (W) x 25mm (H) x 108mm (D)
- Net Weight: 360g
