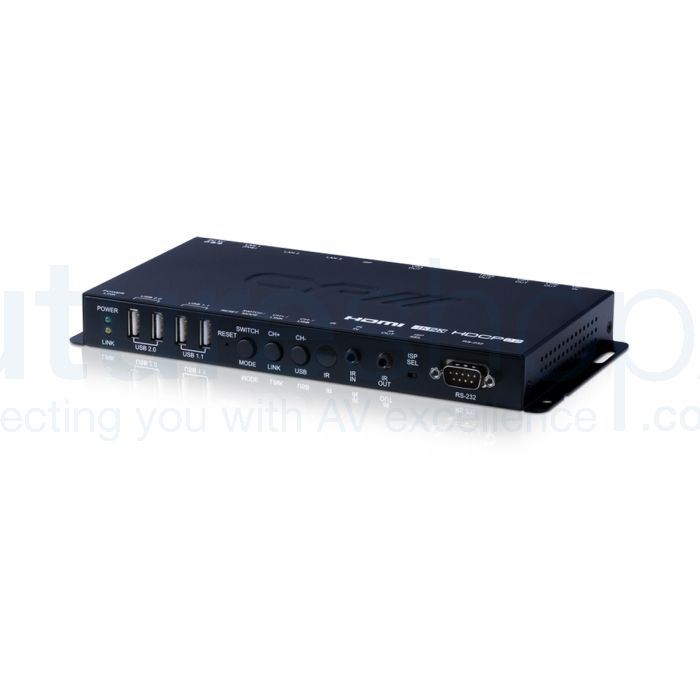

CYP IP-7000RX HDMI or VGA Video Extender over IP/CEC/PoE
The IP-7000RX by CYP can reconfigure video inputs to HDMI, VGA, Toslink or USB-B, up to 4K/60Hz, and also supports HD audio formats like LPCM, Dolby Digital and DTS.
What CYP say
The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are endless. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.
Control is via Telnet, IR Remote, WebGUI and RS-232 commands with On-screen display (OSD) feedback messaging.
Features
- HDCP 2.2, HDMI & DVI compatible with HDMI and VGA inputs and outputs
- Supports video transmission over IP up to 100m
- Supports input resolutions up to 4K2K@30Hz (RGB4:4:4) or 4K2K @ 60Hz (YUV 4:2:0)
- Supports pass through of HD audio formats (LPCM, Dolby® Digital and DTS®)
- Independant Audio Transmission
- Features 2 x USB 1.1 and 2 x USB 2.0 ports
- Supports microphone input on receiver unit
- Control via OSD, Telnet, Web GUI, IR Remote and RS-232
Specification
- Inputs
- 1x RJ45 [1x PoE HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Microphone]
- 1x 9pin Dsub [1x RS-232 Data]
- Outputs
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 15pin Dsub [1x VGA RGBHV]
- 2x RJ45 [2x LAN Serving]
- 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
- 1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital]
- 4x USB Type B [4x USB Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- POE PSU- PoE
- PSU- 5V/2.6A
- Dimensions- 108mm [W] x 231mm [D] x 25mm [H]
- Net Weight- 670g
- Gross Weight- 1140g
About CYP
CYP's vision is simple, to deliver market leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.
The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.
From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry leading after sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
- Inputs
- 1x RJ45 [1x PoE HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Microphone]
- 1x 9pin Dsub [1x RS-232 Data]
- Outputs
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 15pin Dsub [1x VGA RGBHV]
- 2x RJ45 [2x LAN Serving]
- 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
- 1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital]
- 4x USB Type B [4x USB Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- POE PSU- PoE
- PSU- 5V/2.6A
- Dimensions- 108mm [W] x 231mm [D] x 25mm [H]
- Net Weight- 670g
- Gross Weight- 1140g
