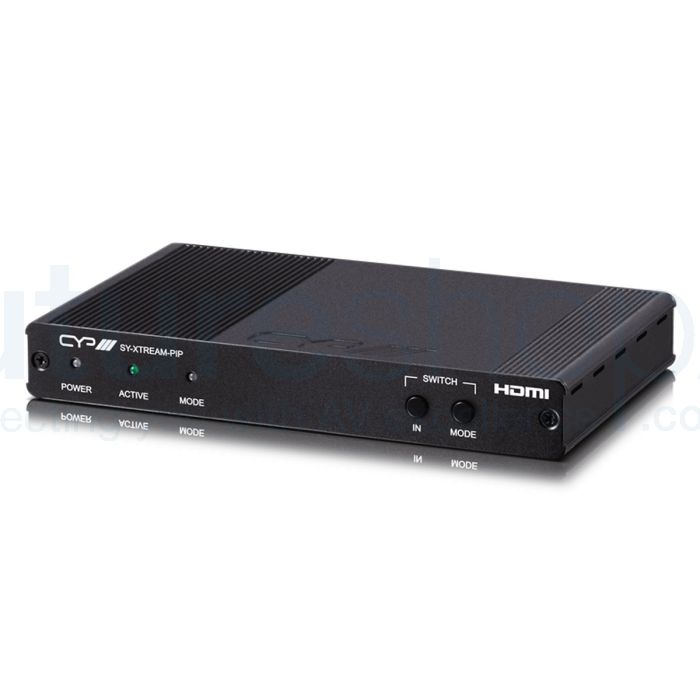

CYP SY-XTREAM-PIP UHD+ Dual HDMI to USB Video Capture with PIP
£548.18 £456.82
SKU
CYP SY-XTREAM-PIP
Free UK Delivery
5 Years
New
48 Hours
The SY-XTREAM-PIP HDMI to USB video capture / recorder with HDMI bypass can support resolutions up to 18Gbps (600Mhz) 4K UHD with HDR (via the HDMI bypass pathway) while simultaneously streaming the audio and video signal at 1080p to the USB connected PC for capture and re-broadcast.
Special video timing stabilisation feature helps to ensure that the USB capture stream won't lock up or drop even if the HDMI input source is intermittent or disconnected. This makes your live streaming stable and non-stop.
CYP SY-XTREAM-PIP UHD+ Dual HDMI to USB Video Capture with PIP
The SY-XTREAM-PIP HDMI to USB video capture / recorder with HDMI bypass can support resolutions up to 18Gbps (600Mhz) 4K UHD with HDR (via the HDMI bypass pathway) while simultaneously streaming the audio and video signal at 1080p to the USB connected PC for capture and re-broadcast.
Special video timing stabilisation feature helps to ensure that the USB capture stream won't lock up or drop even if the HDMI input source is intermittent or disconnected. This makes your live streaming stable and non-stop.
USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat or streaming software, including the free OBS (Open Broadcast Software) streaming software which is available for Windows, macOS and Linux. The SY-XTREAM-PIP is powered directly by the USB 3.0 port so an external psu is not required (A Y-cable is required when connecting via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the 3rd party software used.
Features
- 2 HDMI inputs: input 1 resolution up to 4K@60, input 2 up to 1080p@60
- 1 HDMI bypass output (Follow source up to 4K@60)
- Configurable analogue audio pathway: Mic; Line
- 2 HDMI inputs: input 1 resolution up to 4K@60, input 2 up to 1080p@60
- 1 HDMI bypass output (Follow source up to 4K@60)
- USB3.0 (Type-B to Type-A) connected to PC for data transmission.
- Mode select button is designed for changing the layout of video sources
- Audio auto switch for priorities audio insertion or defaults
- Audio Mixer for provide flexible audio feature for mixing analog mic in with HDMI input audio
- PC software available for detail control and setting
Specification
- Inputs:
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Switchable analogue audio Stereo(L/R) / Microphone]
- Outputs:
- 1x HDMI [1x HDMI (bypass) Uncompressed AV and Data]
- 1x USB 3 Type B [1x Power & Data]
- PSU: USB powered
- Dimensions: 180mm [W] x 103mm [D] x 25mm [H]
- Net Weight: 360g
- Gross Weight: 560g
About CYP
CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.
The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.
From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
- Inputs:
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Switchable analogue audio Stereo(L/R) / Microphone]
- Outputs:
- 1x HDMI [1x HDMI (bypass) Uncompressed AV and Data]
- 1x USB 3 Type B [1x Power & Data]
- PSU: USB powered
- Dimensions: 180mm [W] x 103mm [D] x 25mm [H]
- Net Weight: 360g
- Gross Weight: 560g
