Excel CAT6a (U/FTP) Unscreened Data Cable 100m

£79.99 £66.66
SKU
EXCEL-CAT6A-100M
12 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Each cable consists of two sets of two pairs are wrapped together in an "S" configuration with high quality, strong, aluminium/polyester foil tape providing screening for each pair.

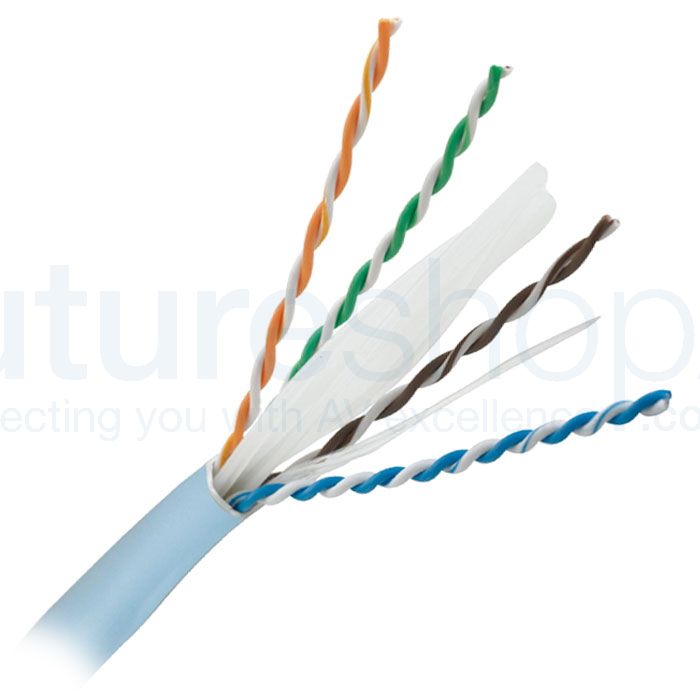

Excel CAT6a (U/FTP) Unscreened Data Cable 100m



Excel Category 6A – Augmented Category 6 – cables, and associated connectors, take the performance capabilities of copper infrastructure to new levels. The cable has been designed to exceed the ISO/IEC, TIA and CENELEC for Category 6A/Augmented Category 6 component requirements. This delivers Class EA/ Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet. Each cable consists of two sets of two pairs are wrapped together in an "S" configuration with high quality, strong, aluminium/polyester foil tape providing screening for each pair. The "S" Foil configuration ensures separation of the pairs that ensures the performance. By using two sets of two pairs has resulted in a reduced diameter and weight cable.

The smaller cable diameter has reduced the cable cross‐sectional area by 14.5%. This design change has been instigated to benefit the installer and end user in many direct and indirect ways. Reducing the size and weight means the cable occupies less space in the containment which in turn improves airflow in under floor installations. Less weight means that the containment can be of lighter construction. It also means that handling the cable on site is easier. Smaller diameter cable means that there is waste packaging to dispose of. The individual pairs are set to different lay lengths to ensure optimum performance.

To assist with handling and installation the cable is supplied on 500m reels. Excel Category 6A cables are jacketed in an Ice Blue low smoke zero halogen (LSOH) compound compliant with flame retardant standards as defined in IEC 60332‐1, and smoke emission standards IEC61034. Supplied on 500 metre plywood drums, each cable has a print legend identifying the specification, part code and sequential metre marking which counts down from 500 metres to 1 metre, on each drum to reduce waste.



Features:

  • Excel CAT6a (U/FTP) Unscreened Data Cable
  • Length: 100m
  • Category 6a compliant
  • Specified to 500MHz
  • Supports 10 Gigabit Ethernet Application
  • "S" foil screen
  • Low Smoke Zero Halogen Outer Sheath
  • No.2 cabling sytem by market share, as reported by BSRIA
  • 25 Year System Warranty

Specifications:

  • Conductor: 23AWG, Solid Plain Copper
  • Insulation: Foamed Polyethylene
  • Screen applied to 2 pairs unit: Aluminium Foil Tape ‐ wrapped in an "S" shape around the 2 pairs
  • Outer Sheath: Flame resistant, Low Smoke Zero Halogen
  • Outer Diameter: 6.70 mm +/‐ 0.3mm
  • Installation Temperature Range: 0°C to +60°C
  • Operating Temperature Range: ‐20°C to +60°C
  • Minimum Bend Radius during installation: 54mm
  • Minimum Bend Radius during operation: 27mm
  • Flame Retardance IEC: 60332‐1
  • Smoke Emission IEC: 61034
  • Dielectric Strength: AC 1.7 kV for 2s
  • NVP: 76%
  • DC Loop Resistance: < 14.5 Ω/100 m
  • Mutual Capacitance:
  • Construction IEC 61156‐5 ed2.0 Augmented Category 6A
  • Weight: 500m Drum 29.72 Kg
  • Drum Dimension 500m (DxW) 380mm x 484mm

Specifications:

  • Conductor: 23AWG, Solid Plain Copper
  • Insulation: Foamed Polyethylene
  • Screen applied to 2 pairs unit: Aluminium Foil Tape ‐ wrapped in an "S" shape around the 2 pairs
  • Outer Sheath: Flame resistant, Low Smoke Zero Halogen
  • Outer Diameter: 6.70 mm +/‐ 0.3mm
  • Installation Temperature Range: 0°C to +60°C
  • Operating Temperature Range: ‐20°C to +60°C
  • Minimum Bend Radius during installation: 54mm
  • Minimum Bend Radius during operation: 27mm
  • Flame Retardance IEC: 60332‐1
  • Smoke Emission IEC: 61034
  • Dielectric Strength: AC 1.7 kV for 2s
  • NVP: 76%
  • DC Loop Resistance: < 14.5 Ω/100 m
  • Mutual Capacitance:
  • Construction IEC 61156‐5 ed2.0 Augmented Category 6A
  • Weight: 500m Drum 29.72 Kg
  • Drum Dimension 500m (DxW) 380mm x 484mm
