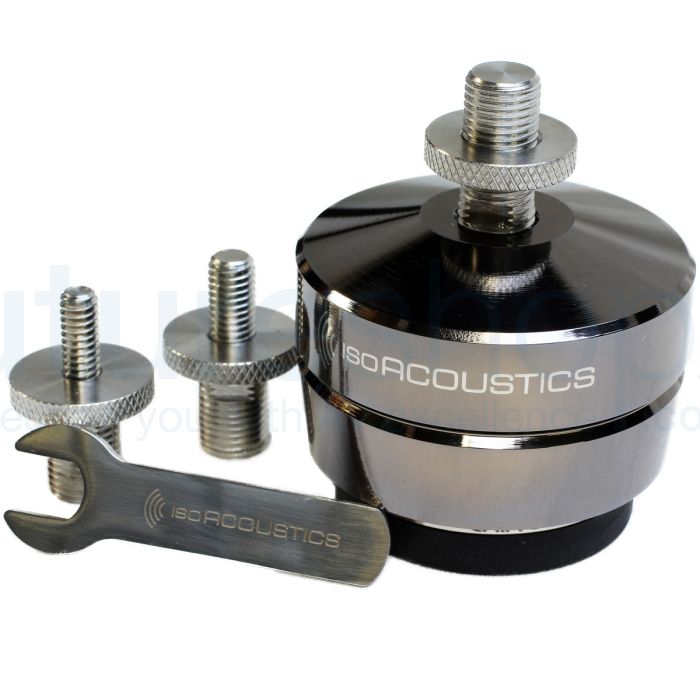

IsoAcoustics Gaia Series Threaded Isolation Feet

IsoAcoustics Gaia Series Threaded Isolation Feet

These multi-award-winning isolators by IsoAcoustics could be a significant step in unlocking the true potential of your setup. With three different models to cover a range of weights, as well as a handy calculator on their website (see below), these isolators will boost clarity and widen your sound stage.

Please Note: the Gaia isolators come with thread adaptors for the 3 most common thread sizes which fit the majority of speakers. If the required thread size for your speakers is not included, then please contact Future Shop and we can supply alternative thread sizes with your Gaia's.

What GAIA say

The GAIA isolators are machined units that incorporate IsoAcoustics’ patented design to provide a high degree of speaker isolation, while resisting lateral movement and oscillations, to maintain alignment with the listening position. Internal reflections from the hard supporting surface are attenuated resulting in greater sound clarity and openness. The soundstage blossoms to open up a three-dimensional image of natural, spatial sounds.

Optimal results are heard by installing these units with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces, lift and place the speakers into position as the GAIA lower isolator will adhere to the supporting surface.

“When a speaker is placed on a hard surface, secondary internal reflections result. Any artefacts of this smear that is similar in the two channels are perceived to be in the centre, causing the sound stage to collapse. The GAIA series of isolators eliminates this smear resulting in a larger 3-dimensional sound stage.”

Gaia III

Crafted with the vision of providing extraordinary acoustic performance, the GAIA III is the union of aesthetic visual design and acoustic engineering. The small compact design delivers unbelievable acoustic isolation that will bring out clarity and openness from your speaker as you’ve never heard.

Designed for floor standing speakers and subwoofers weighing up to 70 lbs (32 KG), the GAIA III will provide more openness and clarity. Structural borne noise is greatly reduced while internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness.

Optimal results are achieved by installing the GAIA isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces. The GAIA III provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Lift and place the speakers into position as the GAIA lower isolators will adhere to the supporting surface.

The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.

Gaia II

GAIA II is designed for floor standing speakers and subwoofers weighing up to 120 lbs (54Kg). Finished in an elegant machined dark chrome metal housing, the GAIA II incorporates IsoAcoustics’ patented design principles to deliver extraordinary acoustic results. GAIA II provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness.

Designed for floor standing speakers weighing up to 120 lbs or 54kg, the GAIA II will provide more openness and clarity, while reducing structural borne noise.

Optimal results are achieved by installing the GAIA isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces. Lift and place the speakers into position as the GAIA lower isolators will adhere to the supporting surface.

The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.

Gaia I

GAIA I isolators are finished with a machined stainless steel housing with an elegant dark chrome finish. Incorporating IsoAcoustics patented design principles, the GAIA I provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness. The GAIA I will reveal clarity and openness from your speakers as you’ve never heard.

Designed for floor standing speakers and subwoofers with a maximum weight of 220lbs (100kg), the GAIA I will provide more openness and clarity while reducing structural borne noise.

Optimal results are achieved by installing the GAIA isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces. Lift and place the speakers into position as the GAIA lower isolators will adhere to the supporting surface.

The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.

To check which Gaia is correct for your equipment, please CLICK HERE or use the calculator immediately below. (please select the 'Floor Standing Speaker' category option for GAIA recommendations.)

Specification

• Gaia III - Supports equipment up to 70 pounds (32 KG) // Dimensions per isolator - 1.7" x 1.5" (43 x 39mm)
• Gaia II - Supports equipment up to 121 pounds (55 KG) // Dimensions per isolator - 2" x 1.7" (51 x 43mm)
• Gaia I - Supports equipment up to 220 pounds (100 KG) // Dimensions per isolator - 2.5" x 1.9" (62 x 49mm)
• Quantity: 4 per box
• Thread sizes included: M8, 1⁄4-20", M6 (Gaia III & II), M12 (Gaia I)

About IsoAcoustics

IsoAcoustics Inc. has been manufacturing and distributing isolation products in the audio industry since January 2012. The patented IsoAcoustics technology is based on years of experience in the design and construction of radio and television studios. The driving force is Dave Morrison, closely involved in planning and building radio and television studios at the Canadian Broadcasting Corporation for close to 20 years. Dave Morrison was part of the design team faced with the challenges of building the world’s largest multi-media centre in Toronto: over 1.72 million square feet, with recording studios for drama, music, and chamber ensembles, special effects, radio and television shows.

Based on patented designs, IsoAcoustics has developed products for the Professional Audio and home project studio, the HiFi and consumer market, and large applications that include Pro Audio, HiFi and Live sound. IsoAcoustics distribution is structured with separate channels for Pro Audio and Home Audio, with product development within these channels. In this relatively short period of time, IsoAcoustics has grown rapidly and now sells in over 60 countries.

IsoAcoustics speaker stands to provide superior acoustic isolation and enhance the sound clarity of any speakers including studio monitors, home audio systems and sound reinforcement.
