Kordz PRS SlimCat Cat6A U/FTP Network Patch Cord
The Kordz PRS SlimCat Cat6A U/FTP Network Patch Cord is a slim, highly flexible shielded patch cable for 10GBase-T professional and custom network applications. At 4.8mm across, Kordz say it is around 20% slimmer than a conventional Cat6A patch cord, making cable bundles less bulky and easier to manage. It uses stranded 28AWG oxygen-free copper conductors. Each twisted pair is individually shielded with aluminium Mylar foil, and every length exceeds the ANSI/TIA-568.2-D Category 6A standard from 1 to 500MHz.
The compact RJ45 connector is gold-plated and shielded, with a latch tab rated to 2,000 bend cycles, which Kordz say eliminates the need for cable replacements due to latch breakage. The recommended total mounting depth is just 40mm. It supports PoE, PoE+ and PoE++ (IEEE 802.3bt Type 3 and 4), uses T568B wiring and has a UL444 CMG fire-rated PVC jacket. Each cable is individually performance tested, with its own unique downloadable test report.

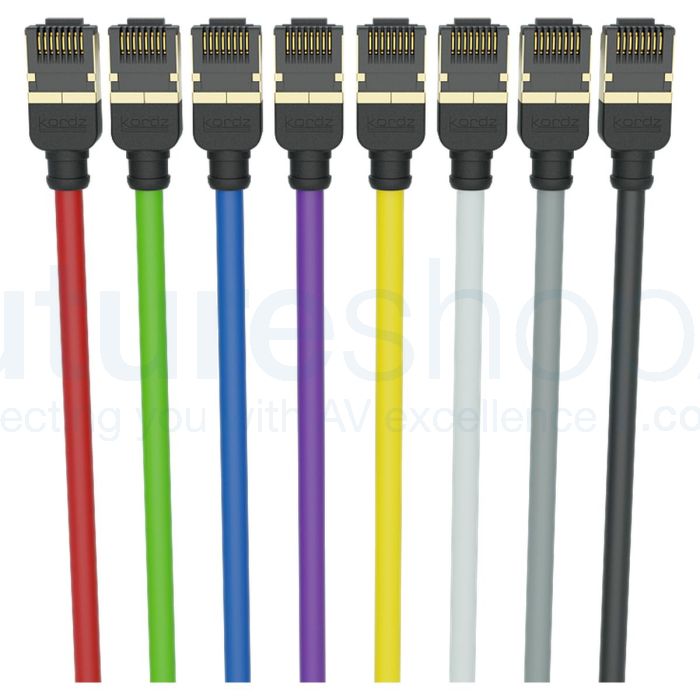

It comes in 16 lengths from 0.15m to 30m and eight colours: black, blue, green, grey, purple, red, white and yellow. Lengths up to 10m are Category 6A component tested, and 15m and longer are Category 6A channel tested. It is covered by the Kordz Lifetime Warranty.
What Kordz say about the PRS SlimCat Cat6A Patch Cord
Kordz PRS SlimCat™ Cat6A Patch Cords are engineered to be flexible, slim and ideal for fast Gigabit Ethernet in high performance AV installations with stranded 28AWG copper. The Kordz PRS SlimCat™ Patch Cord features a custom designed compact RJ45 connector (Patent Pending) with a robust 2000 cycle latching tab, is designed to be the most resilient connector in the world. Its slim profile and minimal operational depth challenges what’s possible in high performance installations.
All Kordz PRS SlimCat™ Patch Cords exceed ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 500MHz and individually performance tested with a unique downloadable test report.
Product Outline
- Exceeds ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 500MHz
- 28AWG stranded U/FTP Category 6A shielded slim-profile network patch cord
- Each cable is individually performance tested with its own unique downloadable test report
- Anti-corrosion gold-plated shielded connector
- Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBASE-T, PoE, PoE+ & PoE++
- UL 444 (CMG) fire-rating
- 568B wire connection configuration
- Overall diameter of 4.8mmØ
- World’s smallest minimal operational depth and most flexible CAT6A U/FTP patch cord
- Available in 8 Colours – Black, Blue, Grey, Green, Purple, Yellow, Red & White
- Patent Pending
Specifications
General
- Brand: Kordz
- Model: PRS SlimCat Cat6A U/FTP Network Patch Cord (PRS-PC)
- Type: Cat6A U/FTP shielded network patch cable
- Lengths: 0.15m, 0.25m, 0.5m, 0.75m, 1m, 1.5m, 2m, 2.5m, 3m, 4m, 5m, 7.5m, 10m, 15m, 20m, 30m
- Colours: Black, Blue, Green, Grey, Purple, Red, White, Yellow
- Connectors: RJ45 to RJ45, gold-plated, shielded
- Wiring: T568B
- Fire Rating: UL444 CMG
- Warranty: Kordz Lifetime Warranty
Performance
- Applicable Standards: ANSI/TIA-568.2-D, IEC 11801, EN 50173
- Performance Standard: ≤ 10.0m Category 6A component tested, ≥ 15.0m Category 6A channel tested
- Certified Data Rate: 10 Gbps
- Supported Data Rate: ≥ 10 Gbps
- Certified Bandwidth: 1 to 500 MHz
- Supported Bandwidth: ≥ 500 MHz
- Network: 10GBASE-T (IEEE 802.3an)
- Power over Ethernet: PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), PoE++ (IEEE 802.3bt Type 3 and 4)
Construction
- Conductors: 28 AWG oxygen-free stranded copper
- Conductor Insulation: Skinned foam PE
- Shielding: Individual pairs Al-Mylar shielded, 100% coverage
- Cable Jacket: UL444 CMG fire-rated PVC composite
- Connector Material: Nylon composite
- Contact Material: Solid oxygen-free copper, 50µin gold-plated
- Contact Type: 3-prong for solid or stranded conductors
- Strain Relief: Injection-moulded PVC
Mechanical
- Cable Diameter: 4.8mm (0.19in)
- Maximum Cable Pulling Tension: 80 kgf/cm²
- Cable Bend Radius: 20.0mm (0.79in)
- Recommended Total Mounting Depth: 40.0mm (1.57in)
- Latch Tab: rated to 2,000 bend cycles
- Mating Cycles (max.): 1,000 cycles
- UL Temperature Rating: 75°C
Electrical
- Conductor Resistance: 223 Ω/km
- Insulation Resistance: 10 MΩ min. at 100V DC
- Characteristic Impedance: 100 Ω
- Dielectric Strength: 500V AC / 1 min
Product Codes
- Format: K33946-[length]-[colour], e.g. K33946-0100-BK is 1m black
- Length codes: 0015 (0.15m), 0025, 0050, 0075, 0100 (1m), 0150, 0200, 0250, 0300, 0400, 0500, 0750, 1000, 1500, 2000, 3000 (30m)
- Colour codes: BK Black, BL Blue, GN Green, GY Grey, PP Purple, RD Red, WH White, YL Yellow
