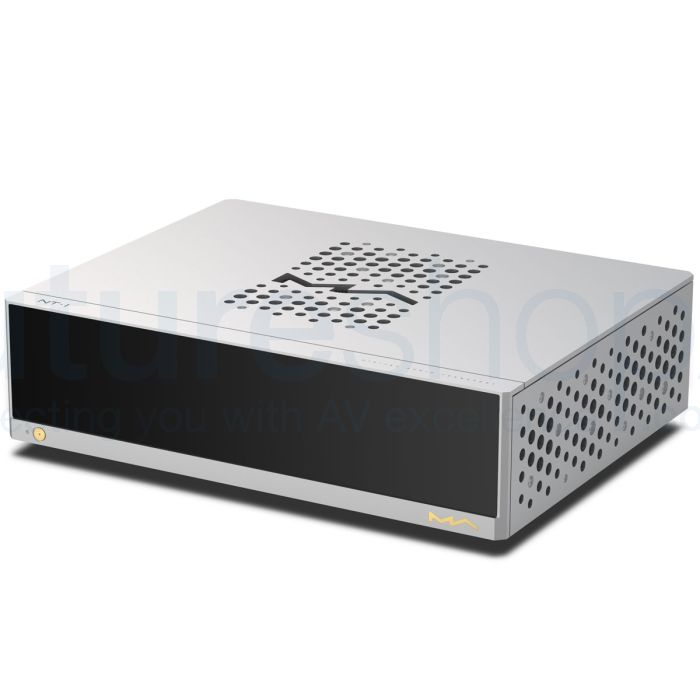

Matrix Audio NT-1 Digital Audio Transport

Matrix Audio NT-1 Digital Audio Transport

The Matrix Audio NT-1 is designed as a central digital hub for serious music systems, bringing together network streaming, local playback, and high-performance digital output in a single, purpose-built transport. Built on the same streaming hardware platform as Matrix Audio’s M Series, it offers a powerful processing core, a refined user interface, and a large, high-resolution display that makes browsing and playback feel fluid and intuitive.

From a performance standpoint, the NT-1 focuses heavily on timing accuracy and noise control. An advanced internal clock system with femtosecond-level precision feeds an ultra-low phase noise RF synthesiser, while support for an external 10MHz reference clock allows further system optimisation when paired with a compatible master clock. A full linear power supply with separate transformer windings for the digital core and USB DAC interface helps keep noise levels low, supporting a stable and transparent signal path across all outputs.

Connectivity is extensive and flexible. Optical, coaxial, AES/EBU, IIS-LVDS, and an electrically isolated USB DAC output allow the NT-1 to partner with a wide range of DACs and active speakers, while Ethernet and SFP networking options support robust streaming setups. Local playback is supported via USB storage, NAS, or an internal NVMe SSD, with network sharing and smart trigger control adding everyday convenience. For listeners who want a dedicated digital source that prioritises signal integrity, usability, and long-term system growth, the NT-1 is a strong foundation for a high-performance streaming system.

Here is what Matrix Audio say about the NT-1

Matrix Audio proudly presents the NT-1, a groundbreaking masterpiece designed for audiophiles in pursuit of perfection. This high-end digital audio transport unlocks the vast world of network streaming, extending beyond the limitations of traditional audio sources, and infuses your audio system with new energy.

Matrix Audio introduces a new family design language, equipped with the same Hi-Fi streaming hardware as the M Series. With a powerful core upgrade and a next-level display enhancement, it delivers a brand-new experience that captivates both your ears and eyes.

The ever-evolving MA Player Hi-Fi Streamer OS and MA Remote App seamlessly adapt to both iOS and Android devices. Whether on a smartphone or a tablet, enjoy a smooth and intuitive interactive experience.

Enjoy Local & Cloud Music

Mount your NAS drive to the device, allowing you to create a music library directly from your NAS. If your music is stored in the cloud, such as Baidu Netdisk, it can also be mounted directly on the device.

Dual USB 3.0

Two USB 3.0 Type A ports allow you to connect external storage or CD drives to the TT-1 for copying, ripping and playback.

SSD Storage - Fast And Quiet

The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer..

Shareable Internal Storage

With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.

Smart Wake Up & Trigger Control

Whether playing local music or online streaming audio, the device can be automatically woken up. And the back-end DAC or amplifier can be started through the trigger connection, which is automatic and convenient without any manual operation.

Excellent Clock System

This clock system derives from the flagship model of Matrix Audio, which has dual modes. In internal clock mode, the femtosecond clock provides a reference for the RF synthesizer, outputting a highly stable, low-phase-noise audio clock. In external clock mode, the incoming clock signals become the reference for the RF synthesizer, outputting an audio clock that is highly stable, low-phase-noise, and phase-synchronized with the input clock. When paired with Matrix Audio SC-1 audio-grade clock source, it can further tap into the audio performance potential of the device and move to an even higher level.

Multiple Interfaces

Optical, coaxial, AES/EBU and IIS-LVDS output ports are available, which can easily connect to various digital audio devices such as DACs and amplifiers to meet your diverse audio connection needs. If you connect it to an active speaker with digital input, you can also enable the digital volume function, no need to add an additional speaker controller, and the volume can be adjusted easily.

Ensure Pure Audio Transmission

NT-1 features an audio-specific USB DAC interface with electrical isolation. It not only deeply optimizes transmission noise, but also isolates the ground ware of USB port from the device ground wire, fundamentally reducing noise and interference during audio transmission and ensuring the purity of the audio signal.

It is worth mentioning that the linear power supply of NT-1 is unique, with independent windings and a precise low-noise regulator circuit, providing the USB DAC interface with a dedicated power supply isolated from the digital part, further ensuring the stability and low noise of audio transmission, and bringing you the ultimate Hi-Fi experience.

Flexible Connection Options

With different SFP modules, you can freely expand a optical fiber or Ethernet ports as needed. When used with audio grade network switch from Matrix Audio, it can create a more efficient and stable network connection to meet the needs of Hi-Fi scenarios.

Full Linear Power

The power supply system is built by a 60W toroidal transformer and multiple LDOs. The power for the digital audio processing core and the USB DAC interface are supplied by two independent windings of the transformer, ensuring stable operation of each part and effectively reducing noise interference.

Specifications
