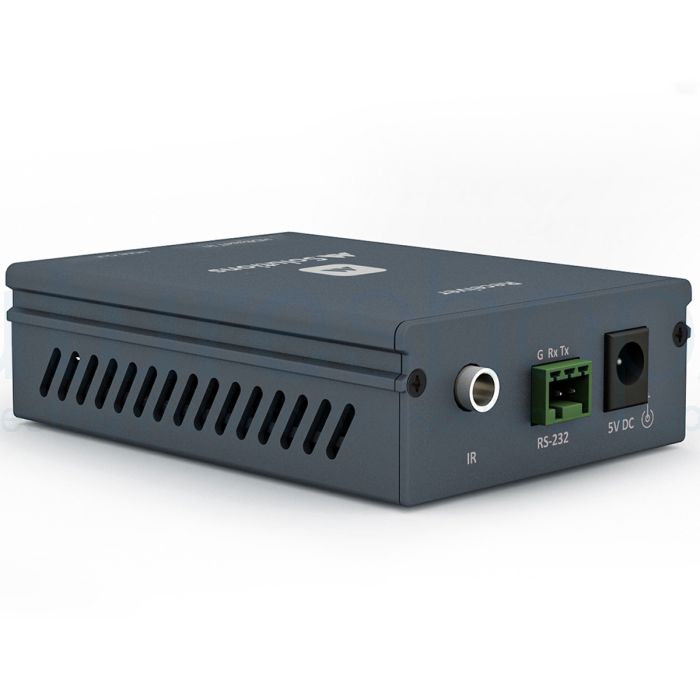

MSolutions MS-310U1RI HDBaseT Extender Set - 4K to 90m (1080p to 100m)

£549.37 £457.81
SKU
MS-310U1RI
Free UK Delivery
12 Months
New
3 - 5 Days
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The MSolutions MS-310U1RI is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 90m at 4K UHD (10.2Gbps), and 100m at 1080p or lower resolutions.

MSolutions MS-310U1RI HDBaseT Extender Set - 4K to 90m (1080p to 100m)

The MSolutions MS-310U1RI is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 90m at 4K UHD (10.2Gbps), and 100m at 1080p or lower resolutions. A single USB2.0 channel allows for bi-directional USB client to host connectivity for a variety of applications. The unit also features RS-232 serial pass-through and single channel IR pass-through from TX to RX, or RX to TX.

Features

  • Uncompressed extension of HDMI at resolutions up to 4K 60Hz 4:2:0 / 4K 30Hz 4:4:4 using HDBaseT technology
  • 4K signal extension to 90m over single CAT including HDR formats suppported under 10.2Gbps
  • 1080p or lower video resolutions up to 100m over single CAT
  • Supports HDMI pass-through all known HDMI audio formats including Dolby Atmos / DTS:X
  • 1x USB2.0 channel for KVM connectivity of USB devices across the link – max 200Mbps data rate pass-through
  • Flexible USB extension for: USB2.0 cameras, touch screens, smart boards, hard drivers, games controllers, USB audio devices, printers, scanners and HID’s (mouse or keyboard)
  • Bi-directional RS-232 serial pass through
  • Single channel 5V IR pass-through (TX to RX, or, RX to TX)
  • CEC (Consumer Electronics Control) pass through
  • HDCP2.2 compliant

Specification

  • Video connectivity TX: 1x HDMI input (female), 1x HDBaseT output (RJ45 keystone)
  • Video connectivity RX: 1x HDBaseT input (RJ45 keystone), 1x HDMI output (female)
  • USB connectivity (TX & RX): 1x USB Type A (female)
  • IR connectivity (TX & RX): 1x 3.5mm stereo jack (female) – IR TX or IR RX
  • RS-232 connectivity (TX & RX): 1x 3-pin phoenix connector, block included
  • Power supply: 2x 5V 2A DC
  • Power consumption: 8W
  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm
  • Individual unit weight: 0.1kg
  • Package dimensions (W x D x H): 160mm x 130mm x 75mm
  • Package weight: 0.5kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1x MS-310U1RI transmitter
  • 1x MS-310U1RI receiver
  • 2x 5V 2A power supply with US, UK & EU territory clips
  • 1x IR receiver (5V) with 1m cable
  • 1x IR transmitter (5V) with 1m cable
  • 1x USB-A (male) to USB-A (male) cable – 0.5m
  • 1x USB-A (male) to USB-A (female) cable – 0.5m
  • 2x HDMI cable (18Gbps) – 0.5m
  • 2x Surface mounting brackets
  • 1x User Guide

About MSolutions

The concept for the first MSolutions products for HDBaseT networks was conceived in 2016. Since then, they have developed state of the art multimedia and switching solutions for leading companies and integrators in the ProAV and across markets including public sector. The MSolutions team has been directly involved in HDBaseT development, support and sales since the standard was introduced in 2010. Their R&D team develops advanced, high quality systems that make media networks based on HDBaseT easier to install and more stable and enjoyable for end users.

MSolutions is committed to developing creative, reliable and value-oriented audio/video solutions and distributing them worldwide with an uncompromising level of service and support.

MSolutions takes great pride in the quality of its product range and offers a reliable service with timely technical support for customers in the field. When their customers purchase their products, they know they are getting a high quality, reliable and high performance product.

MSolutions consider the relationships with their customers to be crucial to their success. Every product carries a full guarantee and their commitment to providing a great service.

As MSoltuions continue to transform ideas into reality, they look forward to supporting you and your business needs today, tomorrow and beyond.

Specification

  • Video connectivity TX: 1x HDMI input (female), 1x HDBaseT output (RJ45 keystone)
  • Video connectivity RX: 1x HDBaseT input (RJ45 keystone), 1x HDMI output (female)
  • USB connectivity (TX & RX): 1x USB Type A (female)
  • IR connectivity (TX & RX): 1x 3.5mm stereo jack (female) – IR TX or IR RX
  • RS-232 connectivity (TX & RX): 1x 3-pin phoenix connector, block included
  • Power supply: 2x 5V 2A DC
  • Power consumption: 8W
  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm
  • Individual unit weight: 0.1kg
  • Package dimensions (W x D x H): 160mm x 130mm x 75mm
  • Package weight: 0.5kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1x MS-310U1RI transmitter
  • 1x MS-310U1RI receiver
  • 2x 5V 2A power supply with US, UK & EU territory clips
  • 1x IR receiver (5V) with 1m cable
  • 1x IR transmitter (5V) with 1m cable
  • 1x USB-A (male) to USB-A (male) cable – 0.5m
  • 1x USB-A (male) to USB-A (female) cable – 0.5m
  • 2x HDMI cable (18Gbps) – 0.5m
  • 2x Surface mounting brackets
  • 1x User Guide
